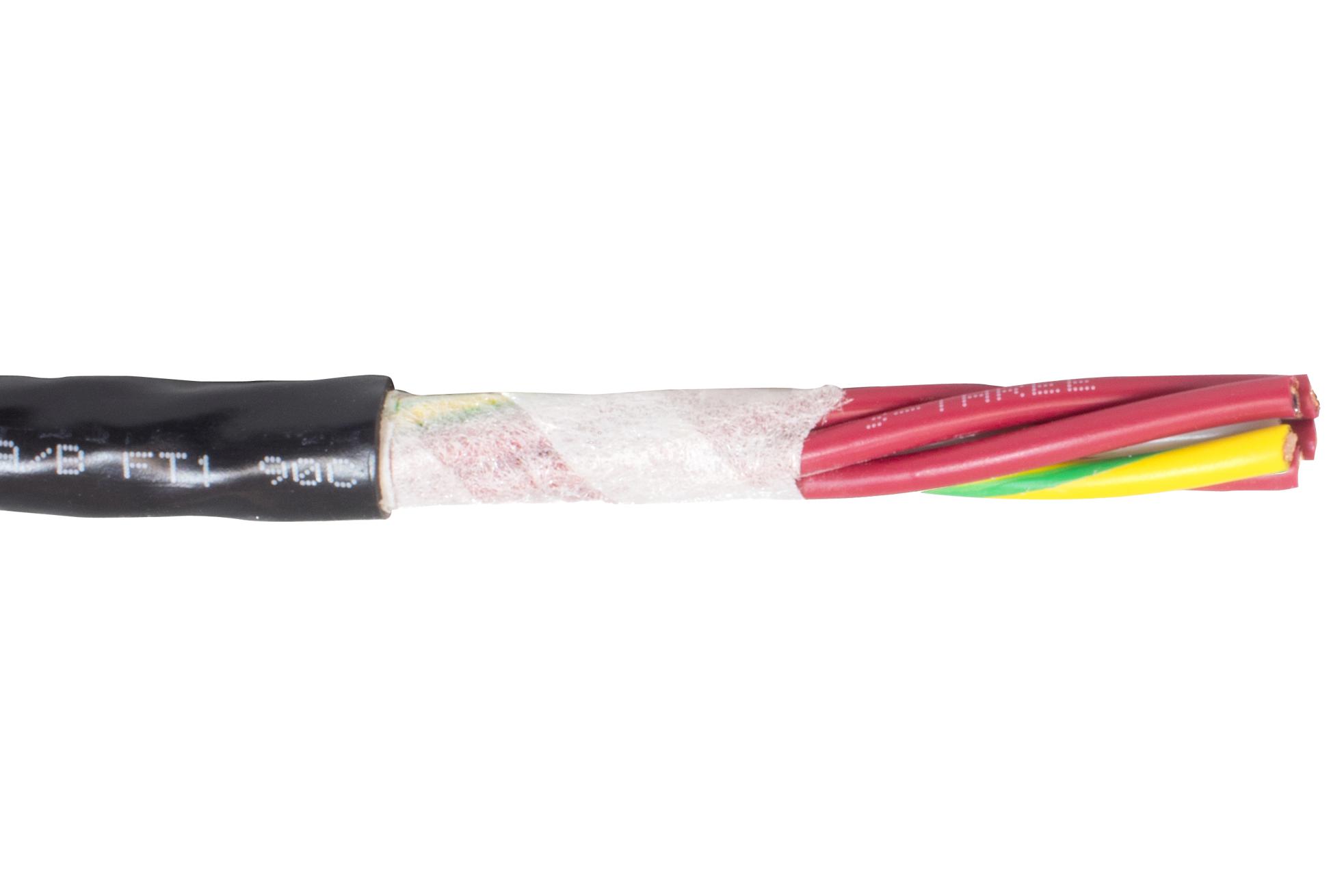

ALPHA WIRE 852607BK005 26 AWG Continuous Flex Cable
The ALPHA WIRE 852607 is a 7-conductor, 26 AWG continuous flex hook-up wire designed for demanding applications requiring exceptional flexibility and durability. Constructed with 19/38 bare copper conductors insulated with nominal 0.022" PVC, the cable offers reliable performance in dynamic environments. The oil-resistant PVC jacket provides added protection and longevity. This cable is UL and CSA rated, ensuring compliance with industry standards, and is RoHS compliant, reflecting Alpha Wire's commitment to environmental responsibility. It is commonly used in robotics, automated machinery, and other applications where frequent bending and flexing are required.
ALPHA WIRE 852607BK005 26 AWG Continuous Flex Cable Specifications:
- Conductor AWG: 26 (19/38) AWG
- Insulation Material: PVC
- Insulation Wall Thickness: 0.022"
- Jacket Material: PVC
- Jacket Wall Thickness: 0.035"
- Number of Conductors: 7
- Color Code: Red #1, Red #2, Red #3, Red #4, Red #5, Yellow/Green, Green
- Temperature Range (Static): -40 to 90°C
- Temperature Range (Dynamic): -5 to 90°C
- Bend Radius (Static): 8X Cable Diameter
- Bend Radius (Dynamic): 8X Cable Diameter
- Pull Tension (Max): 16.7 Lbs
- Voltage Rating: 600 VRMS
- Capacitance: 19.6 pF/ft @ 1 kHz
- Inductance: 0.26 µH/ft
- Conductor DCR: 36 Ω/1000ft @ 20°C
- RoHS Compliant: Yes
- UL Style: 10012, 2587
- CSA Rating: C(RU) AWM I/II A/B
- REACH Compliant: Yes
- Packaging (1000 FT): 18 x 12 x 8 inches
- Packaging (500 FT): 12 x 10 x 5 inches
- Packaging (100 FT): 12 x 4.5 x 3.5 inches
