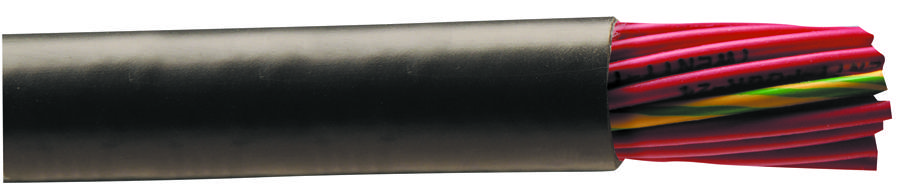

ALPHA WIRE 85605BK005 Control Cable
The ultra-flexible control cable features 16 AWG bare copper conductors with a 0.022-inch PVC insulation wall, protected by an oil-resistant PVC jacket in black. Cabled in 4 twists per foot with core wrap for durability, it conforms to UL 2587, CSA, and VDE standards, rated for 600V and designed for continuous flexing applications. Its temperature range extends from -40°C to 90°C, with a bend radius of 8 times the cable diameter and a maximum pull tension of 106 lbs. Excellent for automation, control panels, and machinery wiring, this cable ensures reliable performance in challenging environments.
ALPHA WIRE 85605BK005 Control Cable Specifications:
- Conductor: 16 AWG bare copper
- Insulation: PVC, 0.022 inch wall
- Jacket: PVC, oil-resistant, 0.035 inch wall, black
- Twists: 4.0 twists/foot minimum
- Bend Radius: 8X cable diameter (static and dynamic)
- Voltage Rating: 600V
- Temperature Range: -40°C to 90°C
- Maximum Pull Tension: 106 lbs
- Conductor Resistance: 0.18 ohms/ft at 20°C
- Capacitance: 29 pF/ft @ 1 kHz
- Inductance: 0.18 µH/ft
- Overall Dimensions: Flange x Traverse x Barrel in inches, e.g., 20 x 11 x 8
- Standards: UL 2587, CSA, VDE, CE RoHS, REACH, California Proposition 65 compliant
Buy the Buy AlphaWire Control Cable Part Number 85605 Online
Purchase the AlphaWire control cable online today to benefit from its high flexibility, durable PVC insulation, and oil-resistant jacket. Rated for 600V and suitable for continuous flexing, this cable is ideal for automation, machinery, and control systems, with a broad temperature range from -40°C to 90°C. Its construction features 16 AWG copper conductors with precise twisting for durability. Buy now to ensure excellent performance in demanding environments, backed by high-quality standards including UL, CSA, and VDE compliance. Quick shipping and competitive pricing await you.
Order your AlphaWire Series85605 flexible control cable today and ensure reliable, high-performance wiring for your automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 85605BK005?
You can click on the BUY or RFQ button to purchase 85605BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 85605BK005?
You can download the 85605BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 85605BK005?
ALPHA WIRE
