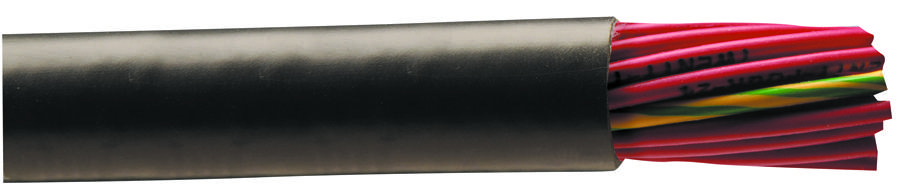

ALPHA WIRE 85812BK005 Control Cable
Alpha Wire 85812 is a flexible, high-quality control cable designed for industrial applications. It's a 12-conductor assembly with AWG 18 bare copper conductors, insulation made of PVC, and a black, oil-resistant jacket. This continuous flex cable supports constant movement with a minimum twist rate of 3 twists per foot and a minimum bend radius of 8 times the cable diameter. Rated at 600V, it features specs aligned with UL, CSA, and CE standards, suitable for dynamic environments requiring reliable electrical performance and durability under various conditions.
ALPHA WIRE 85812BK005 Control Cable Specifications:
- Conductor Material: Bare Copper AWG 18
- Conductor Diameter: 0.052 inches
- Insulation Thickness: 0.022 inches, PVC
- Jacket Thickness: 0.050 inches, Oil-resistant PVC
- Jacket Color: Black
- Jacket Material: PVC with tissue tape separator
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Bend Radius: 8X cable diameter
- Pull Tension: 158 Lbs maximum
- Voltage Rating: 600V
- Capacitance: 30 pF/ft @1 kHz
- Inductance: 0.19 μH/ft
- Conductor Resistance: 6.6 Ω/1000 ft @20°C
- Cable Length Options: 100, 500, 1000 ft
- Standards: UL, CSA, CE compliant
- Environmental Certifications: RoHS 2, REACH, ISO, VDE
- Cable Type: Continuous flex control cable suitable for dynamic industrial conditions
Buy the Buy Alpha Wire Control Cable Part Number 85812BK005 Online
Enhance your industrial setups with Alpha Wire's 85812 control cable, offering superior flexibility, durability, and electrical performance for dynamic environments. Designed with 12 AWG 18 copper conductors, PVC insulation, and a black oil-resistant jacket, this cable ensures safety and reliability at 600V. Compliant with UL, CSA, and CE standards, it is perfect for applications requiring constant movement and resistance to harsh conditions. Purchase online today for fast delivery and exceptional quality in your manufacturing or automation projects.
Buy Alpha Wire 85812 control cable now and ensure reliable flexibility and performance in your industrial applications.
