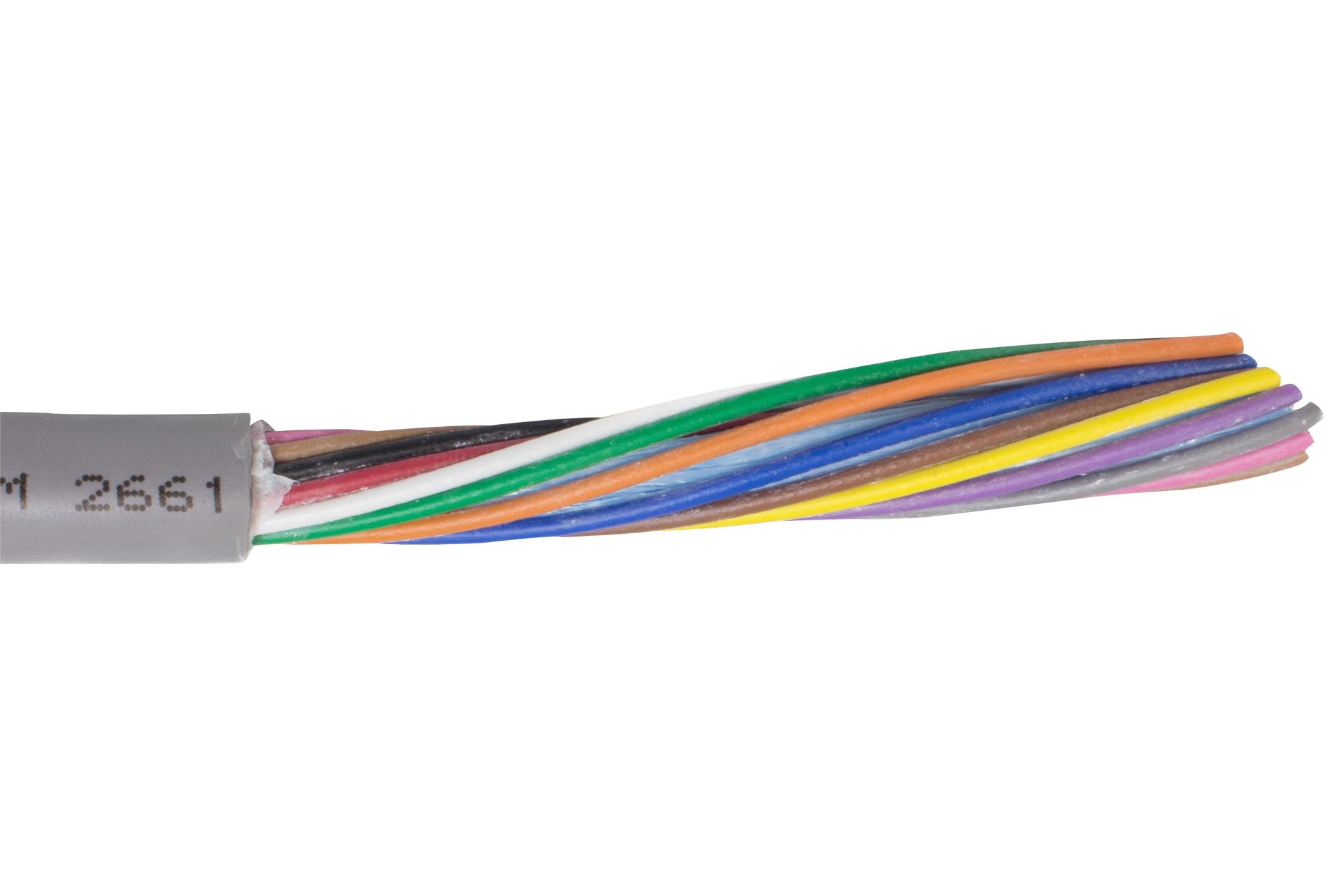

ALPHA WIRE 861612SL005 Data Cable
This is a high-quality, flexible data cable designed for industrial and sensitive electronic applications, featuring 16 AWG tinned copper conductors, PVC insulation, and a durable PVC jacket. It complies with UL, CSA, and CE standards, rated for 300V with excellent electrical and mechanical properties like a bend radius of 8X cable diameter, maximum pull tension of 243 lbs, and sunlight resistance. Suitable for control panels, data transmission, and automation systems, ensuring reliable performance in demanding environments. The cable's construction includes core wrap with nonwoven polyester tape and specified color coding for easy identification.
ALPHA WIRE 861612SL005 Data Cable Specifications:
- Conductors: 16 AWG Tinned Copper
- Insulation Wall Thickness: 0.010 inches PVC, Semi Rigid
- Jacket Thickness: 0.053 inches PVC, SLATE color
- Rated Voltage: 300 V
- Capacitance: 29 pF/ft @1 kHz
- Inductance: 0.15 pH/ft
- Maximum Pull Tension: 243 lbs
- Operating Temperature Range: -10 to 105°C (static), +5 to 105°C (dynamic)
- Bend Radius: 8X cable diameter
- Sunlight Resistance: Yes
- Conductor Resistance: 4.5 Ω/1000ft @20°C
- Package Lengths: 1000 ft, 500 ft, 100 ft
- Compliance: UL, CSA, CE, RoHS, REACH
Buy the Buy Alpha Wire Data Cable Part Number 861612 Online
Purchase Alpha Wire data cable part number 861612 online today to ensure high performance and safety standards for your industrial and electronic projects. This cable features 16 AWG tinned copper conductors with PVC insulation and jacket, rated for 300V, offering excellent electrical and mechanical properties. Its construction includes core wrap with nonwoven polyester tape, color-coded for easy identification, and is compliant with UL, CSA, CE, RoHS, and REACH standards. Ideal for control systems, automation, and data transmission in demanding environments, providing long-lasting reliability.
Get Alpha Wire 861612 today—designed for high durability, flexibility, and reliable data transmission in industrial settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861612SL005?
You can click on the BUY or RFQ button to purchase 861612SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861612SL005?
You can download the 861612SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861612SL005?
ALPHA WIRE
