ALPHA WIRE 86162CYSL005 Flexible Data Cable
This is a high-performance flexible data cable designed for industrial and electronic applications. It features 16 AWG tinned copper conductors with a PVC semi-rigid insulation, rated for 300V. The cable assembly includes cabled components with a nonwoven polyester wrap, foil-based shield with tinned copper drain wire, and a PVC jacket in slate color with a 0.040" wall. It meets UL, CSA, and CE standards, offering excellent sunlight resistance, a temperature range from -10°C to 105°C, and a bend radius of 8x cable diameter. Suitable for control, instrumentation, or communication systems requiring reliable shielding and durability.
ALPHA WIRE 86162CYSL005 Flexible Data Cable Specifications:
- Conductor: 16 AWG (65/34) tinned copper
- Insulation Wall: 0.010 inch PVC, semi rigid
- Jacket Wall: 0.040 inch PVC, slate color
- Jacket Material: PVC, flame retardant, RoHS compliant
- Shield: Aluminum/Mylar tape, 25% overlap, foil facing out
- Drain Wire: 26 AWG tinned copper
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Voltage Rating: 300V
- Bend Radius: 8x cable diameter
- Pull Tension: Max 46 lbs
- Electrical Capacitance: 59 pF/ft @1 kHz
- Ground Capacitance: 106 pF/ft @1 kHz
- Characteristic Impedance: 320 ohms
- Inductance: 0.15 μH/ft
- Conductor Resistance: 4.4 Ω/1000 ft @20°C
- Shield Resistance: 5 Ω/1000 ft @20°C
- Certifications: UL 2661 105°C / 300V, CSA AWM I/II AB 105°C / 300V, CE RoHS, REACH

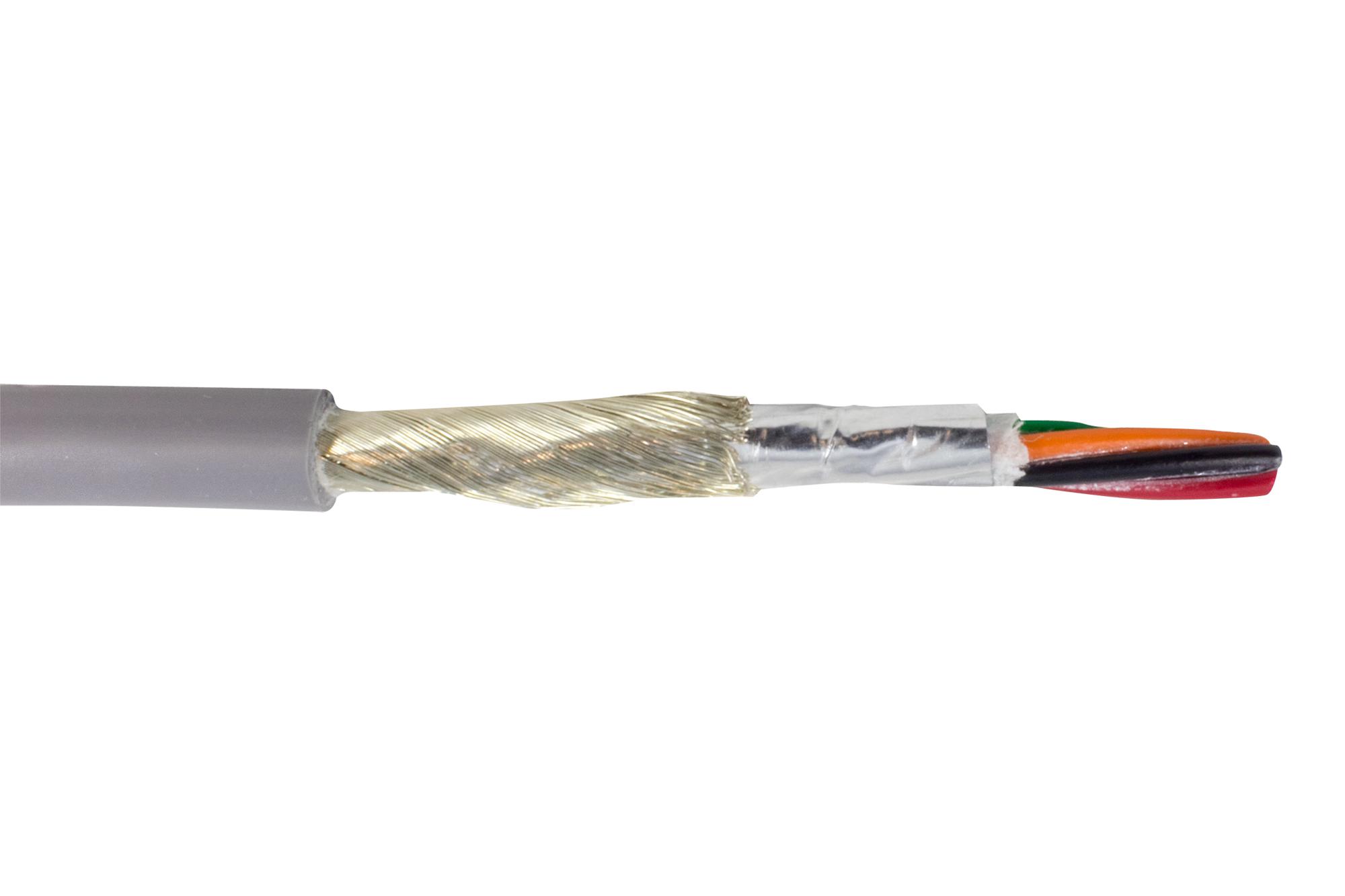

Buy the Buy AlphaWire High-Flex Data Cable Part Number 86162CY Online
Order the AlphaWire flexible data cable with part number 86162CY online today and enjoy fast delivery. This highly durable cable with 16 AWG tinned copper conductors offers excellent shielding, sunlight resistance, and compliance with UL, CSA, and CE standards. Perfect for industrial control, instrumentation, or communication systems, it features a PVC jacket, foil shielding, and robust construction for long-lasting performance. Purchase now to ensure your projects benefit from top-quality, reliable cable solutions designed for demanding environments.
Buy AlphaWire 86162CY now and experience reliable, shielded data transmission suitable for industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 86162CYSL005?
You can click on the BUY or RFQ button to purchase 86162CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 86162CYSL005?
You can download the 86162CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 86162CYSL005?
ALPHA WIRE
