ALPHA WIRE 861802SL002 data cable
This is a flexible, multi-conductor data communication cable designed for industrial and electronic applications. Featuring a PVC jacket and semi-rigid insulation, it supports 300V voltage ratings and is sunlight resistant. The cable consists of 18 AWG tinned copper conductors with a durable construction suitable for installation in environments requiring high flexibility and mechanical stability. Its electrical properties include a capacitance of 27 pF/ft @1 kHz, and a characteristic impedance of 650 ohms, making it ideal for data transmission and control systems with a temperature range from -10°C to 105°C.
ALPHA WIRE 861802SL002 data cable Specifications:
- Conductor: 18 AWG Tinned Copper (41/34), Diameter 0.043 inches
- Insulation: 0.010 inches PVC, Semi Rigid
- Jacket: 0.040 inches PVC, Colors: Slate, White
- Overall Diameter: 0.210 inches ±0.010
- Twist Rate: 8.0 Twists/foot (min)
- Core Wrap: Nonwoven Polyester Tape, 25% Overlap
- Voltage Rating: 300 V
- Capacitance: 27 pF/ft @ 1 kHz
- Characteristic Impedance: 650 ohms
- Inductance: 0.16 pH/ft
- Conductor Resistance: 6.9 Ω/1000 ft @ 20°C
- Temperature Range: -10°C to +105°C (static), +5°C to +105°C (dynamic)
- Bend Radius: 8X Cable Diameter static, 8X cable diameter dynamic
- Pull Tension: 26 lbs maximum
- Sunlight Resistance: Yes
- Length Variants: 1000 ft, 500 ft, 100 ft spools, dimensions vary

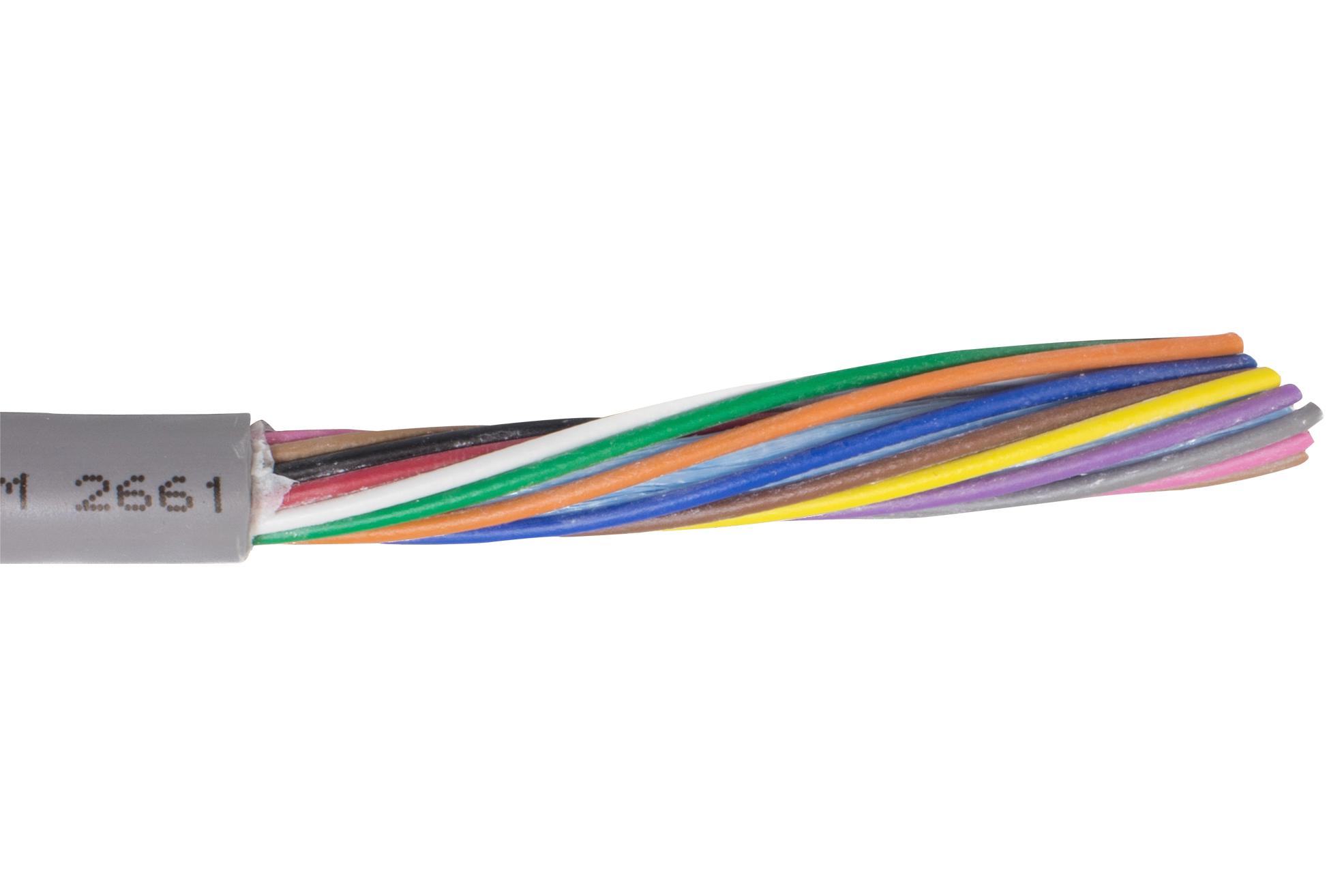

Buy the Buy Alpha Wire 711 Part Number 861802SL002 Online
Enhance your project with the reliable alpha wire data cable, part number 861802SL002. Featuring 18 AWG tinned copper conductors, a durable PVC jacket, and resistance to sunlight, this flexible cable is ideal for industrial, electronic, and control applications. Rated at 300V and with a temperature range of -10°C to 105°C, it provides excellent electrical performance with low capacitance and impedance. Available in 1000 ft, 500 ft, and 100 ft spools, it ensures seamless installation for your data and control system needs. Purchase online today for fast delivery and dependable quality.
Order your Alpha Wire Series 711 861802SL002 data cable today and ensure reliable data transmission in your industrial and control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861802SL002?
You can click on the BUY or RFQ button to purchase 861802SL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861802SL002?
You can download the 861802SL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861802SL002?
ALPHA WIRE
