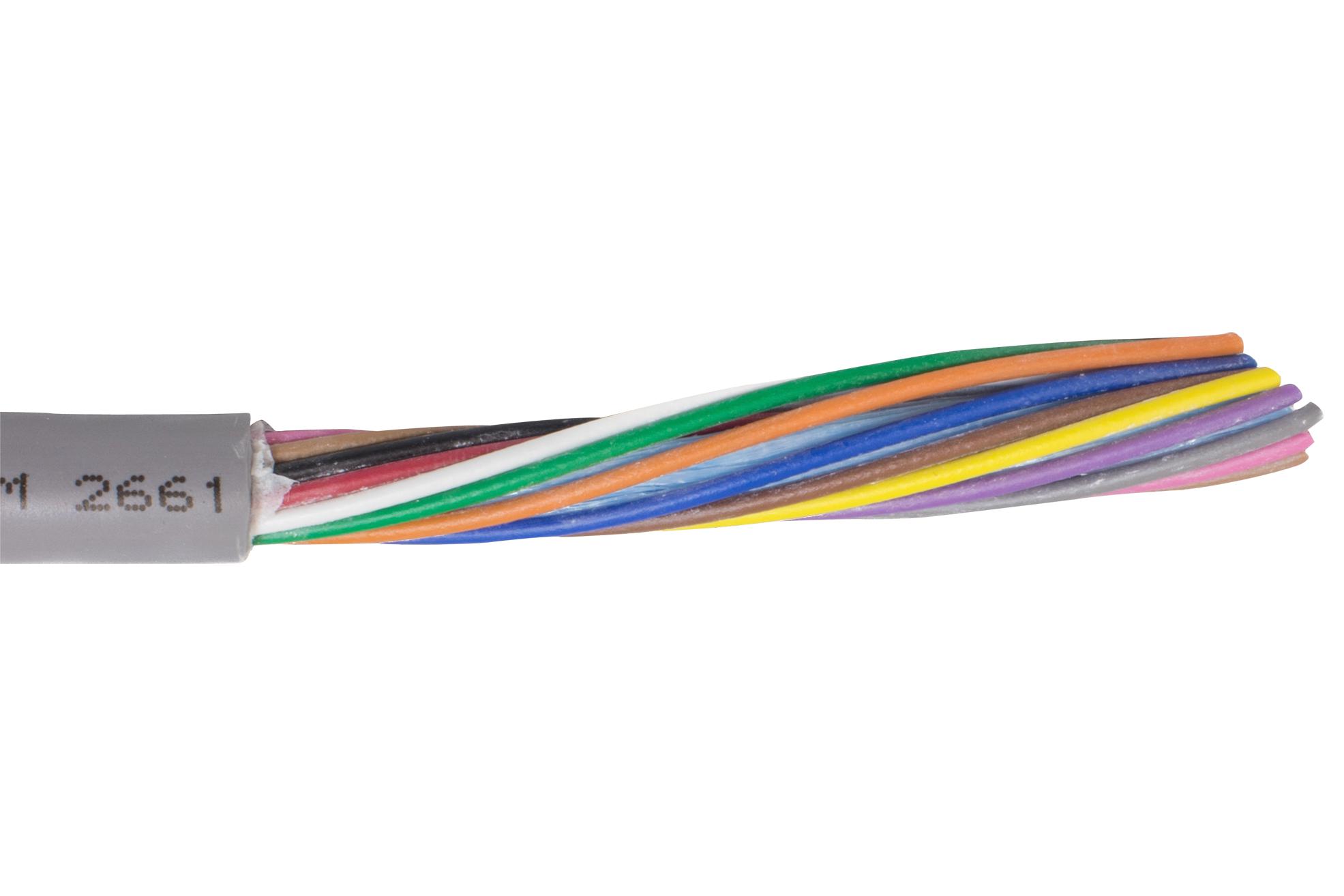

ALPHA WIRE 861807SL005 Flexible Data Cable
The product is a flexible, durable data cable designed for industrial and control applications. Made with tinned copper conductors and PVC insulation, it offers excellent sunlight resistance and complies with UL, CSA, and CE standards. Rated for 300V and capable of handling static temperatures between 10°C and 105°C, this cable features a 4.8 twists per foot twist rate and a nonwoven polyester tape core wrap. Its robust construction ensures optimal electrical performance and mechanical reliability in demanding environments.
ALPHA WIRE 861807SL005 Flexible Data Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 18 AWG (41/34) nominal
- Insulation Wall Thickness: 0.010 inches, PVC, semi rigid
- Jacket Thickness: 0.043 inches, PVC, color: Slate
- Voltage Rating: 300 V
- Temperature Range: -10°C to 105°C static, +5°C to 105°C dynamic
- Bend Radius: 8 times cable diameter
- Pull Tension: Maximum 89 lbs
- Capacitance: 27 pF/ft @1 kHz
- Inductance: 0.16 µH/ft
- Conductor Resistance: 7 Ω/1000 ft @20°C
- Twist Rate: 4.8 twists/foot (minimum)
- Environmental Resistance: Sunlight resistant, RoHS and REACH compliant
- Conductors arranged from inside layer to outside layer with core wrap
- Cable lengths available: 1000 ft, 500 ft, 100 ft
Buy the Buy AlphaWire Data Cable Part Number 861807SL005 Online
Purchase the AlphaWire 861807SL005 flexible data cable online today to benefit from high durability, excellent electrical properties, and compliance with global standards. Designed for demanding industrial environments, this 300V rated cable with PVC insulation and tinned copper conductors offers superior flexibility, sunlight resistance, and reliable performance. Ideal for automation, control panels, and electronic equipment, it ensures seamless signal transmission and mechanical robustness. Shop now for quick delivery and expert support to enhance your projects.
Order your AlphaWire 861807SL005 flexible data cable today and ensure reliable connections for industrial control and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861807SL005?
You can click on the BUY or RFQ button to purchase 861807SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861807SL005?
You can download the 861807SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861807SL005?
ALPHA WIRE
