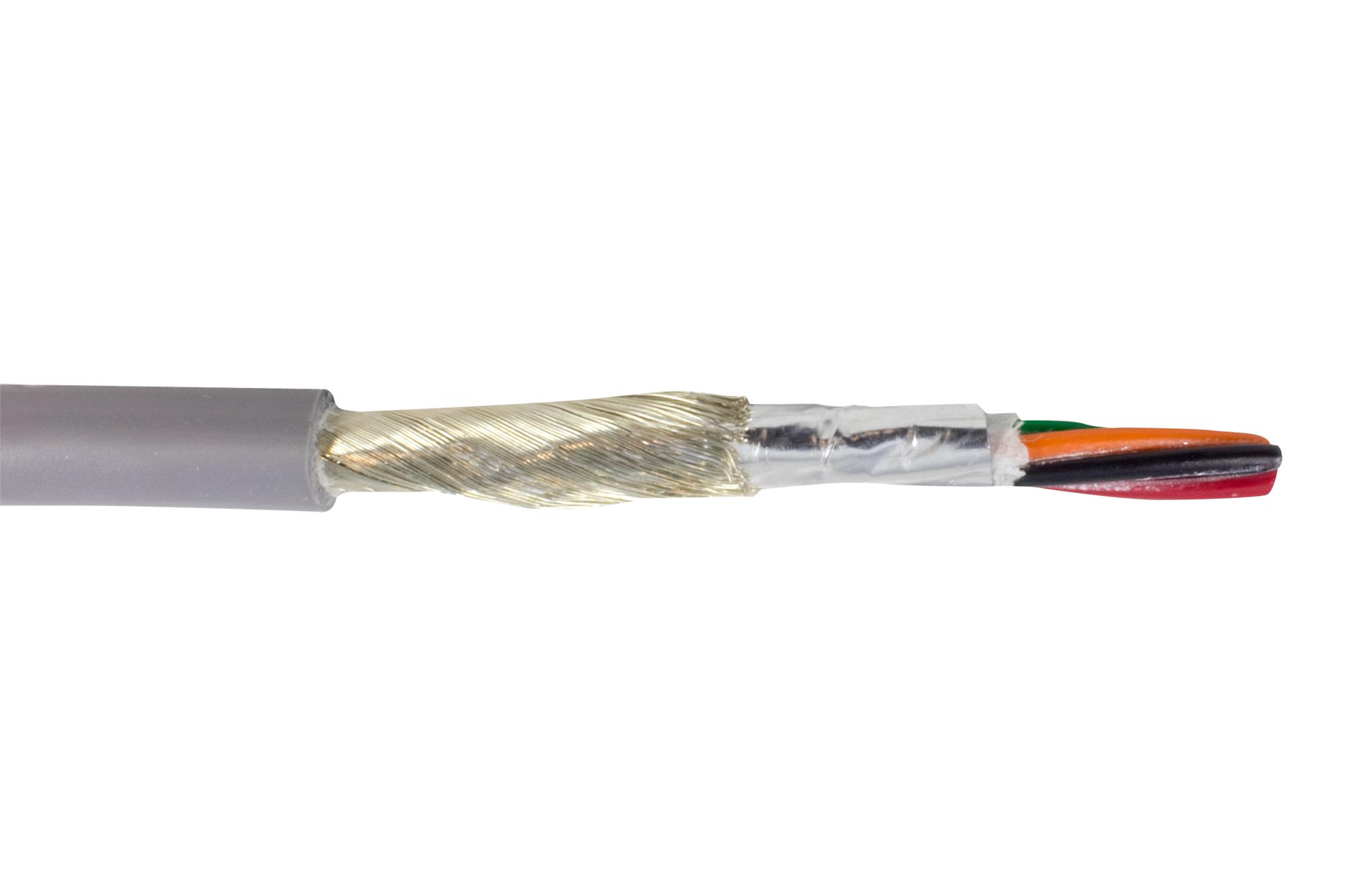

ALPHA WIRE 862004CYSL005 Flexible Data Cable
This is a high-quality, flexible data cable designed for industrial and electronic applications, featuring a 20 AWG tinned copper conductor, PVC insulation, and a durable PVC jacket. It complies with UL and CSA standards for 105°C, 300V ratings, and is resistant to sunlight. The cable includes a shield with aluminum/mylar tape, a drain wire, and a core wrap for enhanced performance. Suitable for indoor and outdoor use, it offers excellent electrical, mechanical, and environmental properties, perfect for complex wiring setups and reliable data transmission.
ALPHA WIRE 862004CYSL005 Flexible Data Cable Specifications:
- Conductor: 20 AWG Tinned Copper
- Insulation Wall: 0.010 inches PVC, semi rigid
- Jacket: 0.040 inches PVC, SLATE color
- Shield: Flex Alum/Mylar tape with 25% overlap
- Drain wire: 26 AWG Tinned Copper
- Voltage rating: 300V
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Bend radius: 8x cable diameter
- Pull tension: Max 44 lbs
- Capacitance: 43 pF/ft @1 kHz
- Ground capacitance: 77 pF/ft @1 kHz
- Inductance: 0.16 pH/ft
- Conductor DCR: 9.5 Q/1000 ft @20°C
- Shield DCR: 4.9 Q/1000 ft @20°C
- Conforms to UL 105°C / 300V, CSA AWM 2661 105°C / 300V, CE Low Voltage Directive
Buy the Alpha Wire 862004CY – Reliable Data Cable for Industrial Applications
Order the Alpha Wire 862004CY flexible data cable online today and ensure your industrial or electronic projects benefit from superior durability, UL and CSA certification, and excellent electrical properties. This high-quality cable features PVC insulation and jacket, a shield for EMI protection, and a tinned copper conductor for reliable connectivity. Perfect for demanding environments, it withstands sunlight, temperature extremes, and mechanical stress. Get your supply now for seamless installation and long-term performance in your wiring systems.
Buy Alpha Wire 862004CY now and experience unmatched reliability and performance in complex wiring and data transmission.
Frequently Asked Questions
Where can I buy ALPHA WIRE 862004CYSL005?
You can click on the BUY or RFQ button to purchase 862004CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 862004CYSL005?
You can download the 862004CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 862004CYSL005?
ALPHA WIRE
