ALPHA WIRE 86408CYSL005 Data Cable
The Alpha Wire 86408CY provides a durable, flexible data cable suitable for industrial and electronic applications, featuring tinned copper conductors, PVC insulation, and aluminum/mylar shielding. It supports 300V, maintains high flexibility with continuous flex design, and complies with UL, CSA, and CE standards. The cable's construction includes multiple twisted pairs, a UV-resistant outer jacket in slate color, and is suitable for environments requiring consistent performance under mechanical stress. Its physical characteristics include a 0.040" wall thickness and a maximum conductor DCR of 67 Ω/1000 ft at 20°C, ensuring reliable electrical performance.
ALPHA WIRE 86408CYSL005 Data Cable Specifications:
- Conductor: 28 AWG tinned copper
- Insulation: PVC, 0.010" wall, semi rigid
- Shield: Aluminum/Mylar tape, 25% overlap, foil facing out
- Jacket: PVC, 0.040" wall, slate color
- Outer Diameter: 0.331 inches ± 0.019 inches
- Voltage Rating: 300V
- Temperature Rating: 105°C (static and dynamic)
- Bend Radius: 10X static, 15X dynamic cable diameter
- Pull Tension: 31 lbs maximum
- Capacitance: Mutual 19.7 pF/ft, Ground 35 pF/ft
- Impedance: 979 ohms
- Inductance: 0.22 µH/ft
- Conductor DCR: 67 Ω/1000 ft at 20°C
- Shield DCR: 2.8 Ω/1000 ft at 20°C
- Cable Length Options: 1000 ft, 500 ft, 100 ft

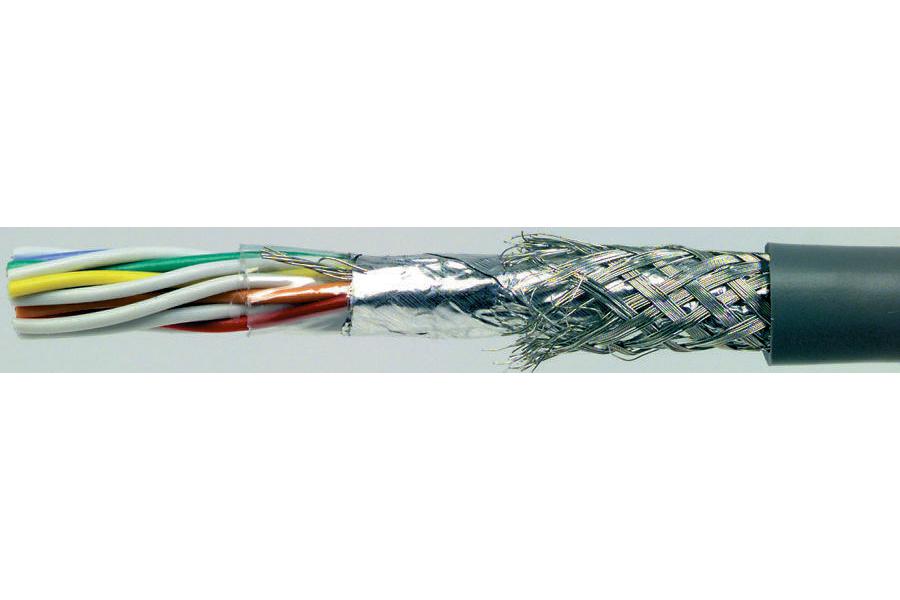

Buy the Buy Alpha Wire Data Cable Part Number 86408CY Online
Discover the high-quality Alpha Wire 86408CY flexible data cable, designed for demanding industrial environments. Featuring 28 AWG tinned copper conductors, PVC insulation, and aluminum/mylar shielding, it offers excellent electrical performance at 300V and 105°C ratings. Its durable slate outer jacket and continuous flex construction ensure long-lasting reliability under mechanical stress. Ideal for electronic and industrial applications, this cable provides optimal capacitance and impedance for high-fidelity data transmission. Purchase conveniently online and enhance your project with this trusted, UL and CSA certified component.
Order your Alpha Wire 86408CY flexible data cable today and ensure reliable, high-performance connections for your industrial and electronic projects.
