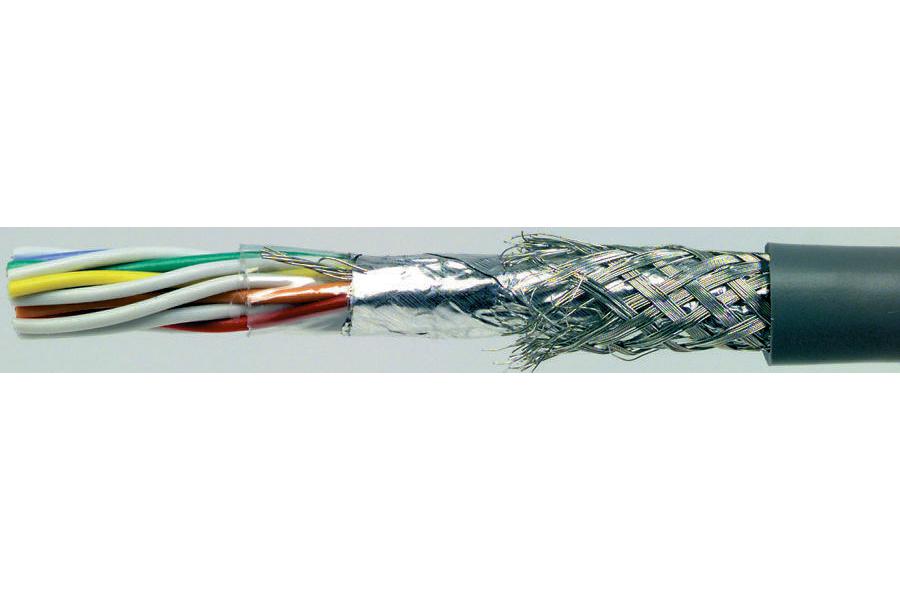

ALPHA WIRE 86606CYSL005 XTRAGUARD Data Cable
The Alpha Wire 86606CY cable assembly is a high-quality, flexible data cable designed for industrial and electronic applications, featuring tinned copper conductors, PVC insulation, and a durable PVC jacket in slate color. It complies with UL, CSA, and CE standards, offering a voltage rating of 300V, and is RoHS and REACH compliant. It is suitable for low-voltage signal transmission, with a characteristic impedance of 820 ohms, and is sunlight resistant, with a temperature range of -55°C to +105°C. The cable's construction ensures durability and reliable performance in various environments.
ALPHA WIRE 86606CYSL005 XTRAGUARD Data Cable Specifications:
- Conductor Material: Tinned Copper, 24 AWG
- Insulation Wall Thickness: 0.010" PVC
- Jacket Wall Thickness: 0.040" PVC, Slate color
- Voltage Rating: 300V
- Temperature Range: -55°C to +105°C
- Characteristic Impedance: 820 ohms
- Mutual Capacitance: 23.1 pF/ft @ 1 kHz
- Ground Capacitance: 42 pF/ft @ 1 kHz
- Shield Type: Flex Alum/Mylar Tape with 25% overlap
- Braid Coverage: 85%
- Conductors: Twisted pairs, 9.6 twists/foot minimum
- Physical Lengths Available: 1000 ft, 500 ft, 100 ft
- Flammability: UL 94V-0
- Environmental Compliance: RoHS 2, REACH, CE
- Mechanical Properties: Bend Radius 10x cable diameter (static), 15x (dynamic); Pull Tension 46 lbs
- Electrical Properties: Mutual Capacitance 23.1 pF/ft, Impedance 820 ohms
- Certifications: UL Listed, CSA Certified, CE Low Voltage Directive
Buy the Alpha Wire Series XTRAGUARD Data Cable: 86606CY
Purchase the Alpha Wire 86606CY data cable online today for durable, flexible performance in industrial applications. Designed with tinned copper conductors, PVC insulation and jacket, it meets UL, CSA, and CE standards, offering a voltage rating of 300V and excellent resistance to sunlight and high temperatures. Perfect for low-voltage signal transmission, this cable provides reliable, consistent operation, ensuring your electronic systems function efficiently in harsh or demanding environments. Order now for quick, secure delivery and superior performance.
Get Alpha Wire 86606CY today—built for durability, flexibility, and reliable signal transmission in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 86606CYSL005?
You can click on the BUY or RFQ button to purchase 86606CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 86606CYSL005?
You can download the 86606CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 86606CYSL005?
ALPHA WIRE
