ALPHA WIRE 882003SL005 Electrical Cable Assembly
This is a 20 AWG cable assembly with a PVC insulation wall, rated for UL CL2 90°C and AWM 2464 80°C, 300V. It features 6.0 twists per foot, a 0.032-inch PVC jacket in slate color, and is compliant with RoHS, CE, and CSA standards. Suitable for low-voltage electrical wiring, it has a bend radius of 10 times the cable diameter, a voltage rating of 300V, and a maximum pull tension of 23.6 lbs. The cable offers excellent electrical performance with capacitance of 30 pF/ft and conductor resistance of 11.5 Ω/1000 ft at 20°C.
ALPHA WIRE 882003SL005 Electrical Cable Assembly Specifications:
- Conductor: 20 (10/30) AWG TC
- Insulation: 0.016-inch PVC wall
- Jacket: 0.032-inch PVC wall, slate color
- Cable Diameter: 0.213 inch (max 0.223 inch)
- Twists per Foot: 6.0
- Temperature Range: -20°C to 90°C
- Voltage Rating: 300V
- Capacitance: 30 pF/ft @ 1 kHz
- Inductance: 0.19 μH/ft
- Conductor DCR: 11.5 Ω/1000 ft @ 20°C
- Bend Radius: 10 times cable diameter
- Maximum Pull Tension: 23.6 lbs
- Certifications: UL (CL2, 2464 80°C 300V), CSA (AWM II AB 90°C / 300V), CE (Low Voltage Directive 2006/95/EC)
- Environmental compliance: RoHS 2 & 3, REACH, China RoHS
- Lengths Available: 1000 ft, 500 ft, 100 ft, bulk/spool

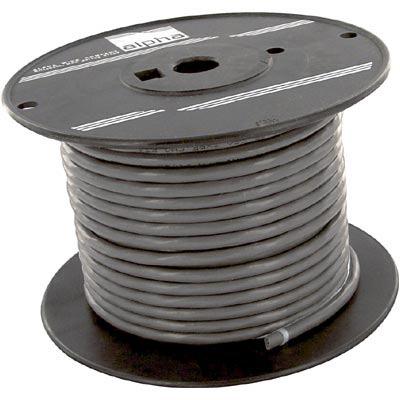

Buy the Buy Alpha Wire Part Number 882003SL005 Online
Purchase Alpha Wire 882003SL005 online today to ensure high-quality electrical wiring for your low-voltage applications. This cable assembly features premium PVC insulation, UL, CSA, and CE certifications, RoHS compliance, and excellent electrical performance metrics including 300V voltage rating, capacitance of 30 pF/ft, and a bend radius suitable for tight spaces. Available in multiple lengths, this assembly is ideal for industrial wiring, control systems, and electronic projects requiring durability and safety. Order now for fast delivery and trusted quality.
Get Alpha Wire 882003SL005 today—designed for low-voltage wiring, high performance, and reliability in industrial electrical applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882003SL005?
You can click on the BUY or RFQ button to purchase 882003SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882003SL005?
You can download the 882003SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882003SL005?
ALPHA WIRE
