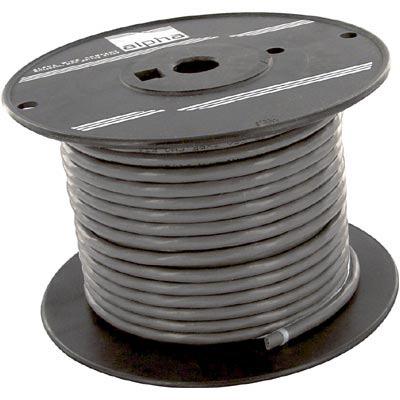

ALPHA WIRE 882205SL005 twisted pair cable
The 882205SL005 is a 22 AWG twisted pair cable with a semi-rigid PVC insulation wall, rated for 300V, suitable for low-voltage applications. It features a black slate jacket, 6 twists per foot, and a maximum conductor resistance of 16.3 ohms per 1000 ft at 20°C. Designed for reliable electrical performance in environments requiring UL, CSA, and CE compliance, this cable boasts excellent flexibility, temperature tolerance from -20°C to 105°C, and meets RoHS and REACH standards for environmentally safe use. Its compact construction makes it ideal for control panels, instrumentation, and signal transmission.
ALPHA WIRE 882205SL005 twisted pair cable Specifications:
- Wire Gauge: 22 AWG
- Insulation Wall Thickness: 0.010" PVC, semi-rigid
- Jacket Thickness: 0.032" PVC
- Jacket Color: Slate
- Conductor Resistance: 16.3 ohms per 1000 ft at 20°C
- Twists Per Foot: 6.0
- Voltage Rating: 300 V
- Temperature Range: -20°C to 105°C
- Bend Radius: 10 times cable diameter
- Pull Tension: 27 lbs maximum
- UL Certification: UL 2464 80°C / 300 V
- CSA Certification: C(RU) AWM II AB 105°C / 300 V
- Compliance: RoHS 2 & 3, REACH, CE
Buy the Alpha Wire Series 882205 22 AWG Twisted Pair Cable: 882205SL005
Purchase the Alpha Wire Series 882205 22 AWG twisted pair cable online today to secure a high-quality, UL and CSA certified wire suitable for low-voltage control and instrumentation systems. Featuring a PVC semi-rigid insulation, a durable slate jacket, and a voltage rating of 300V, this cable ensures dependable electrical performance and safety compliance. Its flexible design, wide temperature range from -20°C to 105°C, and environment-friendly RoHS and REACH compliance make it ideal for various industrial wiring applications. Get yours now for a reliable installation!
Order your Alpha Wire Series 882205 22 AWG twisted pair cable today and ensure reliable, compliant wiring for your low-voltage electrical projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882205SL005?
You can click on the BUY or RFQ button to purchase 882205SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882205SL005?
You can download the 882205SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882205SL005?
ALPHA WIRE
