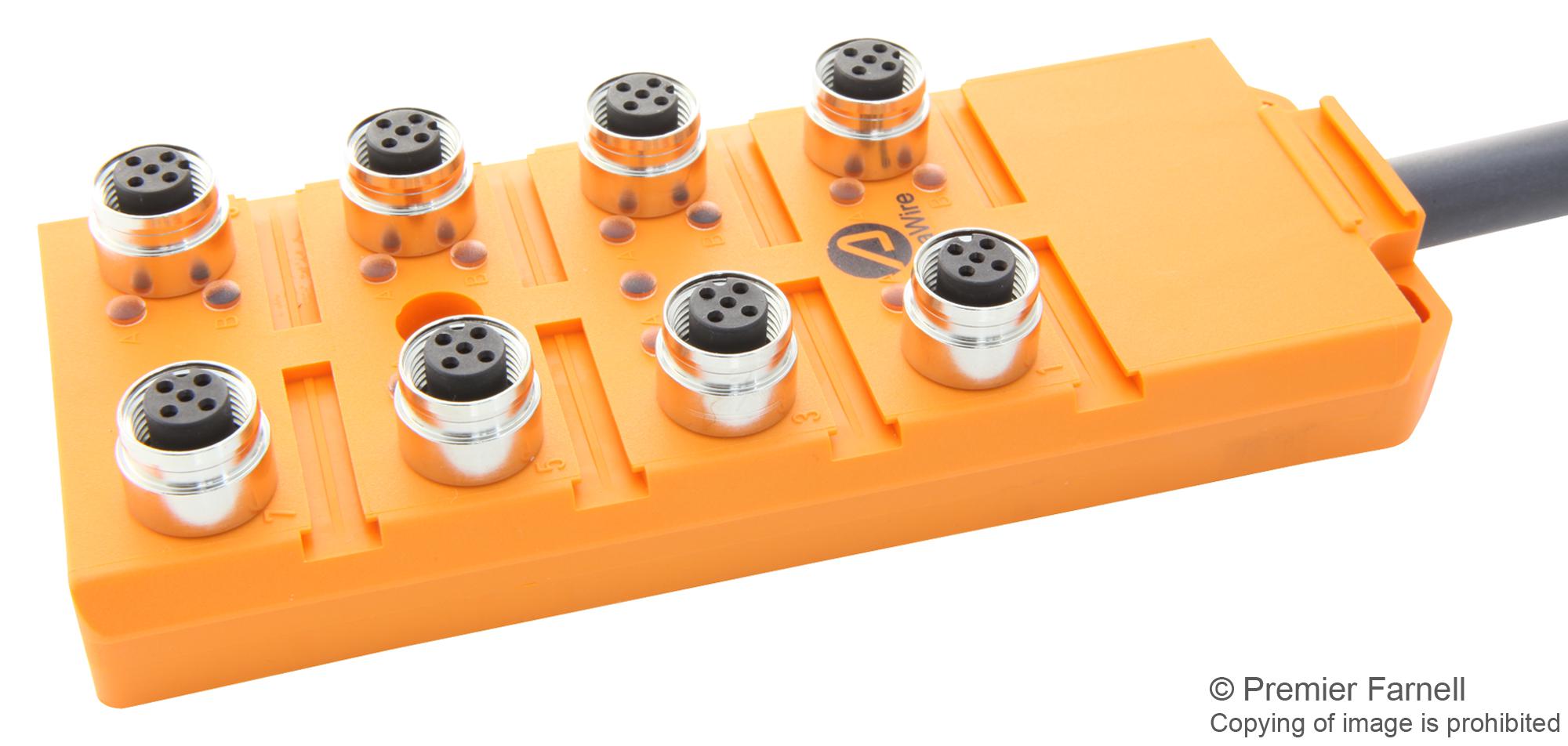

ALPHA WIRE 9105MNC032 Passive Distribution Box
The Alpha Wire 910-5M NC032 is a durable M12 passive distribution box with a 5-meter cable, featuring 8 ports with gold-plated copper contacts and IP67 sealing. It’s designed for efficient industrial wiring, suitable for automation and harsh environments like food and beverage settings. The compact enclosure includes thermoplastic housings, a black zero-halogen polyurethane cable, and LED indicators per port for status monitoring. Supporting 10–30V DC and up to 4A per port, this UL-listed device operates reliably from -15°C to +80°C, meeting strict safety and performance standards.
ALPHA WIRE 9105MNC032 Passive Distribution Box Specifications:
- Ports: 8
- Channels per Port: 2
- Housing Material: Orange TPU, flame retardant
- Contact Material: Copper Alloy, Gold Plated
- Receptacle Shell: Copper Alloy, Nickel Plated
- Cable Construction: 3x 1.0mm² conductors & 16 x 0.5mm² conductors
- Outer Jacket Material: Zero Halogen PUR
- Outer Diameter: 4.53 inches
- Operating Temperature Range: -15°C to +80°C
- Ingress Protection: IP67 / NEMA 6P
- Voltage Rating: 10-30V DC
- Current per port: Up to 4A
- Total Current Capacity: 12A
- Contact Resistance: <5mΩ
- Insulation Resistance: >10^9 ohms
- Certifications: UL Listed (E485156)
Buy the AlphaWire 910-5M U+2013 Reliable Passive Distribution Box for Industrial Automation
Order the AlphaWire 910-5M passive distribution box online and enhance your industrial wiring setup. Featuring 8 ports, IP67 sealing, and LED indicators, this compact device is ideal for automation, factory, and harsh environment applications. Its durable thermoplastic housing, gold-plated contacts, and 5-meter cable ensure long-lasting performance. The UL-listed device operates within -15°C to +80°C, delivering reliable connectivity with a maximum of 12A capacity. Easily connect sensors and actuators with confidence, and simplify your installation today.
Get AlphaWire 910-5M today—built for precision, durability, and efficient sensor and actuator connections in demanding environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9105MNC032?
You can click on the BUY or RFQ button to purchase 9105MNC032 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9105MNC032?
You can download the 9105MNC032 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9105MNC032?
ALPHA WIRE
