ALPHA WIRE 9440WH033 Coaxial Cable
This high-performance coaxial cable features a 40 (7/48) AWG tinned copper alloy conductor, a 0.0028-inch wall PFA insulation with black tint, and a white PFA jacket. It is designed for applications requiring a characteristic impedance of 500 ±5 ohms, a voltage rating of 30 V, and a maximum attenuation of 13.7 dB/100ft at 10 MHz. The cable offers excellent electrical stability from -70°C to 150°C, with a bend radius of 10 times its diameter, ensuring reliable signal transmission and durability in demanding environments.
ALPHA WIRE 9440WH033 Coaxial Cable Specifications:
- Conductor: 40 (7/48) AWG Tinned Copper Alloy
- Insulation: 0.0028-inch Wall, PFA, Black Tint
- Jacket: 0.0012-inch Wall, PFA, White
- Voltage Rating: 30 V
- Characteristic Impedance: 500 ±5 ohms
- Ground Capacitance: 33.6 pF/ft @ 1 kHz
- Velocity of Propagation: 69%
- Conductor DCR: 1524 Ω/1000ft @ 20°C
- Attenuation: Max 13.7 dB/100ft @ 10 MHz
- Temperature Range: -70°C to 150°C
- Bend Radius: 10X Cable Diameter
- Packaging: Continuous length, 328 ft spool

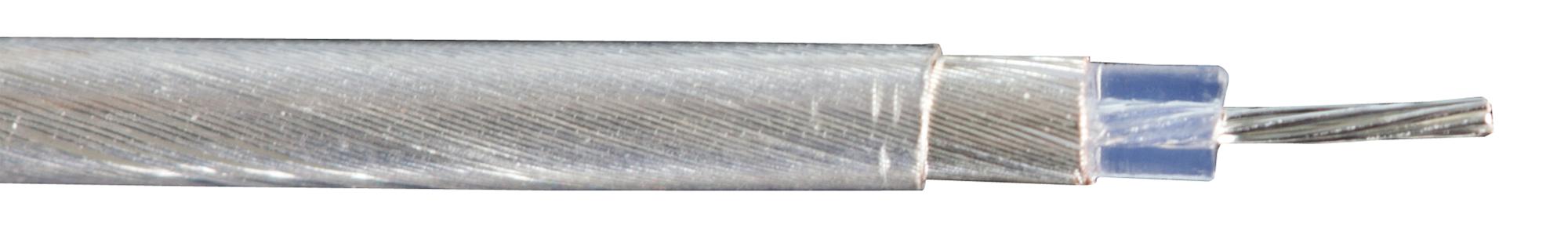

Buy the Buy Alpha Wire Coaxial Cable Part Number 9440WH033 Online
Purchase Alpha Wire coaxial cable part number 9440WH033 online to ensure reliable, high-quality signal transmission for your electronic and communication projects. This durable cable features a 40 AWG tinned copper conductor, PFA insulation, and a white PFA jacket, providing excellent electrical performance over a wide temperature range from -70°C to 150°C. With a characteristic impedance of 500 ohms, low attenuation, and a maximum voltage of 30 V, it is ideal for high-frequency applications, offering stability and flexibility in demanding environments. Trusted for its consistent quality and long-lasting durability, buy now to enhance your systems with precision wiring components.
Get Alpha Wire 9440WH033 today—built for precise signal transmission with high durability, suitable for demanding electronic and communication applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9440WH033?
You can click on the BUY or RFQ button to purchase 9440WH033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9440WH033?
You can download the 9440WH033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9440WH033?
ALPHA WIRE
