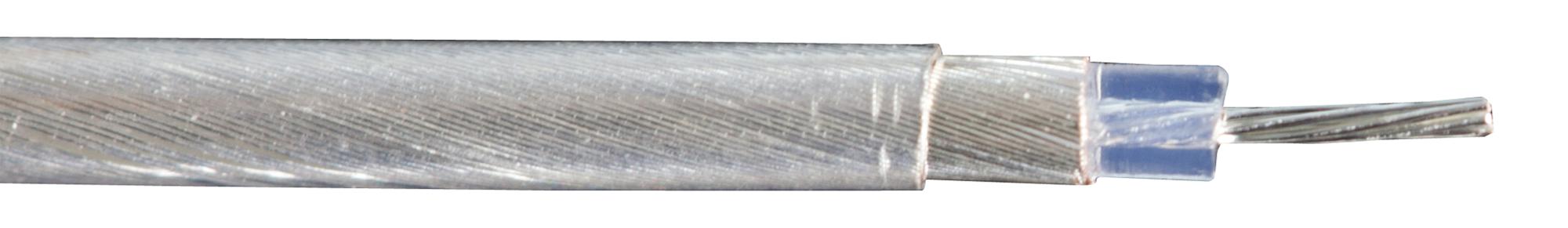

ALPHA WIRE 9444WH033 Coaxial Cable
This is a high-performance coaxial cable designed for reliable electrical transmission in industrial and electronic applications. Constructed with a silver copper alloy conductor, PFA insulation and jacket, it offers excellent durability and environmental compliance with RoHS and REACH regulations. Rated for temperatures from -70°C to 150°C and a voltage of 30 V, it features a characteristic impedance of 500 ±5 ohms, making it ideal for precise signal integrity in demanding environments. Its flexible design allows easy installation with a minimum bend radius of 10 times the cable diameter, ensuring long-term reliability and efficient performance in industrial wiring systems.
ALPHA WIRE 9444WH033 Coaxial Cable Specifications:
- Conductor: Silver Copper Alloy, 44 (7/52) AWG
- Insulation Wall: 0.0019 inches, PFA
- Jacket Wall: 0.0012 inches, PFA
- Voltage Rating: 30 V
- Characteristic Impedance: 500 ±5 ohms
- Ground Capacitance: 33.6 pF/ft @1 kHz
- Velocity of Propagation: 69%
- Max Conductor DCR: 3352.8 Ω/1000ft @20°C
- Max Attenuation: 30.5 dB/100ft @10 MHz
- Temperature Range: -70°C to 150°C
- Bend Radius: 10x Cable Diameter
- Length: 328 ft, continuous spool
- Applicable Standards: RoHS 2, REACH, EU Low Voltage Directive 2006/95/EC
Buy the Alpha Wire 9444 U–Reliable Coaxial Cable for Industrial Applications
Enhance your industrial wiring with Alpha Wire 9444 coaxial cable, featuring durable PFA insulation, high temperature resistance from -70°C to 150°C, and compliance with RoHS and REACH standards. Designed for precise signal transmission, it offers a characteristic impedance of 500 ohms and a maximum voltage of 30 V. Its flexible construction allows for easy installation with a bend radius of ten times the cable diameter, ensuring long-term reliability. Perfect for high-performance electronic systems, it guarantees optimal performance in demanding industrial settings. Order online now for quick delivery and trusted quality.
Buy Alpha Wire 9444 coaxial cable now and experience unmatched reliability and signal integrity in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9444WH033?
You can click on the BUY or RFQ button to purchase 9444WH033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9444WH033?
You can download the 9444WH033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9444WH033?
ALPHA WIRE
