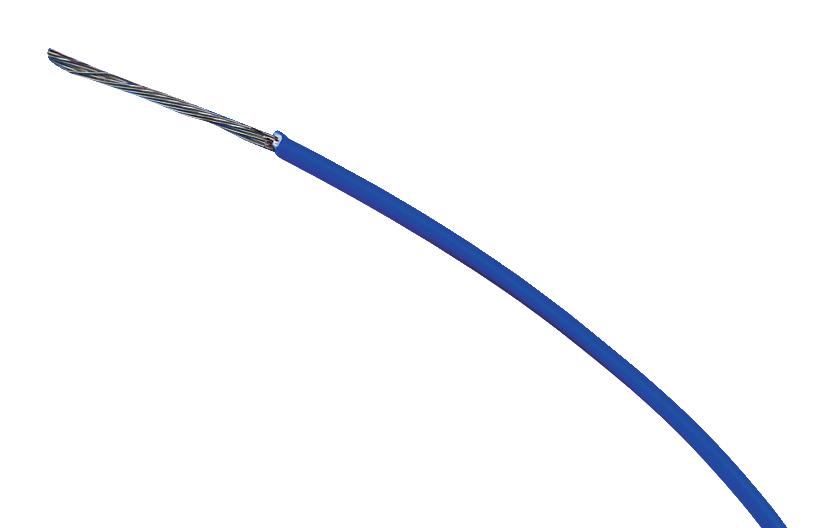

ALPHA WIRE AZ221934BL005 High-Temp Hook-Up Wire
This high-performance hook-up wire features stranded tinned copper conductors with PVDF insulation, suitable for high-temperature and chemically aggressive environments. It is compliant with UL AWM 3239 standards, operating from -40°C to +150°C, and offers excellent chemical resistance, flexibility, and electrical properties. Ideal for demanding industrial applications where durability and safety are critical, this wire's PVDF insulation provides superior heat, chemical, and radiation resistance, ensuring reliable system performance in challenging conditions. Available in various lengths, it is perfect for control panels, industrial machinery, and aerospace wiring systems.
ALPHA WIRE AZ221934BL005 High-Temp Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: PVDF (Polyvinylidene fluoride)
- Voltage Rating: 300 V
- Temperature Range: -40°C to +150°C
- Stranding: Stranded or solid
- Wire Sizes: AWG 22, 24, 26, 28, 30
- Insulation Thickness: 0.006 inches (approximate)
- Nominal Diameter: Ranges from 0.028 to 0.036 inches depending on AWG
- Color Coding: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet
- Standards: UL VW-1, CSA AWM I/BFT1, IEC 60332-2 Flame Test
- Availability: 100 ft, 500 ft, 1000 ft rolls
Buy the AlphaWire AZ221934BL – Reliable PVDF High-Temperature Hook-Up Wire for Industrial Applications
Purchase AlphaWire AZ221934BL high-temperature hook-up wire online to ensure your industrial systems operate reliably. Featuring PVDF insulation and tinned copper conductors, this wire is ideal for environments with extreme heat, chemicals, and radiation. Easily order in various lengths including 100 ft, 500 ft, or 1000 ft rolls, and benefit from fast shipping and guaranteed quality. Perfect for control panels, machinery, and aerospace wiring, this wire provides durability, superior electrical properties, and safety in harsh conditions. Make your order now for dependable performance and long-lasting reliability.
Get AlphaWire AZ221934BL today—built for high-performance, chemical resistance, and reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE AZ221934BL005?
You can click on the BUY or RFQ button to purchase AZ221934BL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part AZ221934BL005?
You can download the AZ221934BL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of AZ221934BL005?
ALPHA WIRE
