ALPHA WIRE DR03AR104SL401 industrial cordset
The DR03AR104 SL401 from Alpha Wire is a flexible industrial cordset equipped with an M12 male straight connector on one end and an M12 female straight connector on the other. It features three conductors made of 22 AWG (26/36) bare copper, insulated with SR-PVC and housed in a -40°C to +105°C slate PVC jacket. The cordset provides IP67 and IP68/NEMA 6P protection, suitable for demanding industrial environments. Designed for high-performance connectivity, it supports a flex life of up to 5 million cycles, with a static bend radius of 7x and a dynamic bend radius of 10x. The maximum RMS voltage is 300V, and it is rated for 3.1A at 50°C. The cable length is 20 meters, making it ideal for various industrial applications.
ALPHA WIRE DR03AR104SL401 industrial cordset Specifications:
- Connectors: M12-A Male and Female straight
- Conductor Material: Bare Copper, 22 AWG (26/36)
- Insulation: SR-PVC, 0.011" Wall
- Jacket Material: PVC, Slate color, 0.032" Wall
- Operating Temperature: -40°C to +105°C static, -15°C to +105°C dynamic
- Protection Level: IP67 and IP68/NEMA 6P
- Bend Radius: Static 7x cable diameter, dynamic 10x cable diameter
- Max Voltage: 300V RMS
- Current Rating: 3.1 Amps at 50°C
- Available Lengths: 0.6, 1, 3, 5, 10, 15, 20 meters
- Weight: Approx. 15.3 lbs for 20 meters
- Material Certifications: UL, CSA, REACH compliant
- Temperature Ratings: Static -40°C to +105°C, Dynamic -15°C to +105°C

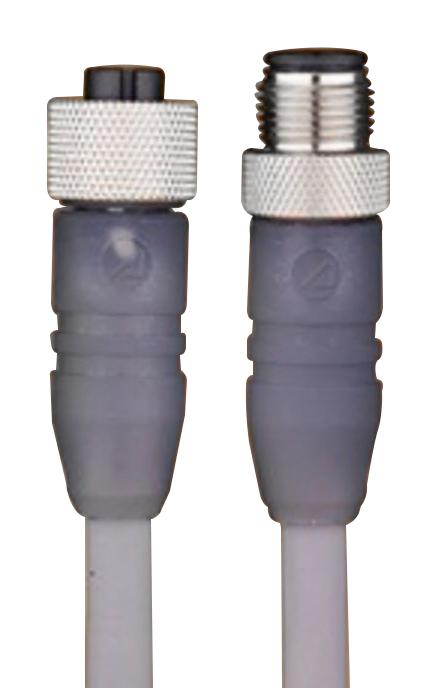

Buy the Buy Alpha Wire M12-A Male to M12-A Female Part Number DR03AR104SL401 Online
Purchase the Alpha Wire industrial cordset with M12 connectors online today for versatile, durable, and high-performance industrial applications. This cable features IP67/IP68 protection levels, a flexible design supporting up to 5 million cycles, and insulation rated for -40°C to +105°C. With a length of 20 meters, rated for 300V and 3.1A, it is ideal for demanding environments. Enjoy fast delivery and confidence in a high-quality, UL and CSA-certified product guaranteed to meet your industrial connectivity needs.
Get Alpha Wire DR03AR104SL401 today—designed for reliable industrial connectivity with IP67 protection and high flex life.
Frequently Asked Questions
Where can I buy ALPHA WIRE DR03AR104SL401?
You can click on the BUY or RFQ button to purchase DR03AR104SL401 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part DR03AR104SL401?
You can download the DR03AR104SL401 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of DR03AR104SL401?
ALPHA WIRE
