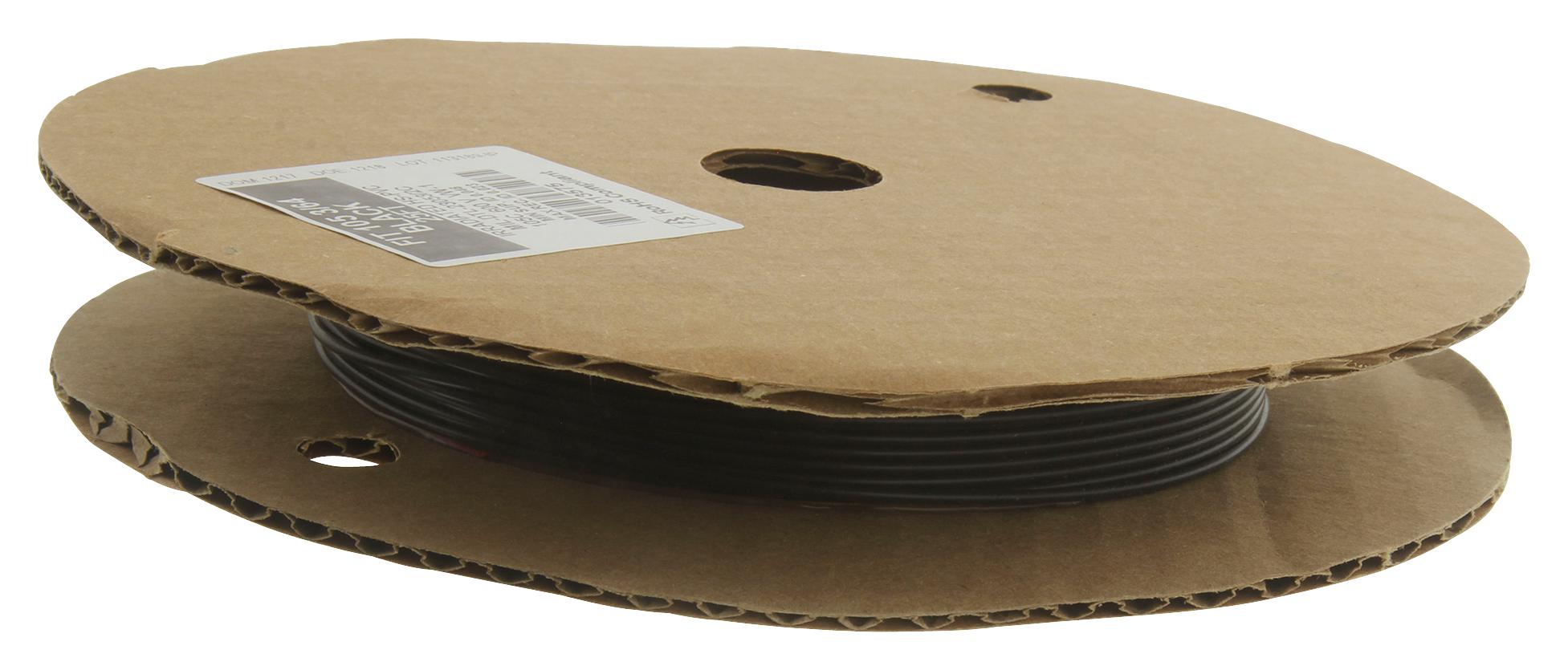

ALPHA WIRE F105364BK008 Heat Shrinkable PVC Tubing
This heat shrinkable tubing made from irradiated PVC offers reliable insulation and protection for electrical wiring in industrial environments. It features a 2:1 shrink ratio, with a recovered inner diameter of 0.023 inches and a wall thickness of 0.020 inches. Suitable for applications requiring UL VW-1 and CSA standards, it withstands temperatures from -20°C to 105°C. Its mechanical and electrical properties ensure durability, including a dielectric strength of ≥1083 V/mil and a volume resistivity of ≥1 x 10^11 ohm-cm. The tubing is RoHS and REACH compliant, halogen-free, and lead-free, ensuring safety and environmental standards are met.
ALPHA WIRE F105364BK008 Heat Shrinkable PVC Tubing Specifications:
- Tubing Type: Heat Shrinkable
- Material: Irradiated PVC
- Minimum Supplied ID: 0.046 inches
- Maximum Recovered ID: 0.023 inches
- Nominal Recovered Wall Thickness: 0.020 inches
- Color: Black
- Standards: UL VW-1, CSA International Standard 198
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 105°C
- Minimum Shrink Temperature: 100°C
- Temperature Range: -20°C to 105°C
- Dielectric Strength: ≥1083 V/mil
- Volume Resistivity: ≥1 x 10^11 ohm-cm
- Water Absorption: 1.00% max
- RoHS & REACH Compliant, Halogen-Free, Lead-Free
- Environmental Compliance: EU Directive 2011/65/EU, China RoHS
- Shelf Life: 1 year @ 18-35°C
- Physical & Mechanical Properties: Tensile strength ≥3000 psi, Elongation ≥300%, Specific Gravity 1.32, No corrosion or fungus resistance
Buy the AlphaWire F105364BK008 – Reliable Heat Shrinkable PVC Tubing for Industrial Applications
Purchase AlphaWire F105364BK008 heat shrinkable PVC tubing online today. Designed for electrical insulation and protection, it features a 2:1 shrink ratio, withstands temperatures from -20°C to 105°C, and meets UL VW-1 and CSA standards. RoHS and REACH compliant, halogen-free, and lead-free, ensuring safety and environmental regulations are satisfied. This durable tubing provides excellent electrical insulation with a dielectric strength of over 1083 V/mil and a volume resistivity of 1 x 10^11 ohm-cm. Order now for reliable performance and ease of deployment in industrial applications.
Get AlphaWire F105364BK008 today—built for durability with reliable insulation in industrial settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE F105364BK008?
You can click on the BUY or RFQ button to purchase F105364BK008 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part F105364BK008?
You can download the F105364BK008 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of F105364BK008?
ALPHA WIRE
