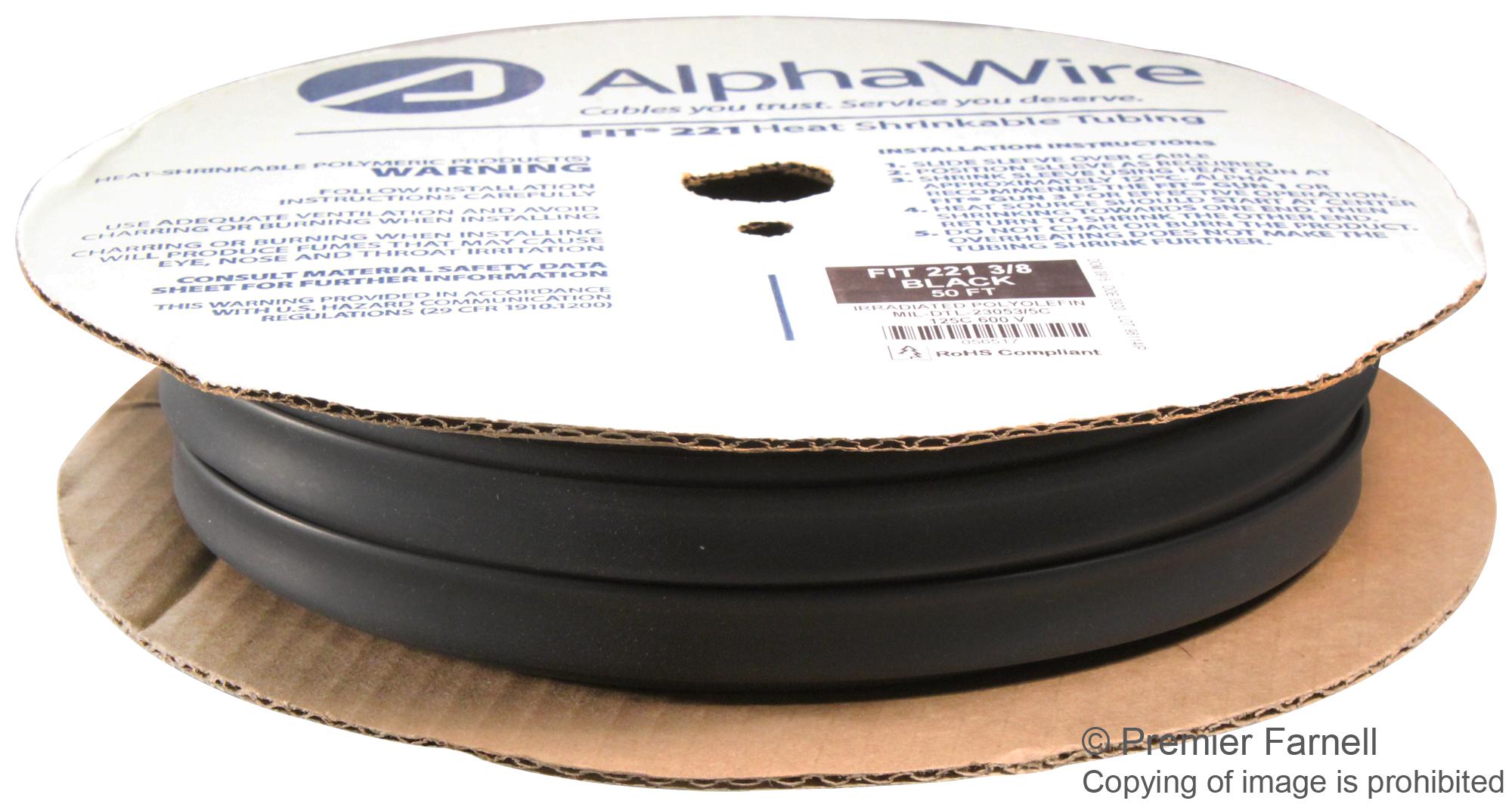

ALPHA WIRE F22138BK007 Heat Shrink Tubing
The FIT-221-3/8 BK007 is a heat shrink tubing designed for reliable electrical termination protection and sealing. Made from cross-linked polyolefin, it offers excellent physical and mechanical properties, including a 2:1 shrink ratio, a temperature range from -55°C to 135°C, and high tensile strength. The tubing is flame-retardant, UV-resistant, and low water absorption, making it suitable for industrial environments. Available in multiple colors, it meets UL 600V standards and complies with RoHS and REACH regulations, ensuring environmentally safe and high-quality performance.
ALPHA WIRE F22138BK007 Heat Shrink Tubing Specifications:
- Material: Cross linked Polyolefin
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: -55°C
- Operating Temperature Range: -55°C to 135°C
- Tensile Strength: 1500 psi, Min
- Elongation: 200%, Min
- Water Absorption: 0.50%, Max
- Dielectric Strength: 500 V/mil, Min
- Volume Resistivity: 1x10^14 ohm-cm, Min
- Flammability: UL 224, 600V, CSA Standard 198, 600V
- RoHS and REACH compliant
- Color options: Black, White, Clear, Red, Yellow, Blue, Green
- Shelf Life: 5 Years at 18 to 35°C
Buy the AlphaWire FIT-221-3/8 U–Reliable Heat Shrink Tubing for Industrial Applications
Purchase AlphaWire FIT-221-3/8 heat shrink tubing online today for outstanding protection of electrical connections. Designed for reliability, it features a 2:1 shrink ratio, excellent dielectric strength, and temperature resistance from -55°C to 135°C. Suitable for industrial use, this flame-retardant, UV-resistant tubing ensures long-lasting sealing and environmental compliance with RoHS and REACH standards. Improve your electrical safety today by ordering this versatile, easy-to-install tubing that offers low water absorption and attractive finish for OEM and repair applications.
Get AlphaWire FIT-221-3/8 today—built for precision, durability, and reliable electrical insulation in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE F22138BK007?
You can click on the BUY or RFQ button to purchase F22138BK007 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part F22138BK007?
You can download the F22138BK007 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of F22138BK007?
ALPHA WIRE
