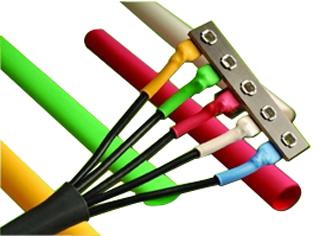

ALPHA WIRE F22138WH103 Heat Shrink Tubing
Heat shrinkable tubing made from cross-linked polyolefin designed for electrical insulation and protection. It features a 2:1 shrink ratio, full recovery temperature of 121°C, and operates within -55°C to 135°C. Available in black, white, clear, red, yellow, blue, and green, this tubing meets UL 224 and CSA standards for 600V. Its durable design ensures resistance to chemicals, moisture, and mechanical stress, making it ideal for wire insulation, splicing, and insulation of electrical components in harsh environments. It offers excellent mechanical and electrical properties with a 5-year shelf life.
ALPHA WIRE F22138WH103 Heat Shrink Tubing Specifications:
- Material: Cross-linked Polyolefin
- Shrink Ratio: 2:1
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: -55°C
- Operating Temperature Range: -55°C to +135°C
- Wall Thickness: Nominal 0.025 inches
- Colors Available: Black, White, Clear, Red, Yellow, Blue, Green
- Standards Compliance: UL 224, CSA C22.2 No. 224, AMS-DTL-23053/5 Class 1 and 2
- Environmental Compliance: RoHS 2, REACH, California Proposition 65
- Chemical Resistance: Resistant to various chemicals and moisture
- Electrical Resistance: Dielectric strength ≥ 500 V/mil
- Shelf Life: 5 Years at 18–35°C
Buy the AlphaWire Series Heat Shrink Tubing: F22138WH103
Order the AlphaWire F22138WH103 heat shrink tubing online today to benefit from high-quality electrical insulation solution. Its exceptional chemical and moisture resistance make it ideal for demanding environments. Easy to install with a 2:1 shrink ratio, it ensures secure protection for wires and components. Compliant with UL 224 and CSA standards for 600V, it offers durability and reliability. Available in multiple colors for easy identification, this tubing’s long shelf life and proven performance make it the best choice for professional electrical and industrial use.
Buy AlphaWire F22138WH103 heat shrinkable tubing now and experience unmatched durability, chemical resistance, and electrical protection for your wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE F22138WH103?
You can click on the BUY or RFQ button to purchase F22138WH103 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part F22138WH103?
You can download the F22138WH103 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of F22138WH103?
ALPHA WIRE
