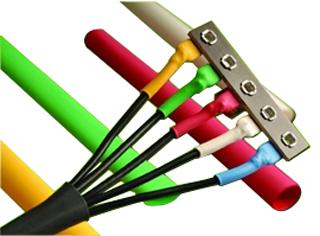

ALPHA WIRE F75034BK105 Heat Shrink Tubing
The F7503/4 BK105 is a black heat shrink tubing made of polyolefin with an adhesive lining, providing a 2:1 shrink ratio and minimum tensile strength of 1500 psi. Its dielectric strength is at least 500V per mil, with a minimum and full recovery temperature of 110°C. Designed for temperature resistance from -55°C to 110°C, it offers excellent environmental and mechanical properties suitable for safety, electrical insulation, and industrial applications. Compliant with UL, CSA, RoHS, and REACH standards, its high-performance features ensure durability and reliability in demanding conditions.
ALPHA WIRE F75034BK105 Heat Shrink Tubing Specifications:
- Color: Black
- Material: Adhesive-lined Polyolefin
- Minimum Recovered ID: 0.375 inch
- Minimum Supplied ID: 0.750 inch
- Minimum Recovered Wall Thickness: 0.037 inch
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 110°C
- Minimum Shrink Temperature: 110°C
- Tensile Strength: 1500 psi, Min ASTM D638
- Elongation: 200%, Min ASTM D638
- Dielectric Strength: 500 V/mil, Min ASTM D876
- Temperature Range: -55°C to 110°C
- Water Absorption: 0.50%, Max ASTM D570
- Shelf Life: 3 Years at 18 to 35°C
- Compliance: UL Standard 224, CSA Standard 198, RoHS, REACH, California Proposition 65
- Certifications: UL, CSA
- Environmental: RoHS 2, REACH compliant, free of hazardous substances
- Chemical Resistance: Passes fluid resistance tests
- Heat Shock Resistance: No cracks at 250°C for 4 hours
- Corrosion and Water Resistance: No corrosion after 16 hours at 0°C, withstands 1000 PSI fluid exposure for 24 hours
Buy the Buy AlphaWire Heat Shrink Tubing Part Number F75034BK105 Online
Purchase AlphaWire F75034BK105 heat shrink tubing online today and benefit from superior insulation, protection against environmental factors, and easy installation. Designed for durability with a 2:1 shrink ratio, it ensures secure electrical connections in demanding industrial environments. Made from high-quality polyolefin with an adhesive lining, this tubing withstands extreme temperatures from -55°C to 110°C. Ideal for electrical insulation, protecting wires, and providing long-lasting reliability in safety-critical applications. Order now to ensure your projects meet the highest standards of safety and efficiency.
Buy AlphaWire F75034BK105 now and experience reliable heat shrinking for industrial wiring and electrical insulation
