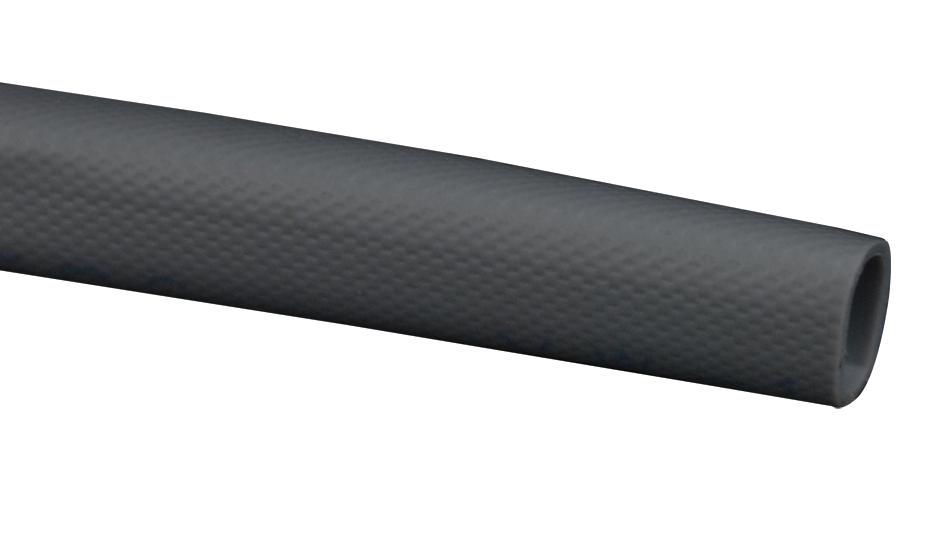

ALPHA WIRE FFLEX12SL008 Silicone Heat Shrink Tubing
The FIT-FLEX-12 is a heat shrinkable tubing made from irradiated silicone rubber, offering excellent temperature resistance from -50°C to 200°C and an approximate 1.7:1 shrink ratio. It features UL VW-1 flame retardancy, high dielectric strength of 200 V/mil, and a maximum specific gravity of 1.20. Suitable for electrical insulation and protection in harsh environments, it complies with RoHS and REACH regulations. The tubing's full recovery occurs at 135°C, with a tensile strength of at least 870 psi and elongation of 350%, ensuring durability in various industrial applications.
ALPHA WIRE FFLEX12SL008 Silicone Heat Shrink Tubing Specifications:
- Material: Irradiated Silicone Rubber
- Shrink Ratio: Approximately 1.7:1
- Maximum Recovered Inner Diameter: 0.492 inches
- Minimum Supplied Inner Diameter: 0.787 inches
- Full Recovery Temperature: 135°C
- Temperature Range: -50°C to 200°C
- Dielectric Strength: 200 V/mil, Min TM D876
- Volume Resistivity: 1x10^14 ohm-cm, Min TM D876
- Specific Gravity: 1.20, Max TM D792
- Tensile Strength: 870 psi, Min TM D638
- Elongation: Min 350%, TM D638
- Water Absorption: 1.00%, Max TM D570
- Flammability: UL VW-1
- Color: Slate
- Chemical Compatibility: RoHS and REACH compliant, Lead Free
- Shelf Life: 5 Years @ 18 to 35°C
Buy the Alpha Wire FFLEX12 U– Reliable Silicone Heat Shrink Tubing for Industrial Applications
Secure your industrial and electrical projects today by choosing Alpha Wire FFLEX12 silicone heat shrink tubing. Designed for durability, flexibility, and high-temperature resistance, this UL VW-1 flame-retardant tubing ensures safe and reliable insulation in demanding environments. Compliance with RoHS and REACH regulations makes it an environmentally friendly choice. Its excellent electrical properties, including high dielectric strength and volume resistivity, provide superior protection against moisture, abrasion, and chemical exposure. Invest in premium quality heat shrink tubing to enhance your operational safety and efficiency now.
Buy Alpha Wire FFLEX12 now and experience unmatched reliability and performance in electrical insulation and protection within harsh environments.
