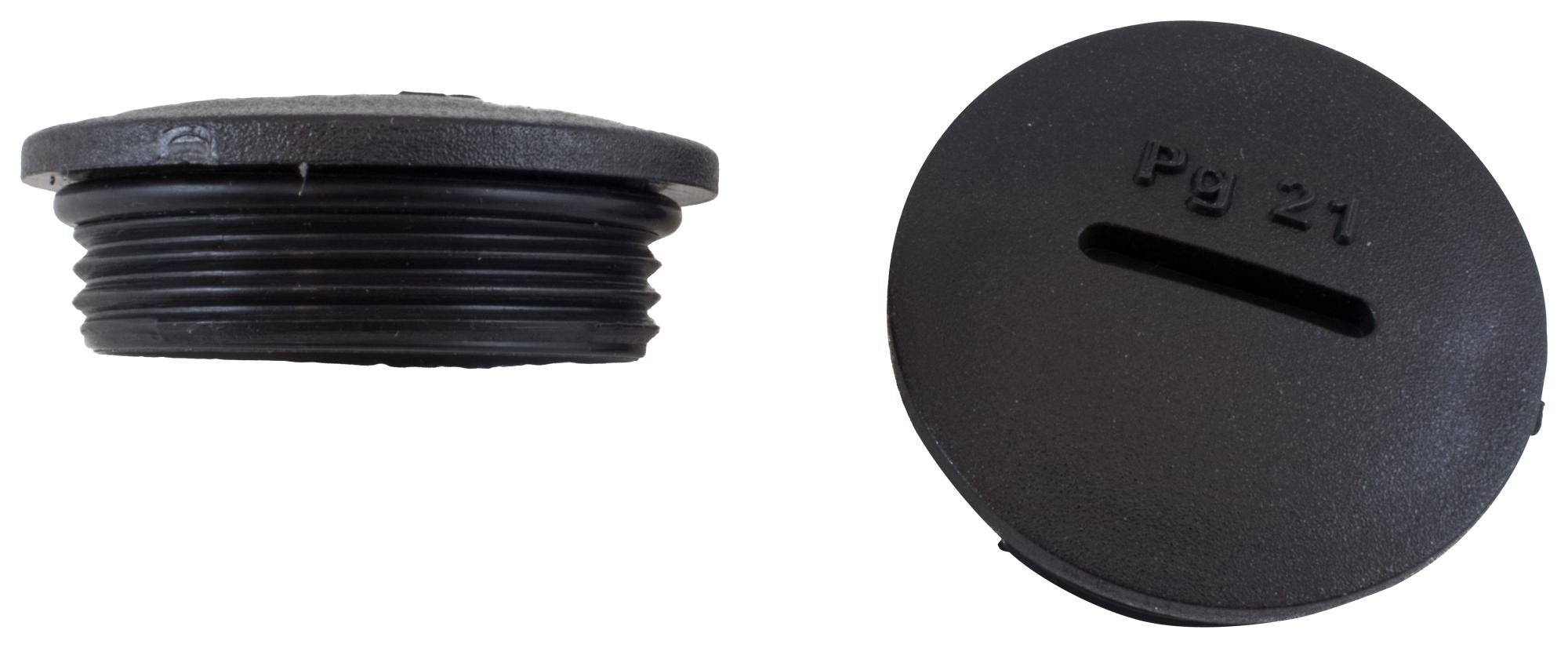

ALPHA WIRE HPP29BK080 PG Hole Plug
The HPP29 BK080 Fit PG Hole Plug, PG 29, is designed for sealing housings when no cable gland is used. Made from high-strength polyamide in black, it provides a secure and durable seal. The plug is easy to install with a screwdriver, making it suitable for industrial applications such as automation, electrical systems, and renewable energy setups. It features a V2 flammability rating according to UL94, with a temperature range of -20°C to +100°C permanently and up to +150°C intermittently. Ideal for protecting electrical assemblies from dust and moisture.
ALPHA WIRE HPP29BK080 PG Hole Plug Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black, RAL 9005
- Flammability: V2 UL94
- Temperature Range: -20°C to +100°C permanently, up to +150°C intermittently
- Thread Type: PG 29 according to DIN 40430
- Thread Length: 8.0 mm
- Outer Diameter: 37.0 mm
- Max Height: 1.457 inches (37 mm)
- Sealing: O-ring CR (Chloroprene Rubber)
- Package: 10 plugs per package
Buy the Alpha Polyamide 6 – Reliable Sealing for Industrial Applications
Purchase the Alpha Series PG Hole Plug today to secure your electrical housings efficiently. Made from durable polyamide, it guarantees a reliable seal in industrial environments such as automation systems and electrical installations. Easy to install with a screwdriver, it offers excellent protection against dust and moisture, complying with UL94 V2 flammability standards. The plug fits PG 29 threaded holes with a maximum height of 1.457 inches and features an O-ring for a tight seal. Available in packages of ten, perfect for bulk procurement for ongoing projects.
Order your Alpha Series HPP29 plug today and ensure a dependable seal for your electrical and automation projects with high-quality polyamide components.
Frequently Asked Questions
Where can I buy ALPHA WIRE HPP29BK080?
You can click on the BUY or RFQ button to purchase HPP29BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part HPP29BK080?
You can download the HPP29BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of HPP29BK080?
ALPHA WIRE
