ALPHA WIRE M1605SL005 Shielded Cable
The M1605SL005 is a high-quality shielded cable designed for industrial and electronic applications. It features 28 AWG TC conductors with 0.010-inch PVC insulation, encased in a durable PVC jacket with a 0.014-inch wall thickness in slate color. The cable includes a TC braid shield with 90% coverage and is constructed with 9.6 twists per foot, ensuring excellent electromagnetic interference protection. It meets UL, military, and CE standards, with a temperature range of -55°C to +105°C, making it suitable for demanding environments requiring reliable signal integrity and durability.
ALPHA WIRE M1605SL005 Shielded Cable Specifications:
- Conductor: 28 AWG TC
- Insulation: 0.010" PVC wall
- Jacket: 0.014" PVC wall, slate color
- Shield: TC braid, 90% coverage
- Twists: 9.6 twists per foot
- Temperature Range: -55°C to +105°C
- Voltage Rating: 600 V
- Capacitance: 35 pf/ft @1 kHz
- Ground Capacitance: 63 pf/ft @1 kHz
- Inductance: 0.22 pH/ft
- Conductor DCR: 66 Ω/1000 ft @20°C
- Shield DCR: 6.6 Ω/1000 ft @20°C
- Cable Lengths: 100, 500, 1000 ft spools
- Construction: Multi-component cabled with Mylar tape wrapping
- Compliance: UL, MIL-W-16878/Type B, CE RoHS, REACH

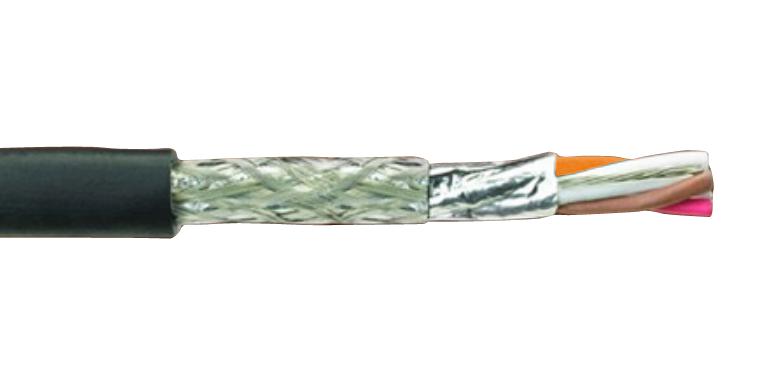

Buy the Buy Alpha Wire M1605 Part Number M1605SL005 Online
Purchase the Alpha Wire M1605SL005 shielded cable online for reliable signal transmission in demanding industrial environments. This cable features 28 AWG conductors with PVC insulation and a durable PVC jacket, providing excellent protection against electromagnetic interference with 90% braid shielding. Rated for temperatures from -55°C to +105°C, it meets UL, CE, and military standards. Various spool sizes are available, making it ideal for control systems, automation, and electronic wiring. Order now to ensure high-quality connectivity with fast delivery and expert support.
Get Alpha Wire M1605SL005 today—designed for excellent electromagnetic shielding and long-lasting durability in industrial use.
Frequently Asked Questions
Where can I buy ALPHA WIRE M1605SL005?
You can click on the BUY or RFQ button to purchase M1605SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part M1605SL005?
You can download the M1605SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of M1605SL005?
ALPHA WIRE
