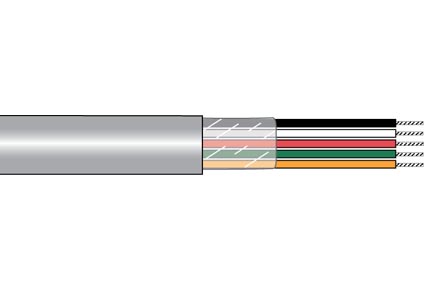

ALPHA WIRE M38904SL005 Multi Conductor Cable Assembly
The ALPHA WIRE M38904 SL005 is a robust multi-conductor cable assembly designed for demanding applications. Constructed with 24 AWG stranded conductors, insulated with semi-rigid PVC, and jacketed with a durable slate PVC outer layer, this cable provides excellent signal transmission and protection. The cable is cabled with 8 twists per foot, ensuring flexibility and ease of routing. It is RoHS compliant and meets various industry standards, making it a versatile choice for a wide range of industrial and commercial uses. The clear Mylar core wrap enhances the cable's structural integrity and provides additional protection to the conductors.
ALPHA WIRE M38904SL005 Multi Conductor Cable Assembly Specifications:
- Conductor AWG: 24 (7/32)
- Conductor Material: TC
- Insulation Material: PVC
- Insulation Wall Thickness: 0.010"
- Jacket Material: PVC
- Jacket Wall Thickness: 0.032"
- Number of Conductors: 4
- Color Code: Alpha Wire Color Code E
- Twists per Foot: 8.0
- Cable Diameter: 0.173"
- Max Cable Diameter: 0.184"
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.1 Lbs
- Voltage Rating: 300 VRMS
- Capacitance: 21.8 pf/ft @1 kHz
- Inductance: 0.19 µH/ft
- Conductor DCR: 26 Ω/1000ft @20°C
- UL Style: AWM/STYLE 2464
- CMG Rating: 75°C
- CSA Type: C(UL) TYPE CMG
- RoHS Compliant: Yes
- REACH Compliant: Yes
- California Proposition 65: Compliant
Buy the M38904 SL005 ALPHA WIRE Multi Conductor Cable Assembly | myMectronic
Purchase the ALPHA WIRE M38904 SL005 cable assembly securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE M38904SL005?
You can click on the BUY or RFQ button to purchase M38904SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part M38904SL005?
You can download the M38904SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of M38904SL005?
ALPHA WIRE
