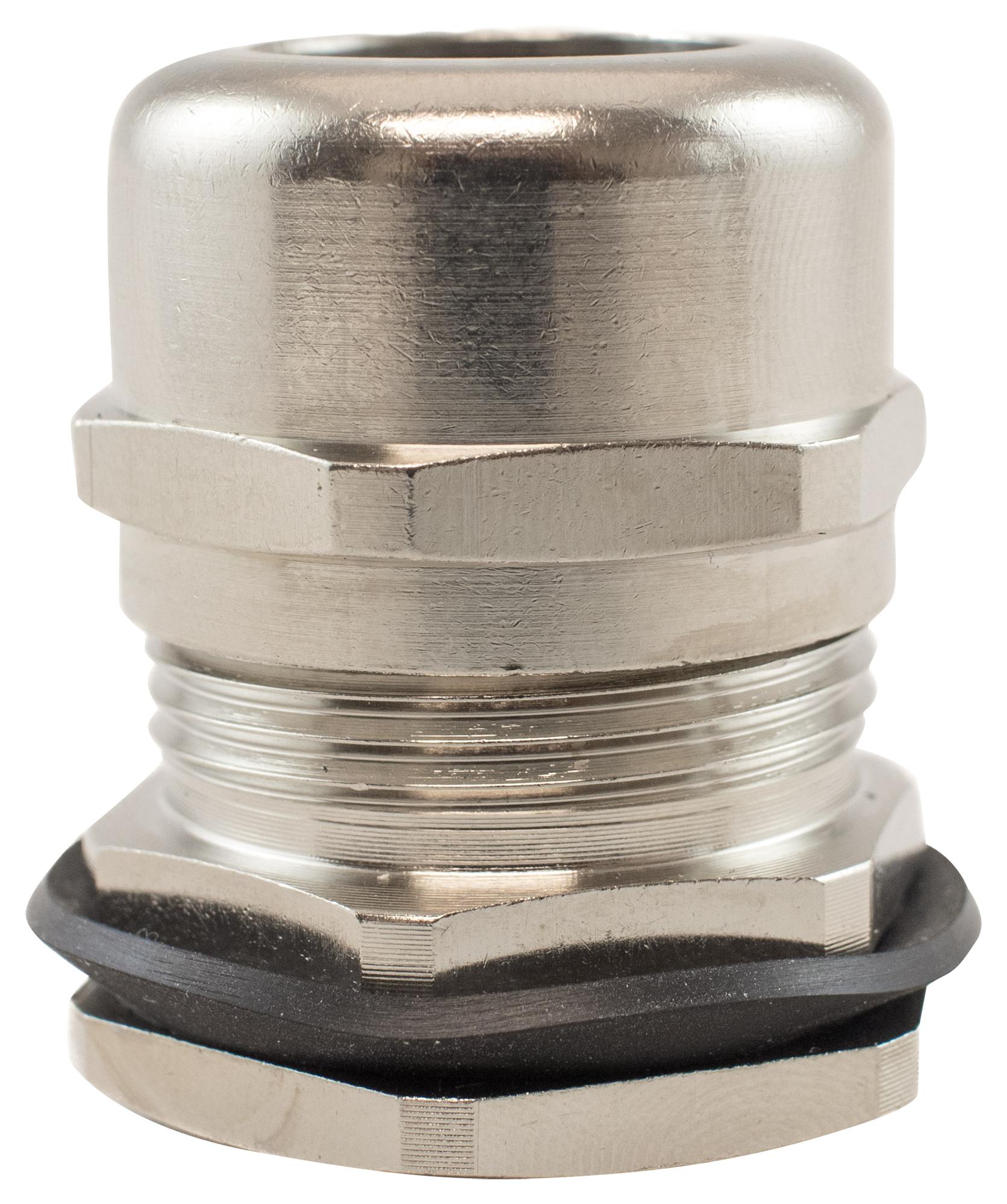

ALPHA WIRE MES12NC080 Cable Gland
The MES12 NC080 Alpha Fit® Standard Dome Design Metric Cable Gland provides excellent strain relief and environmental protection for cables in industrial applications. It features a durable, nickel-plated brass body and cap, combined with high-quality chloroprene rubber seals to prevent water ingress and withstand harsh conditions. Rated IP68 for dust and water resistance up to 30 minutes at 5 bar pressure, and also conforms to IP66 standards, ensuring reliable performance. UL listed (514), CSA certified (C22.2), with a temperature range of -20°C to +100°C permanently and -40°C to +150°C intermittently, making it ideal for automation, electrical, and renewable energy sectors.
ALPHA WIRE MES12NC080 Cable Gland Specifications:
- Material: Brass, Nickel plated
- Seals: Chloroprene Rubber (CR)
- Protection Class: IP68 (5 Bar, 30 min), IP66
- Flammability: V2 UL 94
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -40°C to +150°C
- Thread Size: M12x1.5
- Clamping Range: 3.0-6.5 mm
- Thread Length: 60 mm
- Outer Diameter: 14 mm
- Spanner Width: 14 mm
- Max Height: 15.5 mm
- Certifications: UL 514, CSA C22.2
- Packaging: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number MES12NC080 Online
Purchase the Alpha Wire MES12NC080 Cable Gland online and ensure top-quality cable management with environmental resistance. Designed from nickel-plated brass and equipped with chloroprene rubber seals, these glands offer IP68 protection, withstand temperatures from -20°C to +100°C permanently, and are UL listed and CSA certified. Perfect for automation, electrical installations, and renewable energy, they provide durable, reliable sealing against dust, water, and pressure. Easy to install with comprehensive packaging of 10 units per box, these glands guarantee dependable performance in demanding industrial settings.
Get Alpha Wire MES12NC080 today—built for reliable strain relief and long-lasting environmental protection in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE MES12NC080?
You can click on the BUY or RFQ button to purchase MES12NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MES12NC080?
You can download the MES12NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MES12NC080?
ALPHA WIRE
