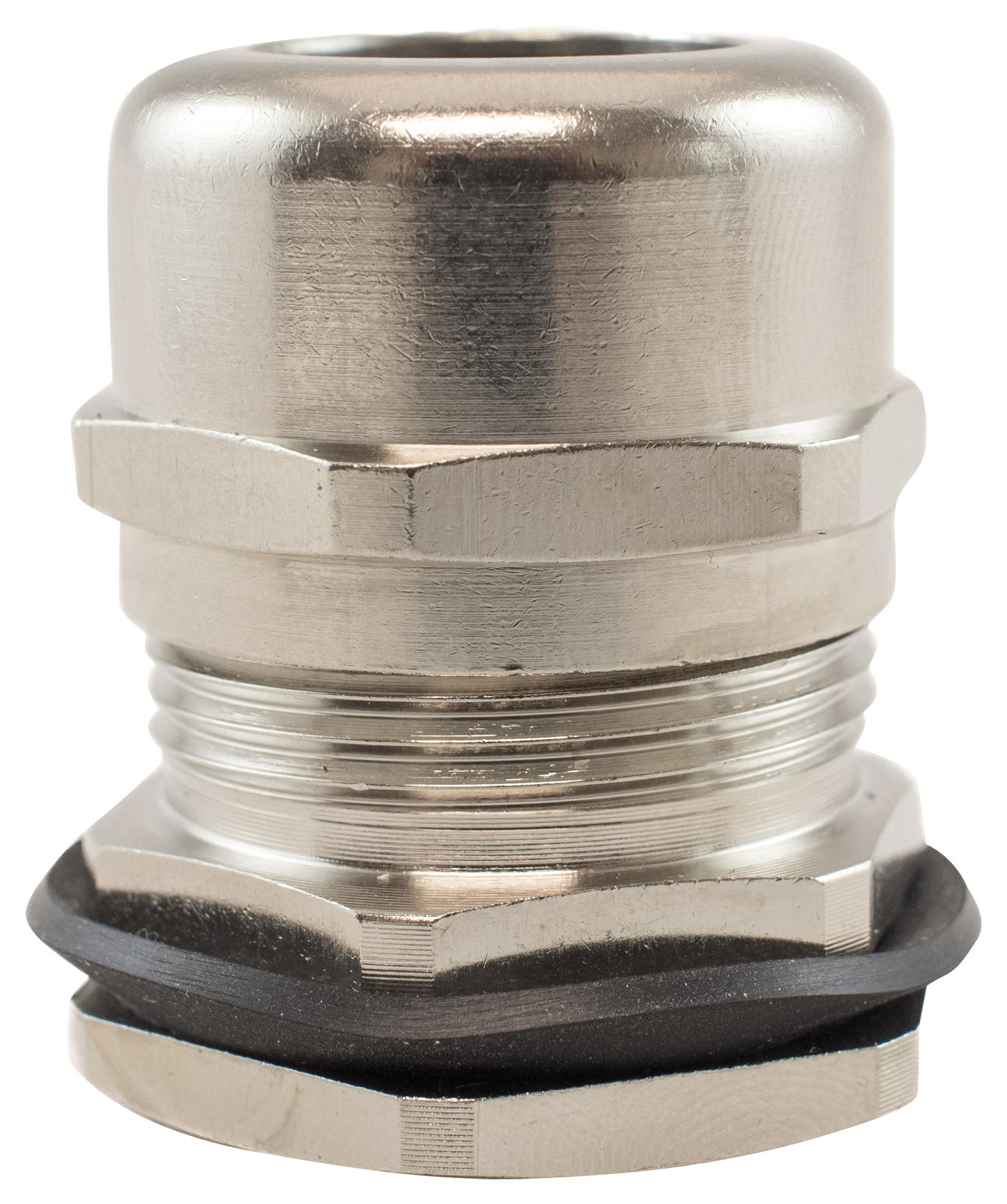

ALPHA WIRE MPG7NC080 Cable Gland
The MPG7 NC080 Alpha Fit® Standard Dome Design PG Cable Gland offers reliable cable strain relief and environmental protection with a high-strength nickel-plated brass body and cap. Equipped with robust rubber seals, it prevents water ingress, withstands pressure up to IP68 (5 bar, 30 minutes), and is rated IP66. The gland features a durable design suitable for industrial automation, electrical systems, renewable energy, and harsh environments. Certified UL and CSA, it operates within -20°C to +100°C (permanent) and -40°C to +150°C (intermittent), ensuring long-term reliability in demanding conditions.
ALPHA WIRE MPG7NC080 Cable Gland Specifications:
- Material: Brass, Nickel plated
- Seals: CR (Chloroprene Rubber)
- Protection Class: IP68 5 Bar for 30 min, IP66
- Flammability: V2 UL94
- Temperature Rating: -20°C to +100°C (permanent), -40°C to +150°C (intermittent)
- Ingress Protection: IP68/IP66
- Thread Sizes: PG7 (3.0-6.5 mm), PG9 (4.0-8.0 mm), PG11 (5.0-10.0 mm), PG13.5 (6.0-12.0 mm), PG16 (10.0-14.0 mm), PG21 (13.0-18.0 mm), PG29 (18.0-25.0 mm)
- Certification: UL listed, CSA certified
- Usage: Suitable for electrical enclosures, industrial automation, renewable energy, and outdoor applications
- Dimensions: Vary by size; PG7: Thread length 6.0 mm, Spanner width 14 mm, Max height 15.5 mm; PG29: Thread length 37.0 mm, Spanner width 40 mm, Max height 44.5 mm
Buy the Alpha Wire MPG7NC080 – Reliable Cable Gland for Industrial Applications
Purchase the Alpha Wire MPG7NC080 cable gland online today to ensure top-quality cable management and environmental protection. This high-performance gland features durable nickel-plated brass construction, seals to prevent water and dust ingress, and certifications for electrical safety. Perfect for industrial automation, outdoor electrical installations, and renewable energy systems, it offers a secure fit and long-term durability in harsh conditions. Order now to optimize your electrical enclosures with our trusted cable gland solution, ensuring safety and reliability for your projects.
Buy Alpha Wire MPG7NC080 now and experience unmatched reliability and performance in demanding electrical environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE MPG7NC080?
You can click on the BUY or RFQ button to purchase MPG7NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MPG7NC080?
You can download the MPG7NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MPG7NC080?
ALPHA WIRE
