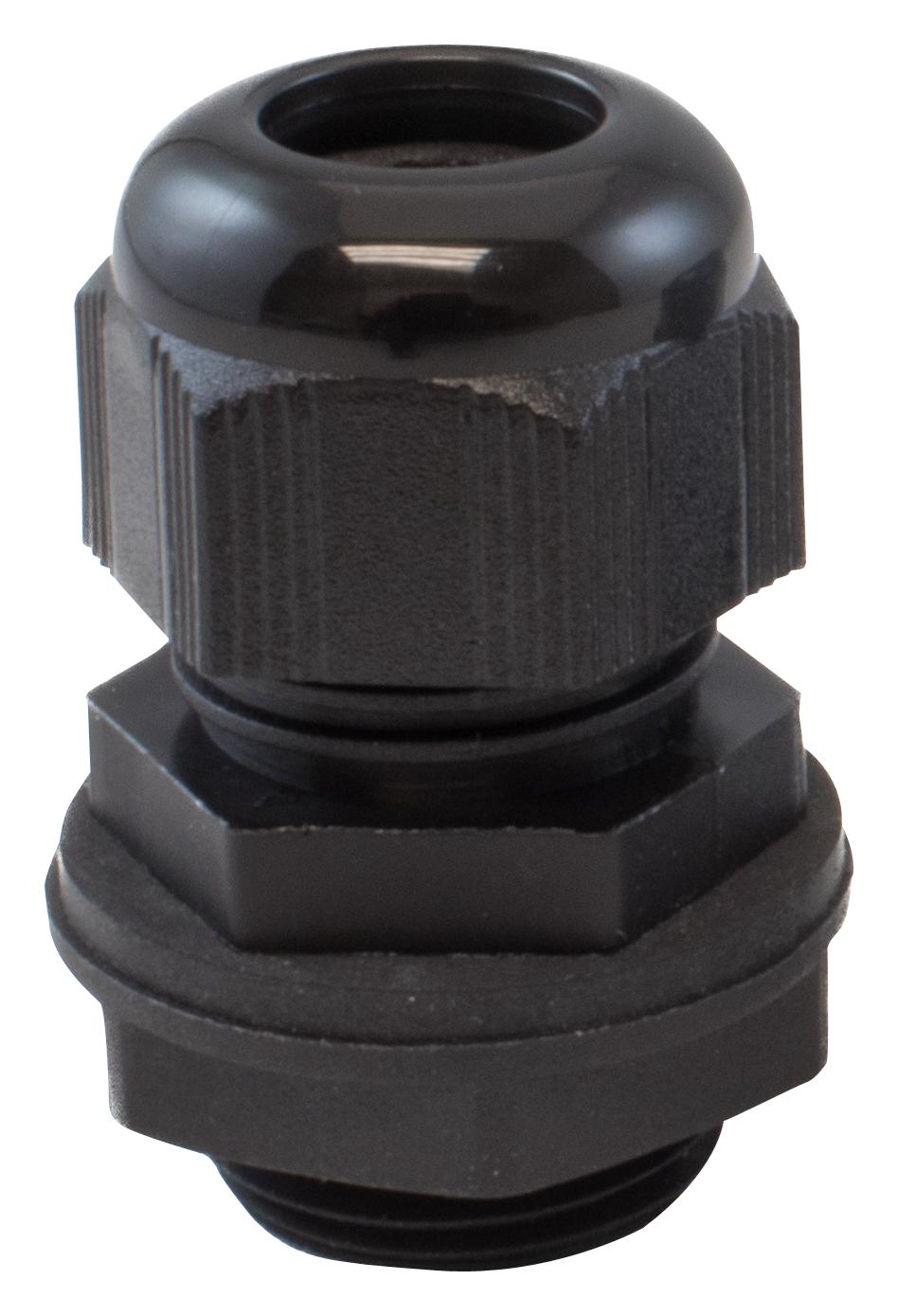

ALPHA WIRE PMC12BK080 Cable Gland
The PMC12 BK080 Alpha Fit® Standard Dome Design Metric Cable Gland is a high-quality cable management component designed to provide excellent strain relief and environmental protection. Made from high-strength polyamide 6 in black, it features robust rubber seals to prevent water ingress and withstand environmental pressures. The gland is rated for protection class IP68 (5 bar for 30 minutes) and IP66, offering dust, dirt, and sand resistance, as well as watertight sealing. It includes a locknut and gasket for a complete installation solution. Suitable for industries like renewable energy, industrial automation, and electrical equipment, it is UL listed and CSA certified, with a temperature range from -20°C to +100°C permanents and up to +150°C intermittently. Flammability rated to UL94V-2.
ALPHA WIRE PMC12BK080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Black, RAL 9005
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL94V-2
- Temperature Range: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: Metric according to EN 60423
- Thread Size: M-12x1.5, M-16x1.5, M-20x1.5, M-25x1.5, M-32x1.5, M-40x1.5
- Clamp Range: 30-65 mm, 5.0-10.0 mm, 6.0-12.0 mm, 11.0-17.0 mm, 15.0-21.0 mm, 19.0-28.0 mm
- Thread Length: 15-46 mm depending on size
- Outer Diameter: 22.5-47 mm depending on size
- Included Accessories: Locknut, gasket
- Certification: UL Listed, CSA Certified
- Package Quantity: 10 glands per package
Buy the Alpha Cable Management Parts PMC12 – Reliable Cable Gland for Industrial Applications
Enhance your electrical and automation projects with Alpha's durable cable glands. Designed for tough industrial environments, these glands provide excellent sealing, environmental resistance, and strain relief. Made from high-strength polyamide 6, they are rated IP68 and IP66 for dust and water protection, suitable for outdoor and hazardous locations. With UL and CSA certifications, they meet industry standards for safety and reliability. Available in various sizes, these cable glands are perfect for renewable energy, manufacturing, and control systems, ensuring secure connections and long-lasting performance.
Order your Alpha Series PMC12 cable glands today and ensure your electrical systems are protected with durable, high-quality sealing solutions.
