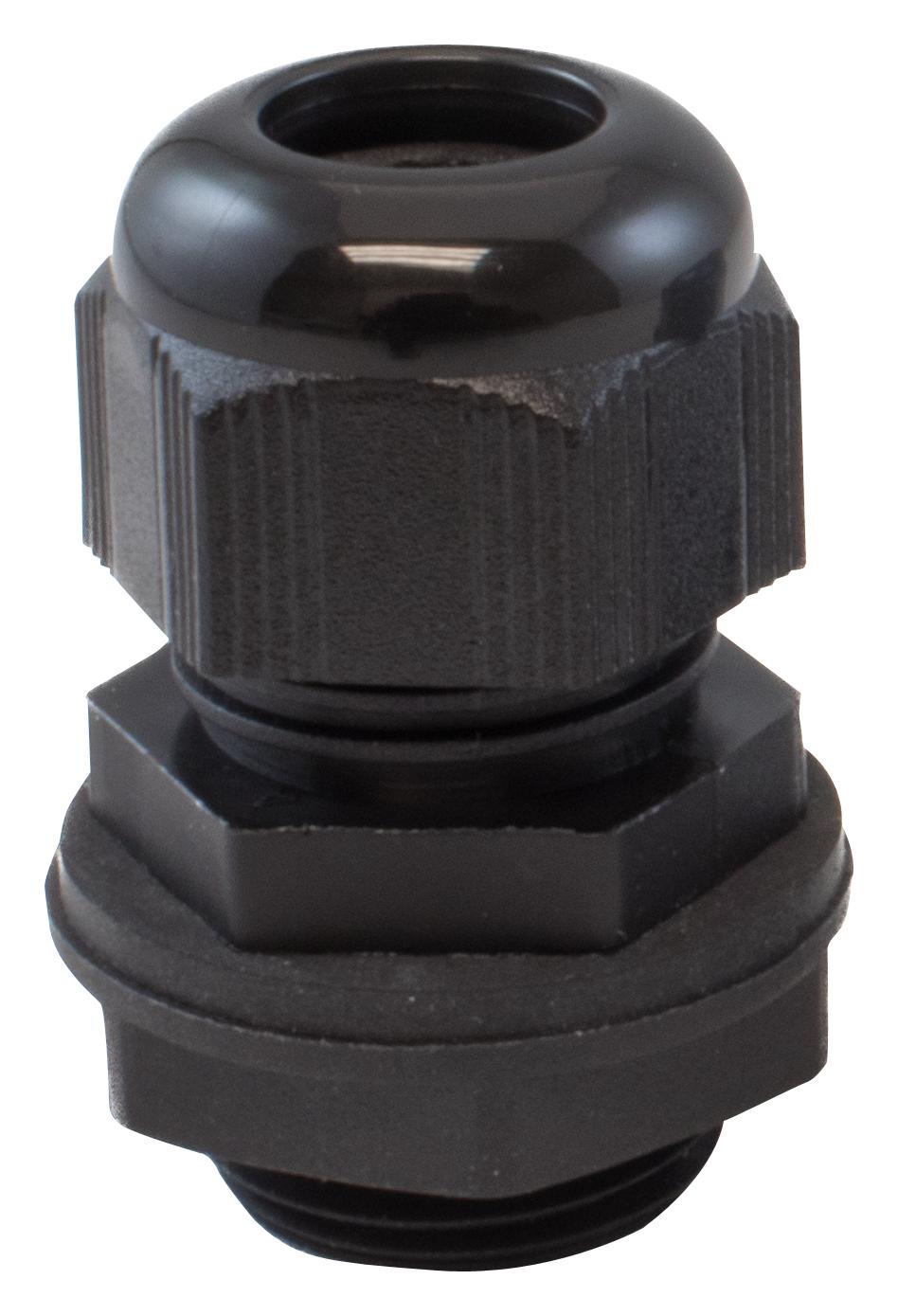

ALPHA WIRE PMC16BK080 Cable Gland
The PMC16 BK080 Alpha Fit® Standard Dome Design Metric Cable Gland is a high-quality solution designed to provide reliable cable strain relief and environmental protection. Made from durable polyamide 6 in black, it features a robust body with rubber seals to prevent water ingress and withstand environmental factors. The gland is rated IP68, offering water resistance up to 5 bar for 30 minutes, and IP66 protection. It includes a locknut and gasket for complete installation security. The product is UL listed (514), CSA certified (C22.2), and rated for temperatures from -20°C to +100°C continuously, and -30°C to +150°C intermittently. It is suitable for use in industrial automation, electrical applications, and renewable energy sectors.
ALPHA WIRE PMC16BK080 Cable Gland Specifications:
- Material: Polyamide 6 (Body and Cap)
- Seal Material: Chloroprene Rubber (CR)
- Color: Black, RAL 9005
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: V2 UL94
- Temperature Rating: -20°C to +100°C (continuous), -30°C to +150°C (intermittent)
- Thread Types: Metric according to EN 60423
- Thread Sizes Available: M-12x1.5, M-16x1.5, M-20x1.5, M-25x1.5, M-32x1.5, M-40x1.5
- Clamping Range: 30-65 mm, 5.0-10.0 mm, 6.0-12.0 mm, 11.0-17.0 mm, 15.0-21.0 mm, 19.0-28.0 mm respectively
- Thread Lengths: Ranging from 8 mm to 10 mm
- Outer Diameter: Up to 46 mm depending on size
- Included Components: Locknut and gasket
- Certifications: UL Listed (514), CSA Certified (C22.2)
Buy the Alpha Wire PMC16 BK080 – Reliable Cable Gland for Industrial Applications
Purchase the Alpha Wire PMC16BK080 cable gland online today and ensure your electrical systems are protected against water, dust, and environmental factors. Made from durable polyamide 6, this high-quality gland offers IP68 water resistance rated for 5 bar for 30 minutes, ideal for industrial automation, electrical equipment, and renewable energy sectors. Certified by UL and CSA, it withstands temperatures from -20°C to +100°C continuously, with intermittent peaks to +150°C. Secure your project with reliable, easy-to-install cable management solutions available for online purchase now.
Order your Alpha Wire PMC16BK080 high-quality metric cable gland today and secure your electrical installations with dependable environmental protection.
