ALPHA WIRE PMC40BK080 Cable Gland

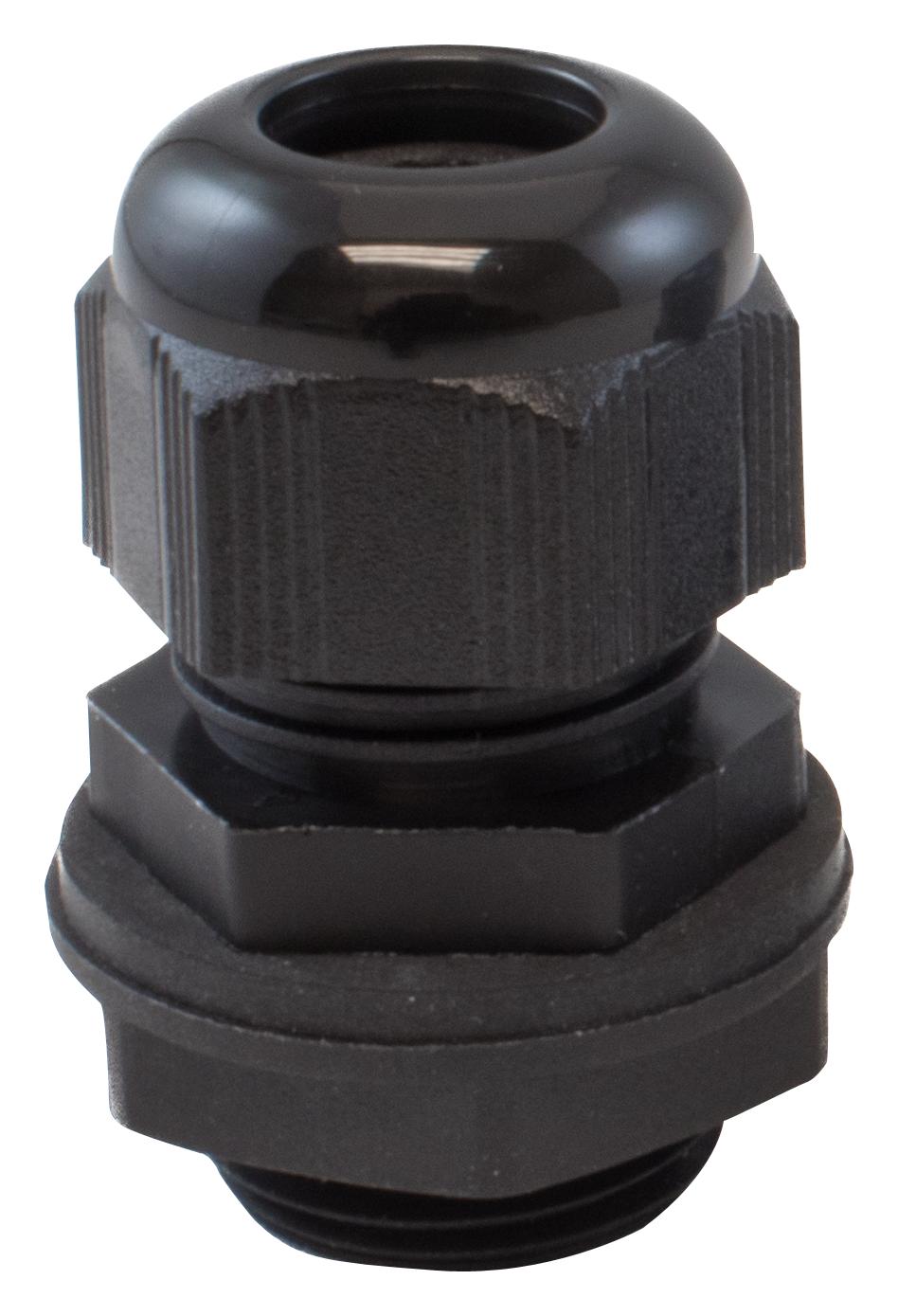

The PMC40 BK080 Alpha Fit® Standard Dome Cable Gland ensures reliable cable strain relief and environmental protection with a durable polyamide 6 body in black. Featuring rubber seals for water ingress prevention and rated IP68 (5 bar for 30 minutes) along with IP66, it provides excellent resistance against dust, dirt, and moisture. The gland includes a locknut and gasket for secure installation, making it ideal for industrial automation, electrical systems, and renewable energy sectors. Certified by UL and CSA, it operates within temperature ranges from -20°C to +100°C permanently and -30°C to +150°C intermittently, with UL94V-2 flammability rating.
ALPHA WIRE PMC40BK080 Cable Gland Specifications:
- Material: Polyamide 6 (Body and Cap)
- Seal Material: Chloroprene Rubber
- Color: Black, RAL 9005
- Protection Class: IP68 at 5 Bar for 30 min, IP66
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: Metric according to EN 60423
- Thread Size: M-40x1.5
- Thread Length: 46 mm
- Clamp Range: 19-28 mm
- Outer Dimensions: Diameter approx. 46 mm
- Certification: UL Listed, CSA Certified
Buy the Alpha Wire PMC40 – Reliable Cable Gland for Industrial Applications
Order the Alpha Wire PMC40 BK080 cable gland online today and enjoy top-quality cable strain relief for industrial and renewable energy applications. This robust gland features a durable polyamide 6 construction in black, providing excellent water and dust protection with IP68 and IP66 ratings. It includes rubber seals, a locknut, and gasket for secure installation, certified by UL and CSA for safety and reliability. Designed to operate from -20°C to +100°C permanently and -30°C to +150°C intermittently, it is perfect for demanding environments requiring durable and dependable cable management solutions.
Get Alpha Wire PMC40 today—built for precision, environmental protection, and long-lasting durability in electrical and automation systems.
