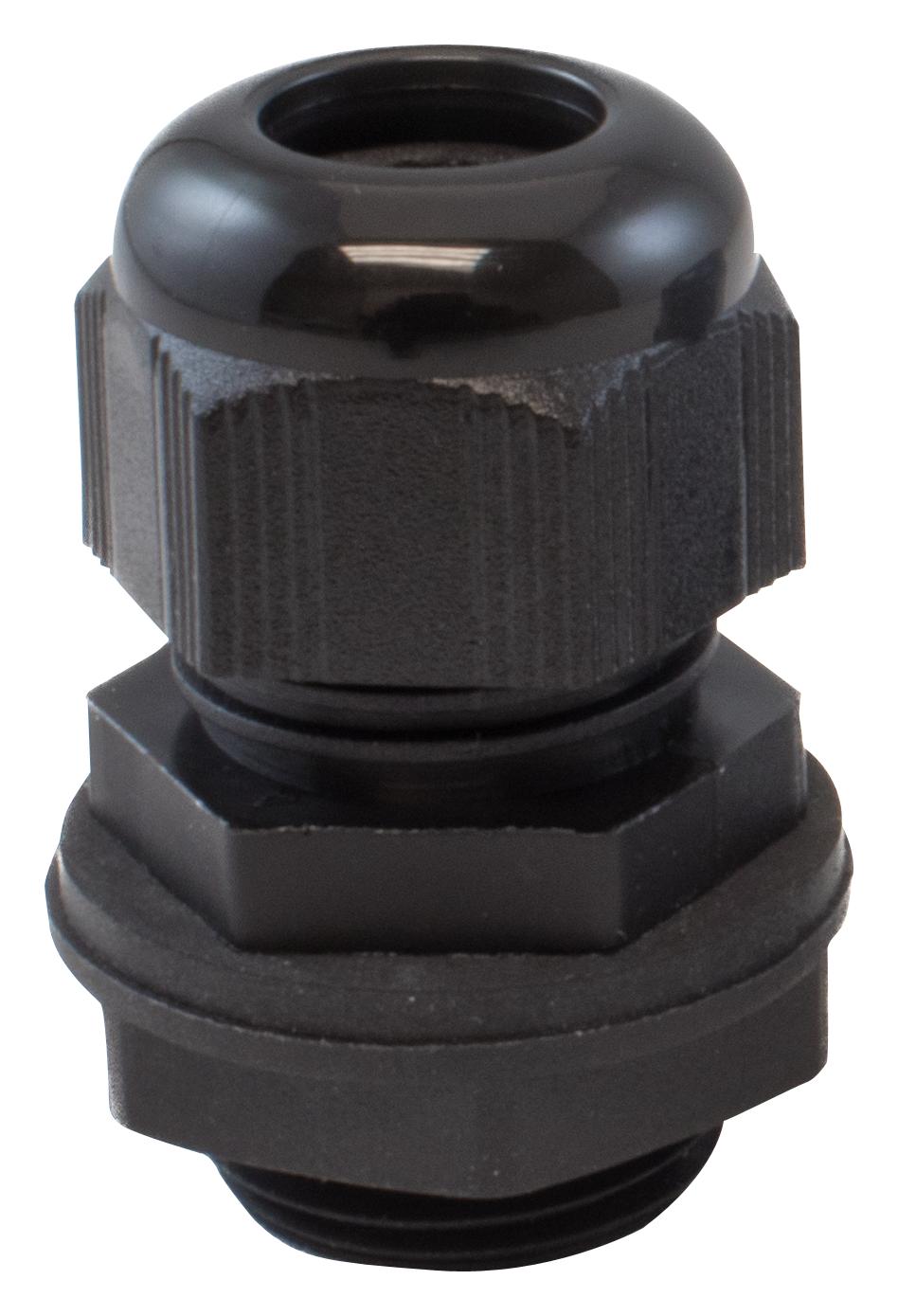

ALPHA WIRE PNC12BK080 NPT Cable Gland
The PNC1/2 BK080 Alpha Fit® Standard Dome Design NPT Cable Gland offers dependable cable strain relief and environmental protection, crafted from high-strength polyamide 6 in black. Features robust rubber seals ensuring watertight IP68 protection (5 bar, 30 min), with included locknut and gasket for straightforward installation. Suitable for industrial automation, electrical, and renewable energy applications, it resists dust, dirt, and sand. Certified UL514 and CSA C22.2, it has a UL94V-2 flammability rating. Its temperature range spans -20°C to +100°C permanently, and -30°C to +150°C intermittently, ensuring high durability in demanding environments.
ALPHA WIRE PNC12BK080 NPT Cable Gland Specifications:
- Material: Body PA 6 (Polyamide 6), Seal CR (Chloroprene Rubber)
- Color: Black, RAL 9005
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: UL94V-2
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: NPT according to ANSI B1.20.1
- Thread Size: 1/2 inch
- Clamping Range: 10.0-14.0 mm
- Thread Length: 15 mm
- Spanner Width: 21.34 mm
- Outer Diameter: 27 mm
- Overall Height: 30.9 mm
- Certifications: UL UL 514, CSA C22.2
Buy the Alpha High-Strength Cable Gland – Reliable NPT Sealing for Industrial Applications
Purchase the Alpha SeriesNPT Cable Gland PNC12BK080 today to ensure reliable cable sealing in challenging environments. Crafted from durable polyamide 6 with rubber seals, it offers IP68 protection and complies with UL and CSA standards. Ideal for industrial automation, electrical installations, and renewable energy sectors, this gland resists dust, dirt, and sand while maintaining excellent temperature performance from -20°C to +150°C. Easy to install with included components, this high-quality cable gland guarantees secure, watertight, and environmentally protected cable connections for demanding applications.
Order your Alpha SeriesP N C12BK080 cable gland today and secure your industrial connections with durable, IP68-rated sealing and high-quality materials.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC12BK080?
You can click on the BUY or RFQ button to purchase PNC12BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC12BK080?
You can download the PNC12BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC12BK080?
ALPHA WIRE
