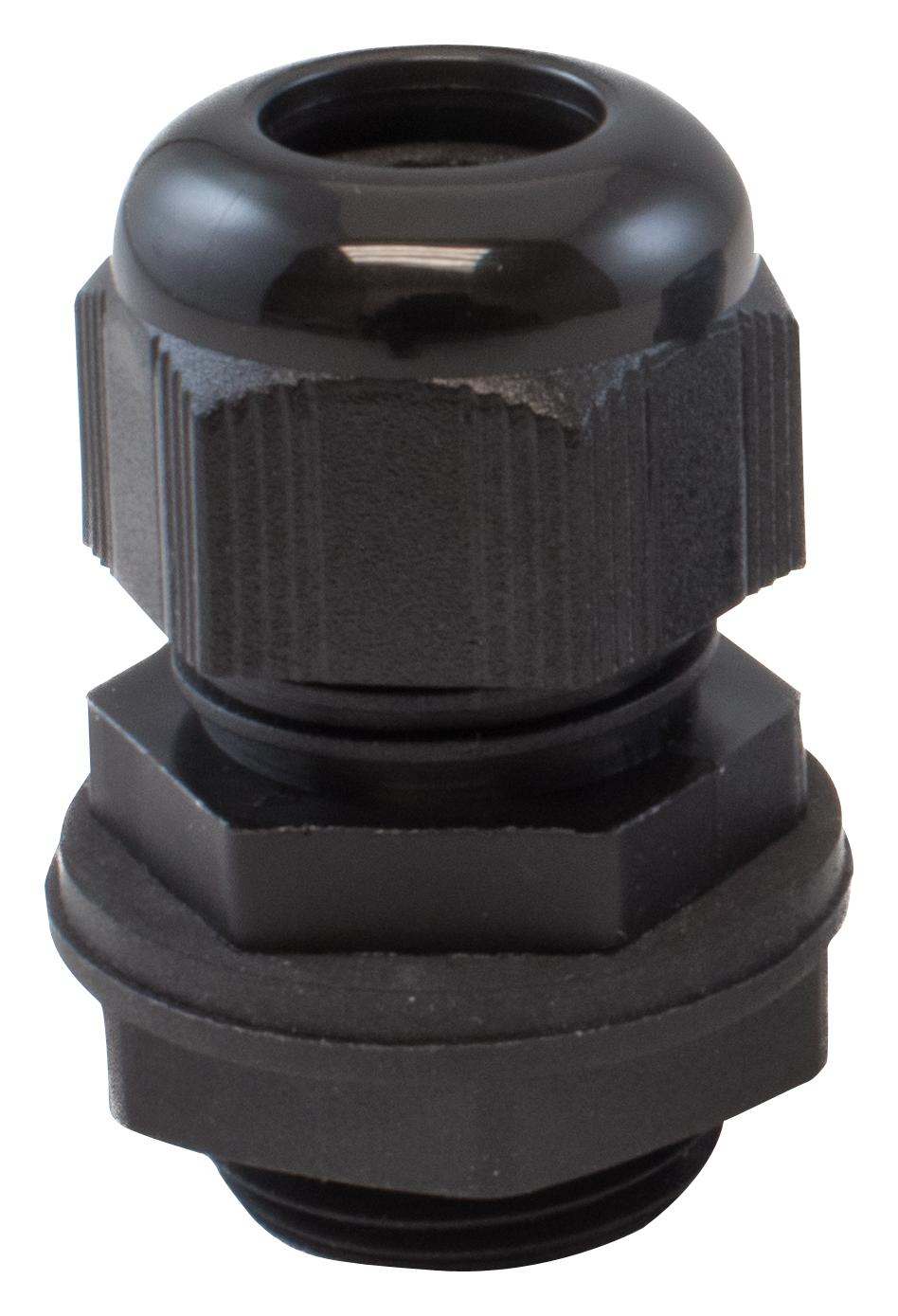

ALPHA WIRE PNC38BK080 Cable Gland
The PNC3/8 BK080 Alpha Fit® Standard Dome Design NPT Cable Gland provides secure cable strain relief and environmental sealing for industrial and electrical applications. Made from durable polyamide 6 in black, it features rubber seals rated IP68 (5 bar, 30 minutes) and IP66 for dust, dirt, and water resistance. It includes a locknut and gasket for a complete seal. Also UL listed 514, CSA certified C22.2, with a UL94V-2 flammability rating, suitable for harsh conditions. Designed to operate effectively between -20°C to +100°C continuously and -30°C to +150°C intermittently.
ALPHA WIRE PNC38BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black (RAL 9005)
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: UL94V-2
- Temperature Range: -20°C to +100°C continuous; -30°C to +150°C intermittent
- Thread Type: NPT according to ANSI B1.20.1
- Approvals: UL UL 514, CSA CSA C22.2
- Clamping Range: 5.0-10.0 mm (NPT 3/8 inch), 10.0-14.0 mm (NPT 1/2 inch), 13.0-18.0 mm (NPT 3/4 inch), 18.0-25.0 mm (NPT 1 inch)
- Thread Length (TL): 15 mm
- Spanner Width (SW): 22 mm for 3/8 inch, 24 mm for 1/2 inch, 27 mm for 3/4 inch, 33 mm for 1 inch
- Outer Diameter (D): 22 mm for 3/8 inch, 24 mm for 1/2 inch, 33 mm for 3/4 inch, 42 mm for 1 inch
- Part Number: PNC38BK080
- Includes: Locknut and gasket for sealing
- Standard Packaging: 10 glands per package
Buy the Alpha Series PNC3/8 BK080 Cable Gland: PNC38BK080
Enhance your electrical and industrial projects with the Alpha Series PNC3/8 BK080 waterproof cable gland. Crafted from high-strength polyamide 6, it offers superior sealing, resistance to dust, dirt, and water, rated at IP68 and IP66. Suitable for harsh environments, its UL listed and CSA certified construction ensures safety and quality. This cable gland withstands temperatures from -20°C to +100°C continuously and -30°C to +150°C intermittently. Order online now for quick delivery and dependable performance in your electrical setups.
Order your Alpha Series PNC3/8 BK080 waterproof cable gland today and secure your electrical installations with reliable environmental protection.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC38BK080?
You can click on the BUY or RFQ button to purchase PNC38BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC38BK080?
You can download the PNC38BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC38BK080?
ALPHA WIRE
