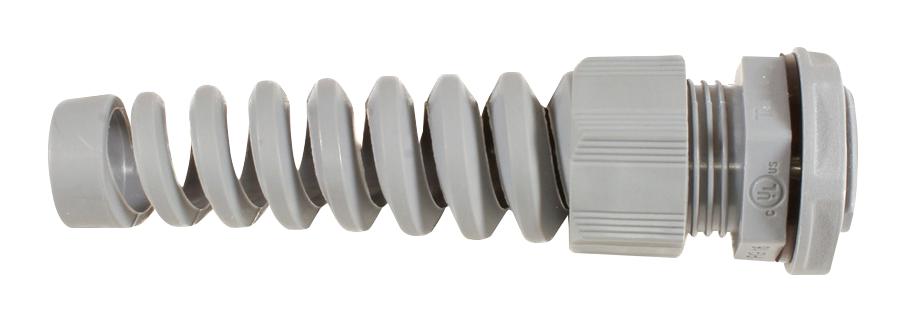

ALPHA WIRE PNS12SL080 NPT Cable Gland
The PNS1/2 SL080 Fit® Flexible Spiral Design NPT Cable Gland offers premium cable strain relief and environmental protection. Crafted from high-strength polyamide 6 in slate color (RAL 7001), it provides dust, dirt, and sand resistance, along with waterproofing rated IP68 (5 bar pressure for 30 minutes) and IP66. The gland includes a locknut and gasket for a complete strain relief solution. It features robust rubber seals to prevent water ingress, is UL listed (514), CSA certified (C22), and has a flammability rating of UL94V-2. Suitable for temperatures from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent), making it ideal for use in industrial automation, electrical systems, and renewable energy applications.
ALPHA WIRE PNS12SL080 NPT Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: RAL 7001 (Slate Gray)
- Protection Class: IP68 at 5 bar for 30 minutes, IP66
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: NPT
- Thread Size: 1/2 inch (6.0-12.0 mm clamp range)
- Thread Length: 15 mm
- Outer Diameter: 24 mm
- Spanner Width: 0.945 inch
- Max Outer O: 27.6 mm
- Height: 27.8 mm
- Includes: Locknut and gasket
- Flammability: UL94V-2
- Certifications: UL 514, CSA C22.2
- Approvals: UL, CSA
Buy the Alpha Series PNS1/2 NPT Cable Gland: PNS12SL080
Secure your electrical and automation projects with the Alpha Series PNS12SL080 NPT Cable Gland, crafted from durable polyamide 6 and rated for IP68/IP66 protection. This high-quality gland offers excellent dust, dirt, and water resistance, making it ideal for harsh environments. Its UL and CSA certifications ensure safety and compliance. Designed for reliable strain relief, it includes a locknut and gasket for a complete installation. Suitable for temperatures from -20°C to +100°C, it’s perfect for industrial automation, renewable energy, and electrical systems. Order online today for dependable quality.
Order your Alpha Series PNS12SL080 NPT cable gland today and ensure reliable environmental protection and strain relief in your industrial applications.
