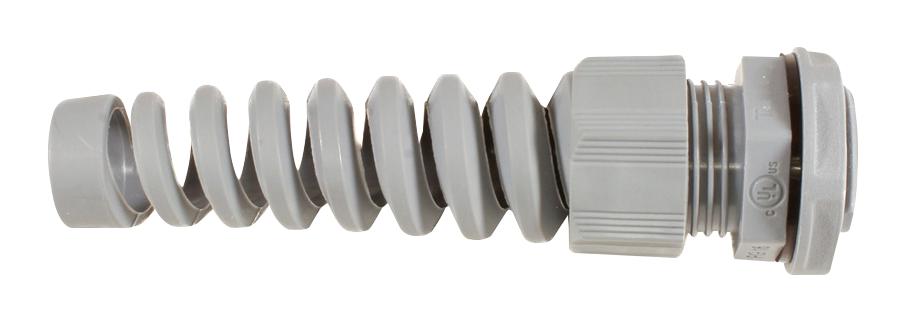

ALPHA WIRE PNS38SL080 NPT Cable Gland
The PNS3/8 SL080 Fit® Flexible Spiral Design NPT Cable Gland offers reliable cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in slate gray (RAL 7001), it is resistant to dust, dirt, sand, and water, with an IP68 rating (5 bar, 30 minutes). The gland is complete with a locknut and gasket, providing a comprehensive sealing solution. It features robust rubber seals to prevent water ingress under pressure, is UL94V-2 flammability rated, and operates within temperature ranges of -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). Certified by UL and CSA, it is suitable for industrial automation, electrical applications, and renewable energy industries.
ALPHA WIRE PNS38SL080 NPT Cable Gland Specifications:
- Material: Polyamide 6
- Color: Gray, RAL 7001
- Protection Class: IP 68 (5 bar, 30 minutes)
- Flammability: UL94 V-2
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: NPT
- Sizes Available: 3/8", 1/2", 3/4"
- Clamping Range: 5.0-10.0 mm for 3/8", 6.0-12.0 mm for 1/2", 13.0-18.0 mm for 3/4"
- Thread Length: 15.0 mm
- Outer Diameter: 17.14 mm for 3/8", 21.34 mm for 1/2", 26.67 mm for 3/4"
- Spanner Width: 22 mm for 3/8", 24 mm for 1/2", 33 mm for 3/4"
- Max Height: 81.5 mm for 3/8", 93.3 mm for 1/2", 117.9 mm for 3/4"
- Approvals: UL, CSA
Buy the Alpha Wire PNS3/8 SL080 – Reliable NPT Cable Gland for Industrial Applications
Order the Alpha Wire PNS3/8 SL080 cable gland online today for robust cable strain relief and environmental sealing solutions. Constructed from durable polyamide 6, it provides IP68 protection, excellent resistance to dust, dirt, and water, and operates efficiently within temperature ranges from -20°C to +150°C. Suitable for industrial automation, electrical, and renewable energy sectors, this gland includes a locknut and gasket to ensure a secure fit. Purchase online to ensure quick delivery and quality performance for your electrical enclosures and automation projects.
Get Alpha Wire PNS3/8 SL080 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNS38SL080?
You can click on the BUY or RFQ button to purchase PNS38SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNS38SL080?
You can download the PNS38SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNS38SL080?
ALPHA WIRE
