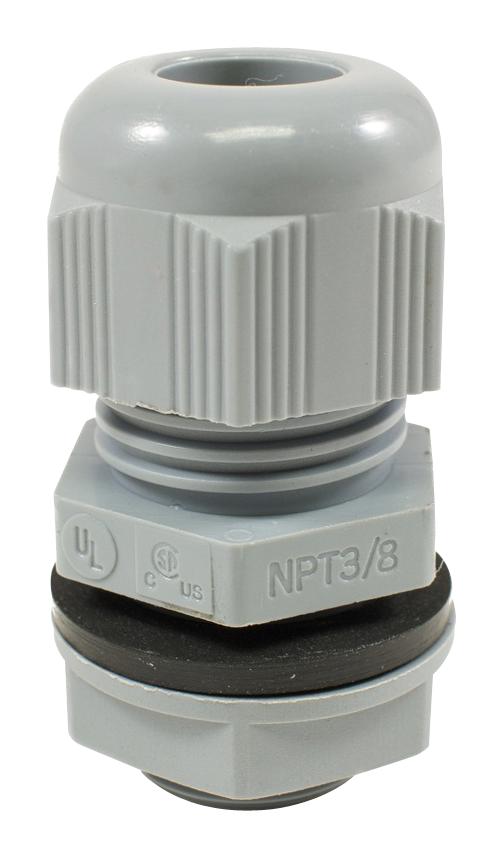

ALPHA WIRE PPC7SL080 Cable Gland
The PPC7 SL080 Fit® Standard Dome Design PG Cable Gland offers reliable cable strain relief and environmental protection. Crafted from high-strength polyamide 6 in slate color (RAL 7001), it is resistant to dust, dirt, sand, and water, conforming to IP68 standards for waterproofing (5 bar, 30 minutes). The package includes a locknut and gasket for a complete sealing solution. Equipped with robust rubber seals, it effectively prevents water ingress and pressure. The cable gland is UL listed (514), CSA certified (C22), and rated to UL94V-2 flammability. It operates within a temperature range of -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). Suitable for industrial automation, electrical applications, and renewable energy industries.
ALPHA WIRE PPC7SL080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Slate (RAL 7001)
- Protection Class: IP68
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: PG according to DIN 40430
- Thread Sizes: PG7, PG9, PG11, PG13, PG16, PG21, PG29
- Clamping Range: 30-65 mm (PG7), 40-80 mm (PG9), 5.0-10.0 mm (PG11), 60-120 mm (PG13), 10-14 mm (PG16), 130-180 mm (PG21), 18-25 mm (PG29)
- Thread Lengths vary by size, typically between 8 mm and 11 mm
- Protection Standards: UL 514, CSA C22.2
Buy the Alpha Series PPC Cable Gland: PPC7SL080
Order the Alpha PPC7SL080 cable gland online now to benefit from superior environmental protection, high-quality polyamide construction, and compatibility with various industrial applications. Designed for easy installation with robust rubber seals and certified to UL and CSA standards, this waterproof cable gland ensures a secure and dustproof connection for demanding electrical and automation setups. Its IP68 rating guarantees water ingress protection, making it ideal for outdoor and harsh environments. Purchase online today for fast delivery and secure sealing solutions, suitable for renewable energy, automation, and industrial electrical systems.
Get Alpha Series PPC7SL080 today—built for reliable cable sealing and industrial durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE PPC7SL080?
You can click on the BUY or RFQ button to purchase PPC7SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PPC7SL080?
You can download the PPC7SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PPC7SL080?
ALPHA WIRE
