ALPHA WIRE PPS13BK080 Cable Gland

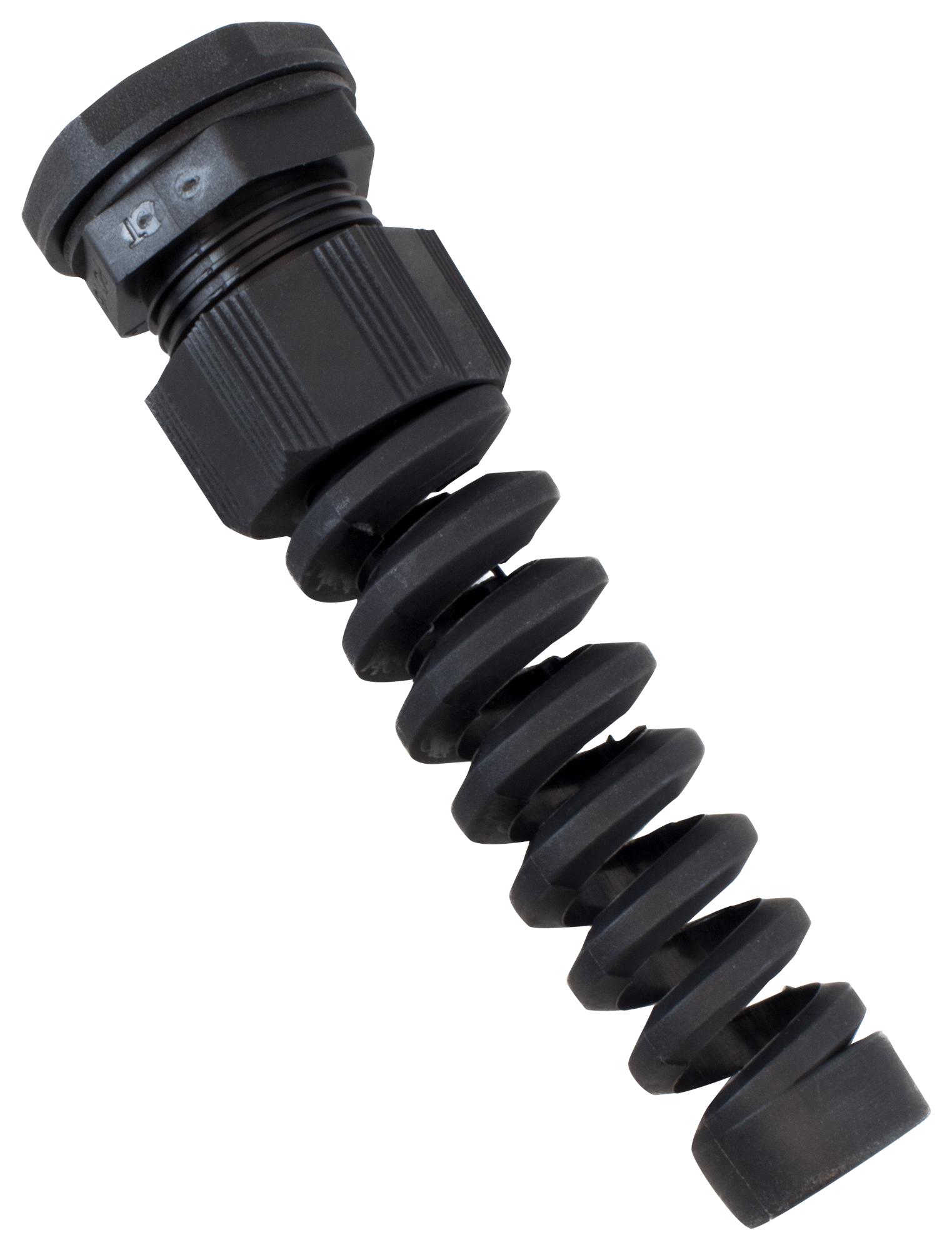

The PPS13 BK080 Alpha Fit® Flexible Spiral Cable Gland provides reliable cable strain relief and environmental sealing. Constructed from high-strength polyamide 6 with a black finish, it resists dust, dirt, and sand, ensuring watertight protection according to IP68 standards. The gland includes a locknut and gasket for secure mounting and features rubber seals that guard against water ingress. Rated for IP68 at 5 bar for 30 minutes and IP66, it is UL listed 514, CSA certified C22.2, and rated UL94V-2 flammability. Operating effectively from -20°C to +100°C permanently, and -30°C to +150°C intermittently, it suits industrial automation, electrical installations, and renewable energy applications.
ALPHA WIRE PPS13BK080 Cable Gland Specifications:
- Material: Polyamide 6 (Black finish)
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Certifications: UL Listed 514, CSA Certified C22.2
- Thread Types: PG7, PG9, PG11, PG13.5, PG16
- Protection Against Dust, Dirt, Sand, Water Ingress
- Includes: Locknut and gasket for secure fitting
- Certification Standards: UL, CSA
- Application Areas: Industrial automation, electrical systems, renewable energy
Buy the Alpha Series Cable Gland: PPS13BK080
Purchase the Alpha Series PPS13BK080 flexible spiral cable gland online today to ensure secure, durable, and water-resistant cable management solutions. This high-quality polyamide 6 gland offers excellent environmental sealing, rated IP68 for full water ingress protection, and includes a locknut and gasket for easy installation. Certified by UL and CSA standards, it is suitable for industrial automation, electrical wiring, and renewable energy projects. With temperature resistance from -30°C to +150°C and high-strength construction, this gland guarantees long-lasting reliability in demanding environments.
Get Alpha Series PPS13BK080 flexible spiral cable gland today—built for reliable cable management and environmental protection in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE PPS13BK080?
You can click on the BUY or RFQ button to purchase PPS13BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PPS13BK080?
You can download the PPS13BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PPS13BK080?
ALPHA WIRE
