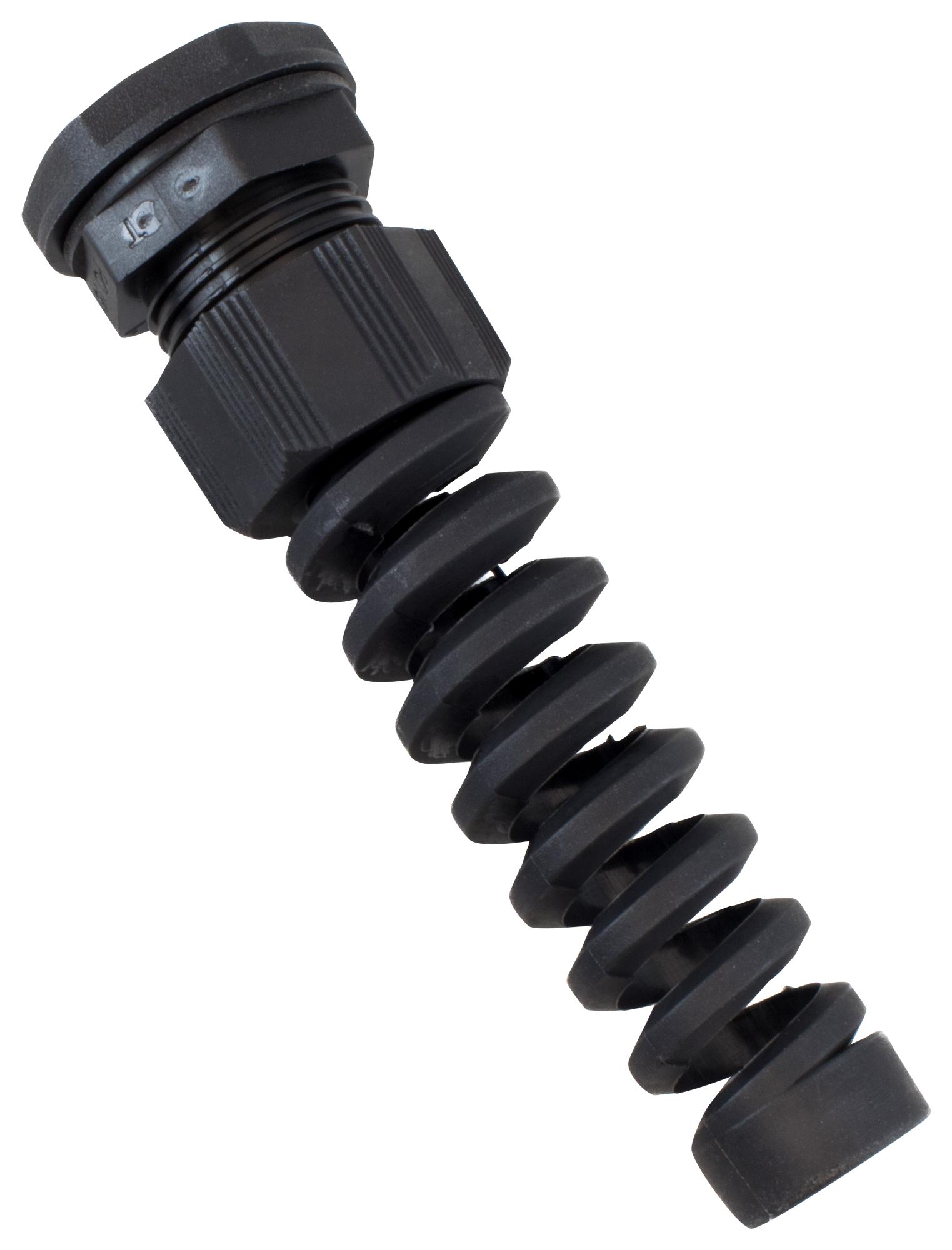

ALPHA WIRE PPS16BK080 Cable Gland
The PPS16 BK080 Alpha Fit® Flexible Spiral Design PG Cable Gland provides excellent cable strain relief and environmental protection. Constructed from durable polyamide 6 in black, it features high-quality rubber seals to prevent water, dirt, and dust ingress, complying with IP68 waterproof standards rated for 5 bar for 30 minutes, and IP66. The gland includes a locknut and gasket, ensuring a secure fit suitable for industrial automation, renewable energy, and electrical applications. It is UL listed 514, CSA certified C22.2, with flammability rating UL94V-2, functioning within -20°C to +100°C permanently, and -30°C to +150°C intermittently.
ALPHA WIRE PPS16BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL94V-2
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: PG according to DIN 40430
- Thread Size: PG16
- Clamping Range: 100-140 mm
- Thread Length: 22 mm
- Outer Diameter: 31.1 mm
- Spanner Width: 27 mm
- Max Height: 31.1 mm
- Certifications: UL 514 Listed, CSA C22.2 Certified
Buy the Buy Alpha Cable Glands Part Number PPS16BK080 Online
Enhance your electrical installations with the Alpha Series PPS16 BK080 cable gland, designed for rugged industrial environments. Made from high-quality polyamide 6, it features superior sealing capabilities with rubber seals to guard against water and dust ingress, meeting IP68 waterproof standards for 5 bar pressure for 30 minutes, and IP66. The gland includes a locknut and gasket for a complete, secure installation. UL listed and CSA certified, it operates efficiently within a temperature range of -20°C to +100°C permanently and -30°C to +150°C intermittently. Purchase online today for dependable performance and easy installation.
Order your Alpha Series PPS16 BK080 waterproof cable gland today and ensure reliable environmental protection for your electrical and automation projects.
