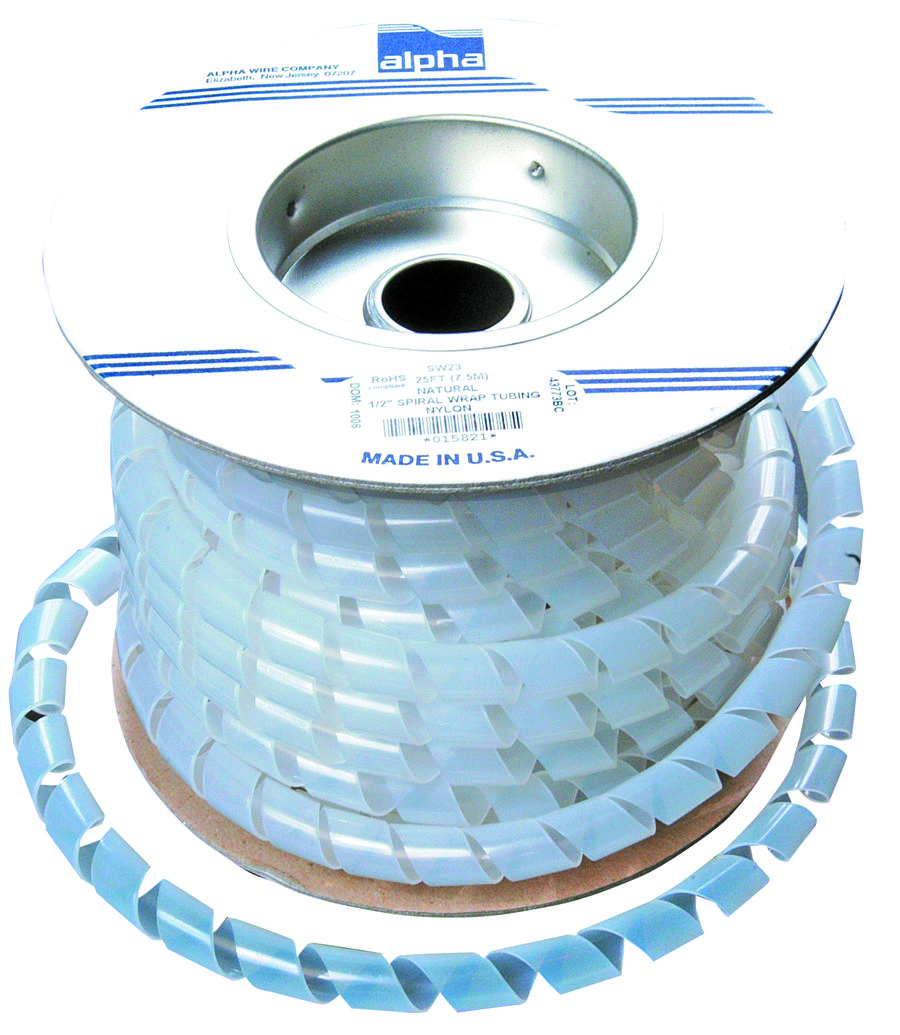

ALPHA WIRE SW11WH005 spiral wrap tubing
The SW11 WH005 spiral wrap tubing is made of polyethylene, ideal for wire harnessing, cable management, and bundling in industrial environments. It features a flexible, flame-retardant design with a 0.375-inch pitch, right-hand direction, and withstands temperatures from -20°C to +80°C. This tubing wraps snugly around wires, providing secure protection without tools, and includes breakout openings for easy access. Available in various lengths, it complies with RoHS2 and REACH standards, ensuring safety and environmental friendliness for efficient electrical installations.
ALPHA WIRE SW11WH005 spiral wrap tubing Specifications:
- Material: Polyethylene
- Color: White
- Flammability: Flame Retardant
- Outside Diameter: 0.250" +/- 0.020"
- Inside Diameter: 0.160" (Nominal)
- Wall Thickness: 0.045" (Nominal)
- Pitch: 0.375" (Nominal)
- Pitch Direction: Right Hand
- Temperature Range: -20°C to +80°C
- Maximum Tensile Strength: 1300 PSI
- Packaged Lengths: 25 ft, 100 ft, 500 ft
- Packaging: Up to 3 lengths, minimum 10 ft each
- Compliance: RoHS2, REACH
- Application: Wire harnessing, cable bundling, industrial wiring
Buy the Alpha Wire SW11– Reliable Spiral Wrap Tubing for Industrial Applications
Enhance your cable management with Alpha Wire spiral wrap tubing, designed for durability, flexibility, and safety. Made from flame-retardant polyethylene, it wraps securely around wires, providing protection and organization. Available in multiple lengths, it offers simplified installation with breakout openings for easy access. With RoHS2 and REACH compliance, this tubing is suitable for industrial environments, ensuring safety and environmental standards are met. Invest in reliable wiring solutions online today and keep your projects organized and compliant.
Order your Alpha Wire SW11 spiral wrap tubing today and ensure secure, flexible wire harnessing for your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE SW11WH005?
You can click on the BUY or RFQ button to purchase SW11WH005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part SW11WH005?
You can download the SW11WH005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of SW11WH005?
ALPHA WIRE
