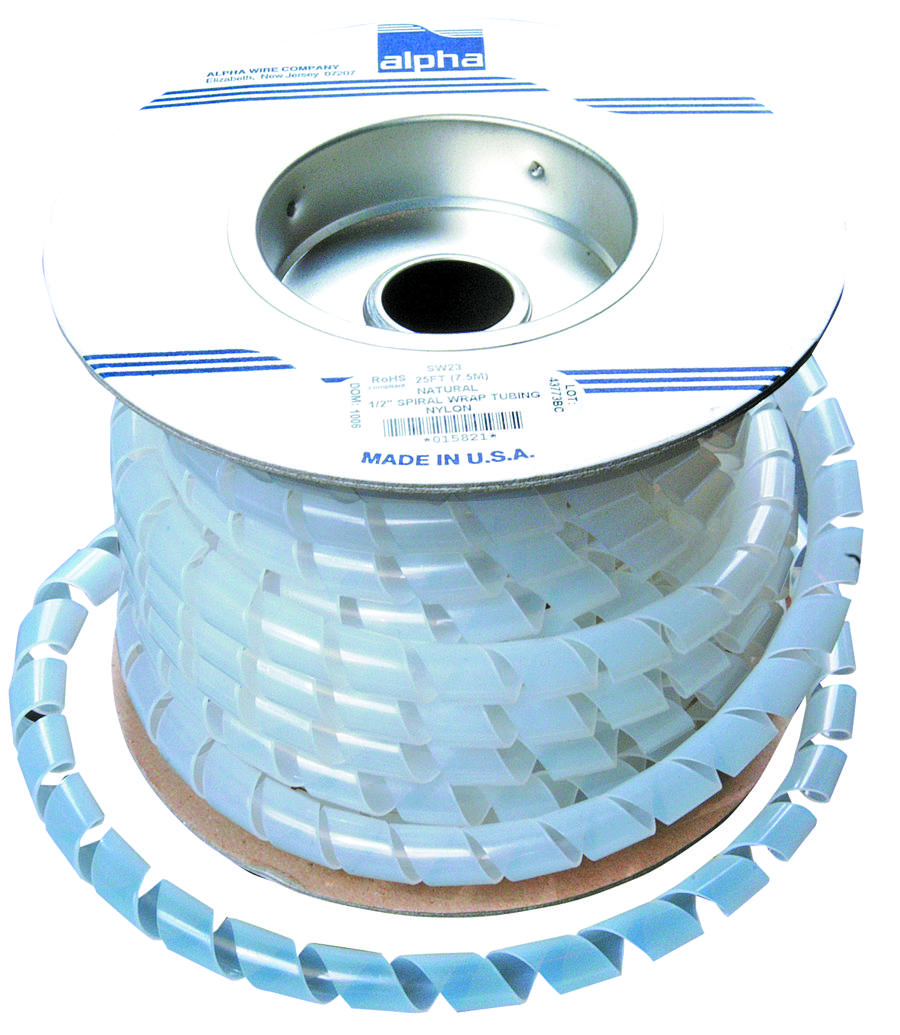

ALPHA WIRE SW22NA008 spiral wrap tubing
The SW22 NA008 nylon spiral wrap tubing effectively organizes and bundles wires and cables in industrial settings. Designed for easy installation, it wraps tightly around wires while remaining flexible and durable, even around sharp edges. Its self-extinguishing properties enhance safety, and the tubing features a right-hand pitch with a pitch of 0.438 inches. Made from flame-retardant nylon, it supports environmental compliance with RoHS 2 and REACH regulations. Available in 25 or 100-foot lengths, it simplifies wire harnessing and protects cables against abrasion and damage.
ALPHA WIRE SW22NA008 spiral wrap tubing Specifications:
- Material: Nylon
- Color: Natural
- Flammability: Self Extinguishing
- Outside Diameter: 0.375 inches ± 0.020 inches
- Inside Diameter: 0.305 inches Nominal
- Wall Thickness: 0.035 inches Nominal
- Pitch: 0.438 inches Nominal
- Pitch Direction: Right Hand
- Temperature Rating: -40°C to +121°C
- Compliance: RoHS 2, REACH
- Packaging: 25 ft or 100 ft lengths
- Maximum Length per package: 3 pieces, minimum 10 ft each
- Supported Certifications: EU Directive 2011/65/EU, Compliance confirmed via manufacturer
- Durability: Resistant to abrasion, flexible around sharp edges
- Tensile Strength: 12,000 PSI
- Application: Wire harnessing, cable protection, bundling
Buy the Alpha Wire SW22 – Reliable Spiral Wrap for Industrial Applications
Purchase the Alpha Wire SW22 nylon spiral wrap tubing online today for efficient wire organization, durable cable protection, and safety compliance. Designed for easy installation and flexible use, this tubing maintains its resilience around sharp edges and provides flame-retardant safety features. Available in 25 or 100-foot lengths, it simplifies your wiring projects with high tensile strength and environmental compliance, ensuring robustness and safety. Order now to enhance your industrial wiring management efficiently and reliably.
Get Alpha Wire SW22 today—built for precision wire organization and long-lasting durability in industrial settings.
Frequently Asked Questions
Where can I buy ALPHA WIRE SW22NA008?
You can click on the BUY or RFQ button to purchase SW22NA008 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part SW22NA008?
You can download the SW22NA008 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of SW22NA008?
ALPHA WIRE
