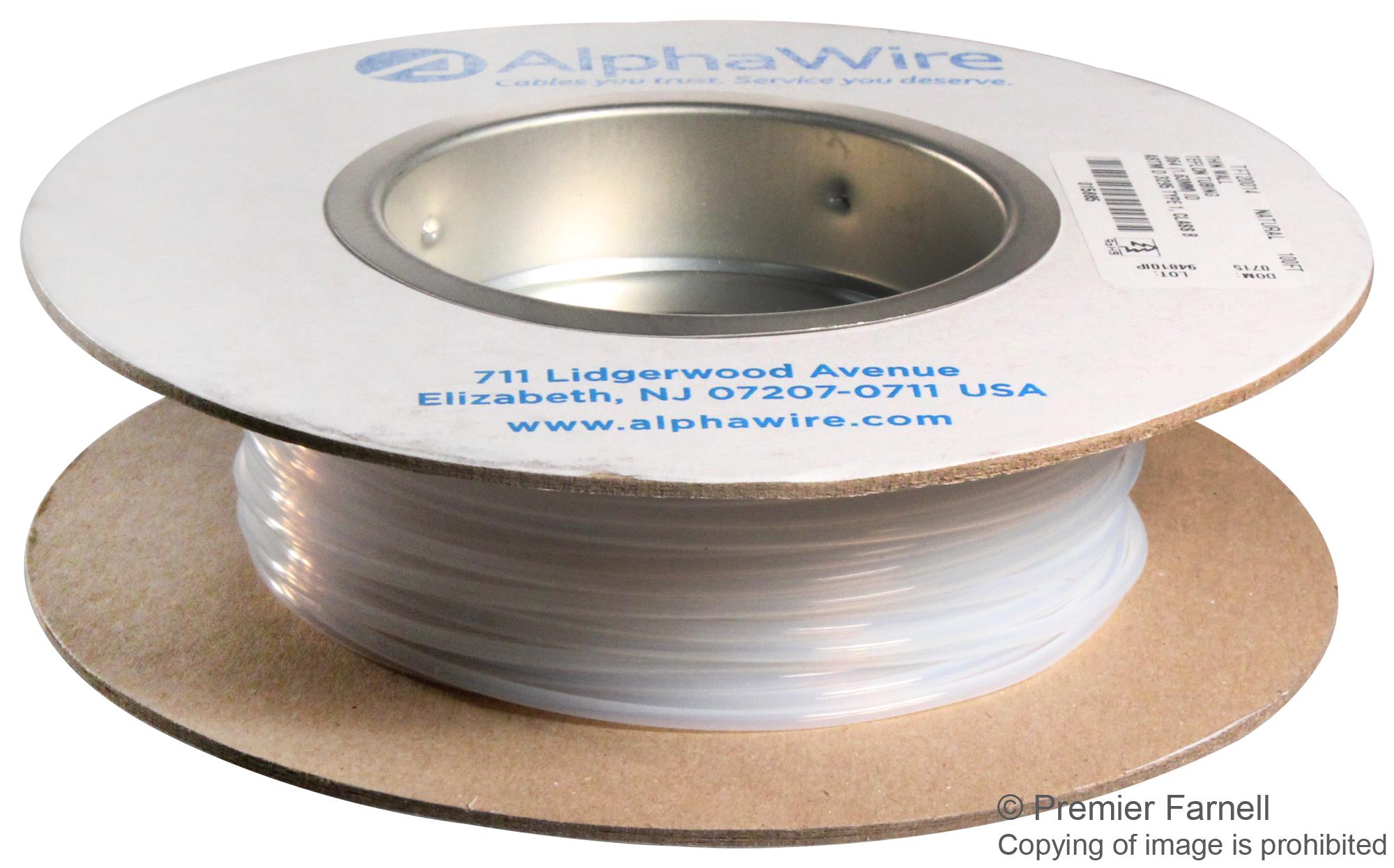

ALPHA WIRE TFT20014NA005 Flexible PTFE Tubing
The TFT20014 NA005 is a non-shrinkable, flexible, thin-wall PTFE tubing designed for wire and cable routing. It provides excellent protection against flames and chemicals, making it ideal for enhancing the reliability of cable harnesses in demanding conditions. This tubing offers high temperature resistance, exceptional abrasion resistance, and superior dielectric properties, all while maintaining flexibility across a wide temperature range. It features a nominal wall thickness of 0.012 inches, a minimum tensile strength of 3,000 psi, a maximum specific gravity of 2.18, and a minimum dielectric strength of 1,400 V/mil. Suitable for safety and industrial applications, it ensures durable insulation and protection for various wire and cable installations.
ALPHA WIRE TFT20014NA005 Flexible PTFE Tubing Specifications:
- Nominal Wall Thickness: 0.012 inches
- Minimum Tensile Strength: 3000 psi
- Maximum Specific Gravity: 2.18
- Minimum Dielectric Strength: 1400 V/mil
- Temperature Resistance: -75°C to 260°C
- Chemical Resistance: Excellent against flames and chemicals
- Electrical Properties: Dielectric constant 21, Volume Resistivity 1x10^18 ohm-cm
- Environmental Compliance: RoHS, REACH, California Proposition 65 compliant
- Materials: PTFE, non-shrinkable, flexible, thin-wall
- Applicable Standards: ASTM D3295, ASTM D638, ASTM D876, IEC 250
Buy the Buy Alpha Wire Part Number TFT20014NA005 Online
Purchase the Alpha Wire SeriesTFT20014 NA005 online today and enjoy high-quality, flexible, non-shrinkable PTFE tubing designed for demanding wire and cable applications. With excellent heat, chemical, and flame resistance, this tubing ensures long-lasting protection and insulation in industrial, safety, and aerospace environments. Its superior dielectric properties and wide temperature range make it ideal for critical wire routing and harnessing. Secure your order now to benefit from fast delivery and trusted quality, ensuring your projects maintain optimal performance under harsh conditions.
Order your Alpha Wire SeriesTFT20014 NA005 for durable, high-temperature PTFE tubing today and ensure reliable insulation for your critical wire and cable applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE TFT20014NA005?
You can click on the BUY or RFQ button to purchase TFT20014NA005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part TFT20014NA005?
You can download the TFT20014NA005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of TFT20014NA005?
ALPHA WIRE
