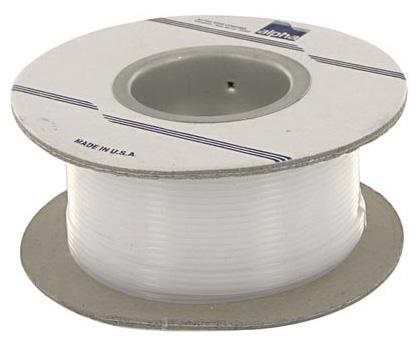

ALPHA WIRE TFT20015NA001 PTFE conduit
This high-performance PTFE flexible conduit, part number TFT-200-15, is designed for demanding industrial environments. Made from non-shrinkable, RoHS 2 compliant PTFE material, it features a natural color, wall thickness of 0.057 to 0.065 inches, and excellent electrical and chemical properties. With a temperature range from -75°C to 260°C, this conduit offers high dielectric strength, volume resistivity of 1x10^18 ohm-cm, and tensile strength of 3000 psi. Suitable for applications requiring chemical resistance, high mechanical durability, and compliance with safety standards, it ensures reliable cable protection and insulation in challenging scenarios.
ALPHA WIRE TFT20015NA001 PTFE conduit Specifications:
- Material: PTFE, non-shrinkable
- Color: Natural
- Wall Thickness: 0.057 to 0.065 inches
- Temperature Range: -75°C to 260°C
- Tensile Strength: 3000 psi, Min ASTM D638
- Elongation: 200%, Min ASTM D638
- Specific Gravity: 2.18, Max ASTM D792
- Dielectric Strength: 1400 V/mil, Min ASTM D876
- Volume Resistivity: 1x10^18 ohm-cm, Min ASTM D876
- Water Absorption: 0.01%, Max ASTM D570
- Certifications: RoHS 2 Compliance, Meets ASTM D3295-81a, AMS 3655
- Chemical Resistance: No corrosion after 16 hours at 0°C, Pass resistance test
- Lead Free: Yes
Buy the Alpha Wire TFT-200-15 – Reliable PTFE Conduit for Industrial Applications
Enhance your industrial setup with the Alpha Wire PTFE conduit, part number TFT-200-15, crafted from high-quality, RoHS compliant PTFE material. With exceptional chemical and temperature resistance, this flexible conduit maintains integrity from -75°C to 260°C, protecting cables in challenging environments. Its natural color and non-shrinkable construction make it suitable for demanding applications requiring high dielectric strength and durability. Purchase online today to secure a reliable, compliant, and durable solution for your cable management needs, ensuring safety and performance in your operations.
Order your Alpha Wire TFT-200-15 high-performance PTFE conduit today and ensure your industrial projects benefit from reliable, chemical-resistant cable protection.
Frequently Asked Questions
Where can I buy ALPHA WIRE TFT20015NA001?
You can click on the BUY or RFQ button to purchase TFT20015NA001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part TFT20015NA001?
You can download the TFT20015NA001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of TFT20015NA001?
ALPHA WIRE
