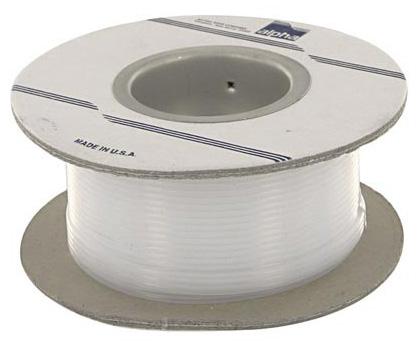

ALPHA WIRE TFT20019NA001 PTFE Insulator
This PTFE T type insulator offers excellent electrical insulation and thermal stability, with a temperature range from -75°C to +260°C. Made from non-shrinkable fluoropolymer, it features a natural color and conforms to ASTM D3295-81a Type, Class B standards. With a wall thickness between 0.036 and 0.042 inches, it provides reliable mechanical and electrical performance. Its properties include a tensile strength of 3000 psi, elongation of 200%, dielectric strength of at least 1400 V/mil, and excellent resistance to water and corrosion. Suitable for demanding electrical insulation applications requiring high purity and stability.
ALPHA WIRE TFT20019NA001 PTFE Insulator Specifications:
- Construction: T Type, Non-shrinkable PTFE
- Wall Thickness: 0.036 - 0.042 inches
- Color: Natural
- Standards: ASTM D3295-81a Type, Class B; AMS 3655
- Temperature Range: -75°C to +260°C
- Tensile Strength: 3000 psi, Min ASTM D638
- Elongation: 200%, Min ASTM D638
- Specific Gravity: 2.18, Max ASTM D792
- Dielectric Strength: 1400 V/mil, Min ASTM D876
- Volume Resistivity: 1x10^18 ohm-cm, Min ASTM D876
- Water Absorption: 0.01%, Max ASTM D570
- Corrosion Resistance at 0°C for 16 hours: No corrosion
- RoHS & REACH Compliant; Lead Free
- Flexible and resistant to chemicals, suitable for high-performance electrical insulation
Buy the AlphaWire TFT-200-19 U+2013 Reliable PTFE Insulation for Industrial Applications
Purchase the AlphaWire Series TFT-200-19 PTFE insulator online now for superior electrical insulation at high temperatures. Designed with non-shrinkable fluoropolymer, it delivers excellent dielectric strength, thermal stability, and chemical resistance, ensuring optimal performance in demanding environments. Perfect for electrical and electronics applications requiring precise, durable insulating components. Easy to order through our secure online platform, this product guarantees quality, compliance with RoHS and REACH standards, and a reliable solution for industrial electrical insulation needs. Get yours today!
Order your AlphaWire Series TFT-200-19 high-temperature PTFE insulator today and ensure reliable electrical performance in your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE TFT20019NA001?
You can click on the BUY or RFQ button to purchase TFT20019NA001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part TFT20019NA001?
You can download the TFT20019NA001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of TFT20019NA001?
ALPHA WIRE
