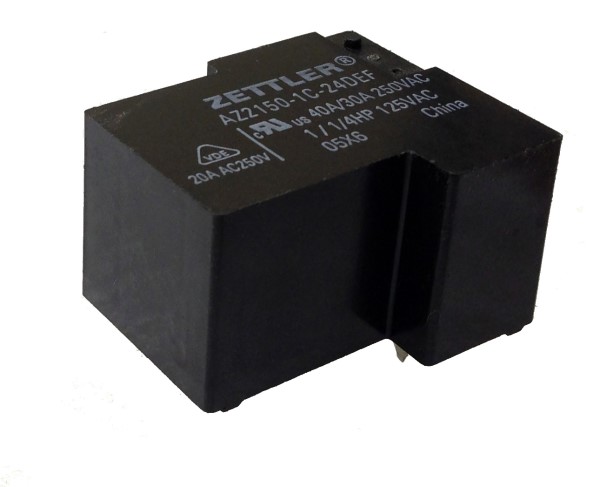

AMERICAN ZETTLER AZ215011C24D 50 Amp Power Relay
The AMERICAN ZETTLER AZ21501-1A-24D is a miniature power relay designed for demanding industrial applications. It offers a SPST (1 Form A) contact arrangement and is available with both AC and DC coil options to suit diverse circuit requirements. Key features include high switching power (up to 1200W or 7200VA), a maximum switched current of 50A, and the ability to operate in ambient temperatures ranging from -55°C to 100°C (Class B). The relay's epoxy sealed versions provide enhanced protection against environmental factors, while its UL, CUR certification ensures compliance with industry standards. It is commonly used in power control circuits, lighting systems, and other applications requiring reliable high-current switching.
AMERICAN ZETTLER AZ215011C24D 50 Amp Power Relay Specifications:
- Contact Arrangement: SPST (1 Form A)
- Ratings UL, CUR TÜV: Max. switched power: 1200W or 7200VA, Max. switched current: 50A (Form A), Max. switched voltage: 300VAC, 110VDC
- Material: Silver cadmium oxide, silver tin oxide
- Resistance: < 50 milliohms initially
- Power At Pickup Voltage DC: 506mW (30/40A), 844mW (50A)
- Power At Pickup Voltage AC: 1.4VA
- Max. Continuous Dissipation DC: 1.7W at 20°C
- Max. Continuous Dissipation AC: 2.7VA at 20°C
- Max. Temperature: Max. 130°C (266°F) Class B, Max. 155°C (311°F) Class F
- Life Expectancy Mechanical: Minimum operations: 1 x 10^7
- Life Expectancy Electrical: 5x 10^4 at 40A 250VAC
- Operate Time: 15 msec max.
- Release Time: 10 msec max.
- Dielectric Strength: 1500Vrms contact to contact, 2500Vrms contact to coil
- Insulation Resistance: 1000 megohms min. at 20°C, 500VDC, 50% RH
- Dropout DC: > 10% of nominal coil voltage
- Dropout AC: > 30% of nominal coil voltage
- Ambient Temperature Operating: -55°C to 100°C (Class B)
- Ambient Temperature Storage: -55°C to 155°C (Class F)
- Vibration: 0.06" DA at 10–55Hz
- Shock: 20g
- Enclosure: P.B.T. polyester
- Terminals: Tinned copper alloy, P.C.
- Max. Solder Temp.: 270°C
- Max. Solder Time: 5 seconds
- Max. Solvent Temp.: 80°C
- Max. Immersion Time: 30 seconds
- Weight: 30 grams
