AMERICAN ZETTLER AZ7432A110DE Industrial Control Relay
This general-purpose relay features a 110 VDC coil voltage, 10 amp switching capacity, and 2 Form A contacts in a DPST configuration. It offers resistive load ratings up to 250 VAC at 8 A and includes both AC and DC coil options. The relay is designed for PCB mounting with a compact, lightweight construction of 16 grams. It provides high dielectric strength of 5000 Vrms, a minimum mechanical life of 10 million operations, and electrical life of 100,000 cycles at rated load. Suitable for industrial automation and control applications, it meets UL, VDE, and other safety standards to ensure reliable performance.
AMERICAN ZETTLER AZ7432A110DE Industrial Control Relay Specifications:
- Coil Voltage: 110 VDC
- Contact Arrangement: DPST (2 Form A)
- Contact Rating: 10 A at 250 VAC resistive load
- Maximum Switched Power: 240 W or 2500 VA
- Maximum Switched Voltage: 150 VDC or 400 VAC
- Contact Resistance: < 50 milliohms
- Material: Silver cadmium oxide, silver tin oxide, or silver nickel (gold plating available)
- Dielectric Strength: 5000 Vrms coil to contact, 3000 Vrms between contact sets
- Life Expectancy: Mechanical 10 million operations, Electrical 100,000 cycles
- Operate Time: 7 ms, Release Time: 4 ms (typical)
- Ambient Temperature Range: -40°C to 100°C (operation), -40°C to 130°C (storage)
- Enclosure: PBT polyester, Tinned copper alloy terminals
- Weight: 16 grams
- Standards: UL, VDE, CSA certified

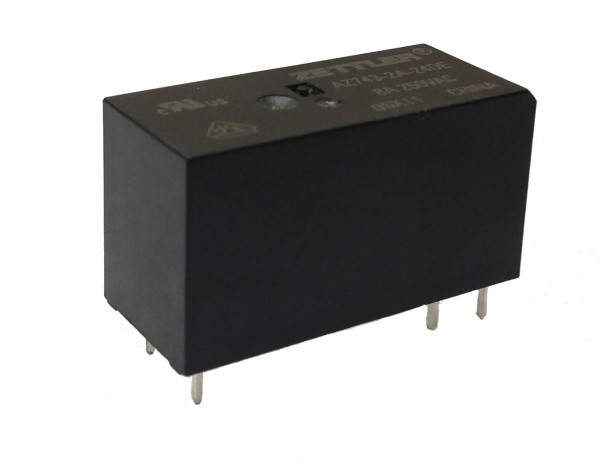

Buy the Buy AZETTLER AZ743110DE Part Number AZ743-2A-110DE Online
Experience the superior reliability and performance of this industrial control relay, featuring a 110 VDC coil and 10A switching capacity. Designed for PCB mounting, it provides high dielectric strength, low contact resistance, and durable construction suitable for demanding automation and control applications. With UL, VDE, and CSA certification, this relay ensures safety and standards compliance. Easy to connect and operate, it’s ideal for replacing older relays, supporting automation upgrades, or integrating into complex electrical systems for seamless, dependable operation.
Order your AZETTLER SeriesAZ743110DE relay today and enhance your automation projects with reliable, high-current switching performance.
Frequently Asked Questions
Where can I buy AMERICAN ZETTLER AZ7432A110DE?
You can click on the BUY or RFQ button to purchase AZ7432A110DE from an authorized AMERICAN ZETTLER distributor.
How do I troubleshoot issues or seek technical support for part AZ7432A110DE?
You can download the AZ7432A110DE datasheet or visit the AMERICAN ZETTLER website for support.
Who is the manufacturer of AZ7432A110DE?
AMERICAN ZETTLER
