Amphenol Aerospace 165151002 Miniaturized Standard Connector
Amphenol 67 and 165 Series connectors are miniaturized, environmentally resistant cylindrical connectors designed for light to medium weight applications. They offer a quick, positive, stainless steel bayonet coupling and operate effectively across a wide temperature range (-67°F to +257°F). Available with various customer options including unitized back end grommets, potting, sealing clamps, and vise action strain relief, these connectors are suitable for diverse industrial applications. Constructed with high-grade aluminum and stainless steel components, they provide durability and reliability, meeting or exceeding MIL-C-5015 requirements. UL approved with file E115497.
Amphenol Aerospace 165151002 Miniaturized Standard Connector Specifications:
- Voltage Rating (Sea Level, Unsealed): 2000-2300 V-RMS
- Voltage Rating (Sea Level, Sealed): 2500-3000 V-RMS
- Voltage Rating (70,000 ft, Unsealed): 500-600 V-RMS
- Voltage Rating (70,000 ft, Sealed): 2500-3000 V-RMS
- Mechanical Spacing (Nominal): 0.034-0.046 inch
- Weight: Approximately half the weight of standard cylindricals
- Operating Temperatures: -67°F to +257°F
- Vibration Resistance: 10 to 2,000 cps at 20Gs
- Moisture Resistance: Exceeds MIL-C-5015 requirements with potting
- Shell Material: High grade aluminum with gray anodize finish
- Contact Material: Copper alloy gold over nickel plate
- Insert Material: Diallyl phthalate
- UL Approval: E115497

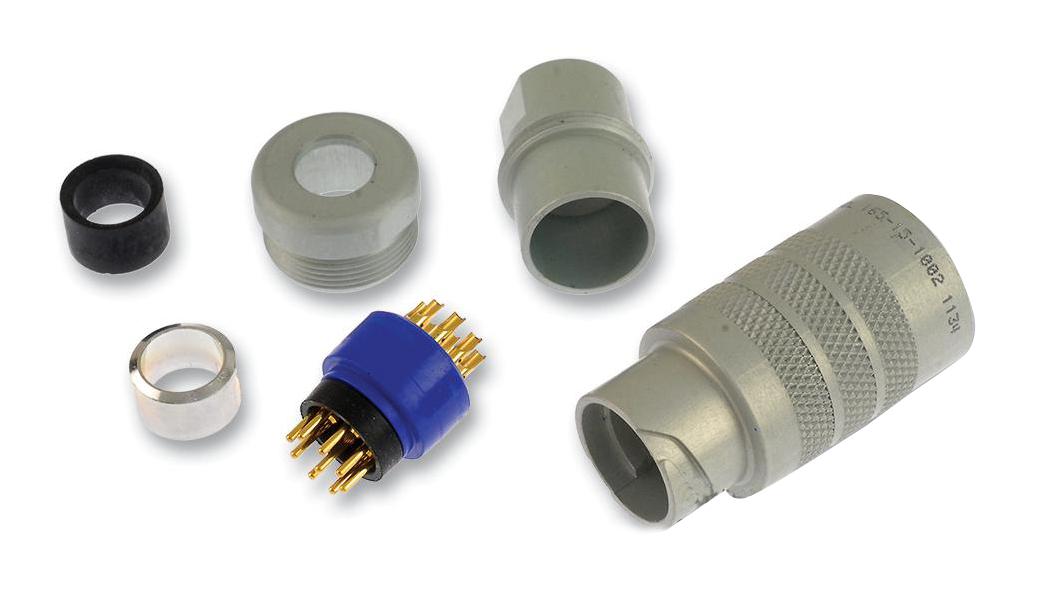

Buy the 165-15-1002 AMPHENOL AEROSPACE Miniaturized Standard Connector | myMectronic
Securely purchase the Amphenol 165-15-1002 connector and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Aerospace 165151002?
You can click on the BUY or RFQ button to purchase 165151002 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part 165151002?
You can download the 165151002 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of 165151002?
Amphenol Aerospace
