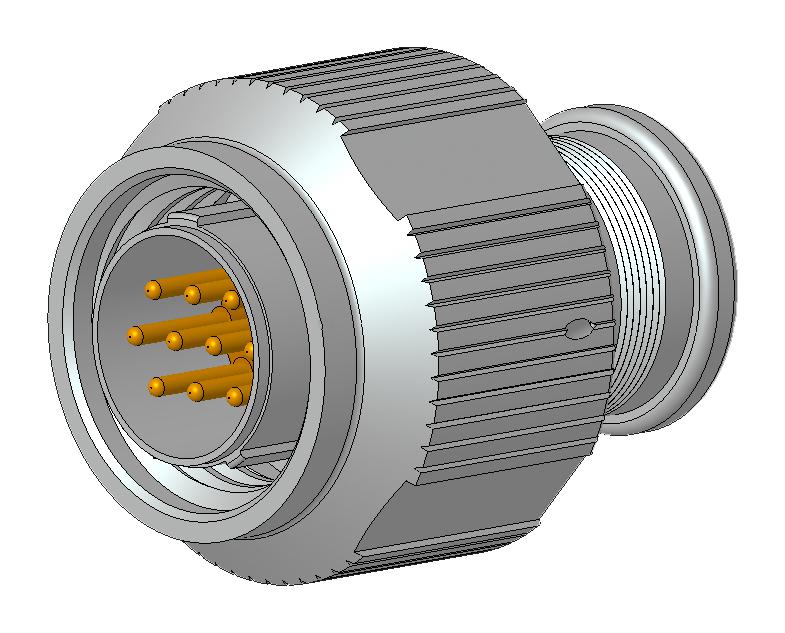

AMPHENOL AEROSPACE 2M80103616M1026PA High-Speed Data Connector
The 2M801 high-speed series of connectors is ideal for USB 3.0, eSATA, and other high-speed data bus applications where space is limited. Designed with fluoropolymer inserts optimized for high-speed performance, these connectors support multiple insert arrangements. They feature plugs with anti-decoupling or self-locking ratchet mechanisms and Dual-Start ACME threads, enabling full mating in just 1.5 turns. Available in two shell styles with an integral banding platform for direct EMI shielding termination or overmoulding. Rear threads support backshell and accessory attachment. Contact options include crimp, PC tail, and solder cup, suitable for avionics, satellite systems, and heads-up displays. They offer reliable high-data-rate performance within compact form factors.
AMPHENOL AEROSPACE 2M80103616M1026PA High-Speed Data Connector Specifications:
- Shell Styles: Two styles available with integral banding platform for EMI shielding or overmoulding
- Thread Type: Dual-Start ACME threads for full mating in 1.5 turns
- Insert Material: Fluoropolymer optimized for high-speed data transfer
- Contact Termination: Crimp, PC tail, and solder cup options
- Rear Threads: Support backshell and accessory attachment
- Applications: USB 3.0, eSATA, satellite, avionics, heads-up displays, in-flight entertainment
- Compatibility: Supports multiple insert arrangements, all standard 2M backshells and accessories
- Shell Materials: Olive Drab Zinc, Black Zinc Nickel, Passivated
- Suitable for high-data-rate protocols in constrained spaces
Buy the Amphenol Series 2M801 High-Speed Data Connector: Part Number 2M80103616M1026PA
Upgrade your high-speed data connections with the 2M801 series connectors, engineered for USB 3.0, eSATA, and demanding digital applications. Featuring fluoropolymer inserts for optimal performance, these connectors support multiple insert arrangements and various termination options including crimp, PC tail, and solder cup. The dual-start ACME threads ensure quick mating, while the integral banding platform allows for straightforward EMI shielding and overmoulding. Compact and versatile, the 2M801 series is perfect for small satellites, avionics, and heads-up displays, offering reliable, high-speed data transfer in tight spaces. Order online now for proven quality and performance.
Get Amphenol 2M801 dual-start high-speed connectors today—designed for reliable, fast data transfer in demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL AEROSPACE 2M80103616M1026PA?
You can click on the BUY or RFQ button to purchase 2M80103616M1026PA from an authorized AMPHENOL AEROSPACE distributor.
How do I troubleshoot issues or seek technical support for part 2M80103616M1026PA?
You can download the 2M80103616M1026PA datasheet or visit the AMPHENOL AEROSPACE website for support.
Who is the manufacturer of 2M80103616M1026PA?
AMPHENOL AEROSPACE
