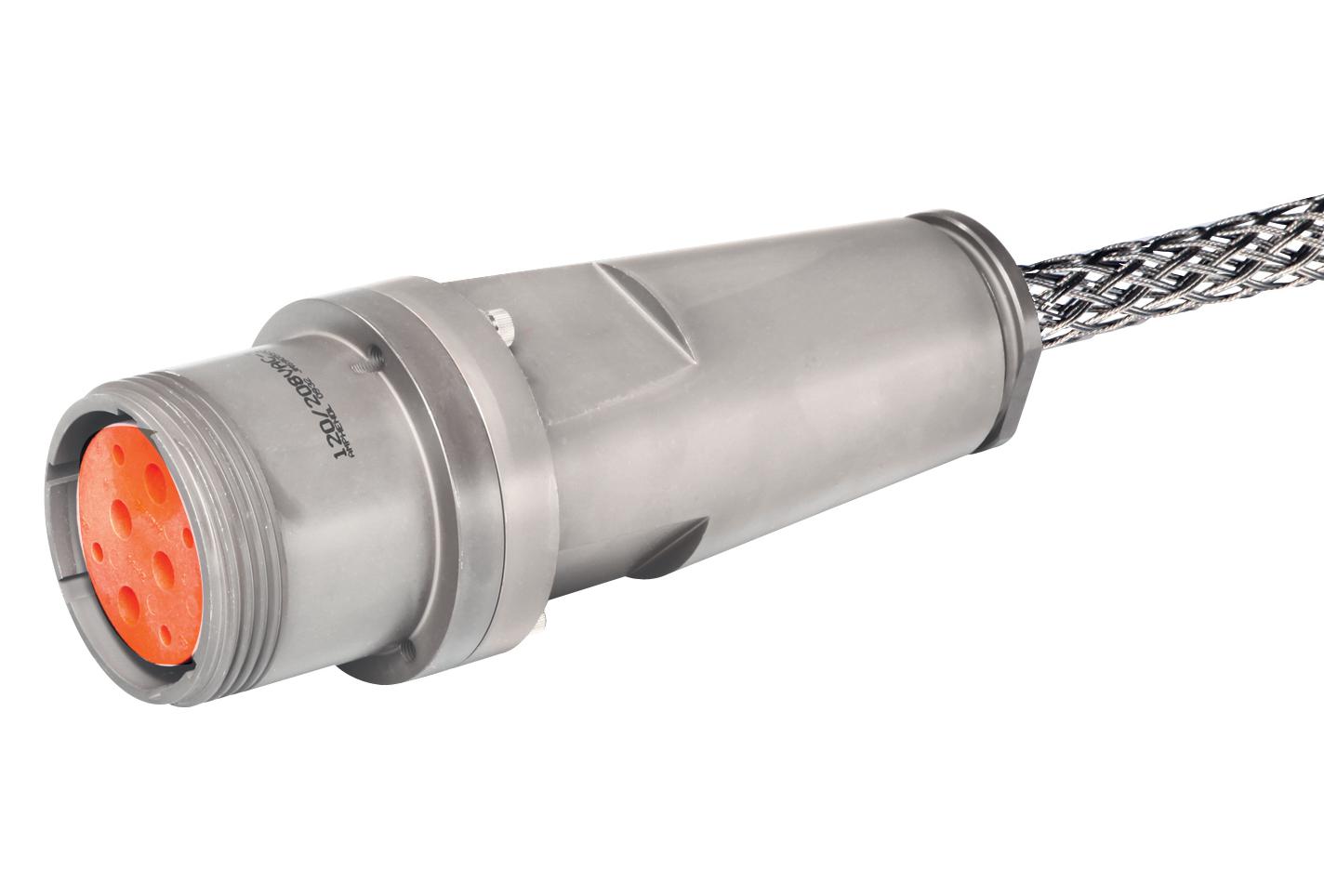

Amphenol Aerospace CL90556FS44412P Heavy Duty Electrical Connector
This high-performance electrical connector features a Durmalon finish, an environmentally friendly alternative to cadmium, providing protection against 500 hours of dynamic salt spray. It complies with modern standards by avoiding toxic materials like cadmium and hexavalent chromium. The connector's Durmalon coating offers corrosion resistance comparable to olive-drab cadmium plating, with durability tested for 500 mating cycles and excellent shell-to-shell conductivity. Additionally, the AP-93 plating on aluminum connectors exceeds 1000 hours of salt spray resistance, making it ideal for harsh environments. Designed for commercial, industrial, and military applications, this connector is a compatible and reliable solution for demanding electrical systems, supporting current ratings from 40 to 200 amps, conductor sizes from 6 to 4/0, and suitable for both DC and single/three-phase AC operations. It features automatic grounding, resistance to heat, moisture, vibration, high impact, and immersion. The design incorporates double stub coupling threads for quick, secure connections without cross-threading, and left-hand accessory threads to prevent cable twisting and accidental disassembly. Gaskets or O-rings ensure weather-tight sealing, making it an excellent drop-in replacement for existing connectors, fully compatible with MIL-DTL-22992 specifications.
Amphenol Aerospace CL90556FS44412P Heavy Duty Electrical Connector Specifications:
- Finish: Durmalon coating, environmentally friendly, corrosion resistant
- Salt spray protection: 500 hours dynamic salt spray; AP-93 aluminum exceeds 1000 hours
- Current Rating: 40 to 200 amperes
- Conductor Sizes: 6 to 4/0 AWG
- Compatibility: DC, single-phase AC, three-phase AC
- Features: Automatic grounding, heat, moisture, vibration, impact, immersion resistant
- Connection: Double stub coupling threads, left-hand accessory threads
- Sealing: Gaskets or “O” rings for weather tightness
- Standards: Fully compliant with MIL-DTL-22992 specifications
Buy the Amphenol Series Heavy Duty Connector: CL90556FS44412P
Purchase your Amphenol Heavy Duty Electrical Connector CL90556FS44412P online today to benefit from superior Durmalon corrosion resistance, salt spray protection exceeding 1000 hours, and a rugged design capable of handling up to 200 amps. Ideal for military, industrial, and demanding outdoor applications, this connector features quick, secure double stub coupling threads, weather-proof gasket seals, and automatic grounding for safety. Trust in the quality and durability of this MIL-DTL-22992 compliant component to keep your electrical systems reliable under extreme conditions.
Order your Amphenol Series Heavy Duty Connector CL90556FS44412P today and ensure reliable, corrosion-resistant performance in demanding environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace CL90556FS44412P?
You can click on the BUY or RFQ button to purchase CL90556FS44412P from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part CL90556FS44412P?
You can download the CL90556FS44412P datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of CL90556FS44412P?
Amphenol Aerospace
