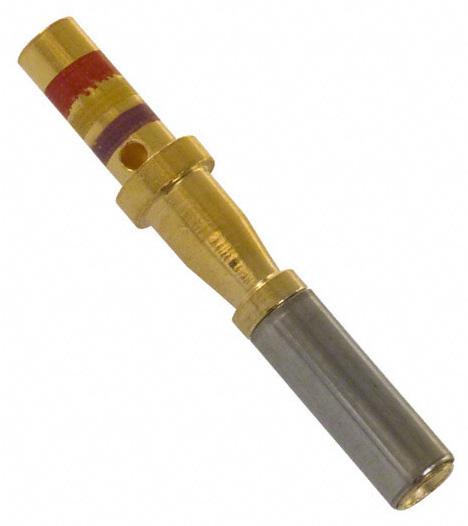

Amphenol Aerospace M390295115 Cylindrical Connector
The Miniature Cylindrical Connector series is designed for demanding environments, offering a range of medium-sized, environmentally resistant cylindrical connectors. These connectors feature three coupling styles—bayonet, threaded, and quick-disconnect—making them highly versatile for panel mount, box mount, and line-to-line applications, particularly in aerospace. They facilitate easy contact insertion and removal from the rear without damaging the front sealing area. Grommets are made from tear-resistant elastomer that withstands various fluids without degradation. The connector's design includes a lead-in chamfer and a hard face on the socket insert to accept bent pin contacts within specified limits. Key features include a five key/keyway system to prevent mismating and compatibility with most MIL-C-26500 bayonet couplings. They are rated for up to 600VAC (rms) at sea level and are suitable for industrial, defense, military, and aerospace applications.
Amphenol Aerospace M390295115 Cylindrical Connector Specifications:
- Operating Voltage: up to 600 VAC (rms) at sea level
- Environmental Sealing: Contact seals, silicone elastomer interface, shell and insert seals
- Coupling Styles: Bayonet, threaded, quick-disconnect
- Shell Material: Aluminum, stainless steel options
- Finish Options: Black anodized, cadmium, electroless nickel, passivated stainless steel
- Temperature Range: -65°C to +200°C
- Durability: Minimum 500 mating cycles
- Shock & Vibration: 100g shock, 10-2000 Hz vibration, 12 hours run
- Contact Sizes: 12, 16, 20, 22, 24, 28
- Contact Type: Crimp rear-release contacts (sizes 12, 16, 20)
- Ingress Protection: Environmental sealing with individual contact seals
- Grommets: Tear-resistant elastomer, fluid resistant, withstands various fluids
- Compatibility: MIL-C-26500, high temp, hermetic versions available
Buy the Amphenol M390295115 – Reliable Cylindrical Connectors for Industrial Applications
Secure your demanding applications with our high-performance cylindrical connector. Designed for aerospace, military, and industrial use, this medium-sized connector offers superior environmental resistance, easy rear contact removal, and multiple coupling styles—bayonet, threaded, and quick-disconnect. Rated for up to 600VAC and capable of enduring over 500 mating cycles, it features tear-resistant elastomer grommets and offers robust sealing against fluids and environmental hazards. Choose this versatile connector for reliable, easy-to-maintain interconnections in critical systems.
Buy Amphenol M390295115 now and experience unmatched reliability and performance in demanding aerospace, military, and industrial environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace M390295115?
You can click on the BUY or RFQ button to purchase M390295115 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part M390295115?
You can download the M390295115 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of M390295115?
Amphenol Aerospace
