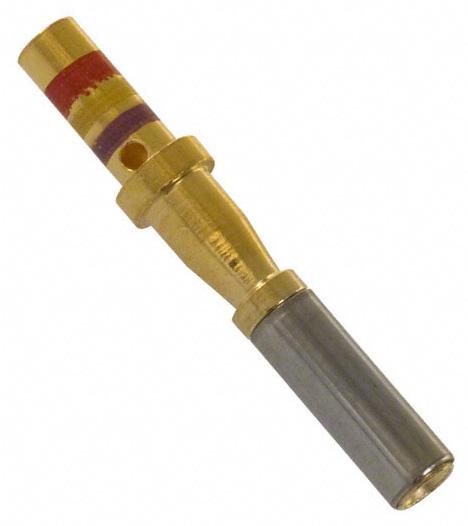

Amphenol Aerospace M390295116 cylindrical connector
The Miniature Cylindrical Connector series is designed for demanding environments, offering a compact and environmentally resistant solution suitable for panel, box, and line-to-line applications in various industries including aerospace, military, and industrial settings. These connectors feature three coupling styles—bayonet, threaded, and quick-disconnect—providing versatile interconnection options. The design allows for contact insertion and removal from the rear, preventing front-end damage and maintaining sealing integrity. Grommets are made of tear-resistant elastomer, resistant to a broad range of fluids. The connector's socket side includes a lead-in chamfer and a hard face to accommodate a bent pin contact within specified limits. Featuring a five key/keyway design, this connector prevents mismating and is compatible with most MIL-C-26500 bayonet coupling connectors. It is recommended for use at up to 600VAC (rms) at sea level.
Amphenol Aerospace M390295116 cylindrical connector Specifications:
- Operating Voltage: Up to 600 VAC (RMS) at sea level
- Environmental sealing includes contact seals, silicone elastomer interfacial seal, shell-to-shell seal, and insert-to-shell seal
- Grommets made of tear-resistant elastomer, resistant to broad range of fluids
- Contact insertion/removal from rear prevents front damage, maintains sealing
- Design features a five key/keyway system to prevent mismating, compatible with MIL-C-26500
- Shock and vibration resistance: 100g for 6ms sine shock; 12 hours of random vibration 10-2000Hz, 0.06in amplitude, 20g peak
- Operating temperature range: -65°C to +200°C
- Minimum durability: 500 mating cycles
- Includes crimp rear release contacts (sizes 12, 16, 20), conforming to MIL-C-39029 standards
- Implements triple-webbed grommet design for wide wire diameter compatibility
- Front face designed with lead-in chamfer and hard face for bent pin contact support
Buy the Amphenol M390295116 – Reliable Cylindrical Connector for Industrial Applications
Enhance your system reliability with the high-performance cylindrical connector designed for aerospace, military, and industrial uses. Featuring three coupling styles—bayonet, threaded, and quick-disconnect—these connectors provide flexible interconnection options suitable for panel, box, and line-to-line applications. With sealed construction, tear-resistant elastomer grommets, and rear contact insertion/removal, they ensure durability in harsh conditions. Compatible with MIL standards, supporting up to 600VAC (RMS), and rated for at least 500 mating cycles, these connectors are essential for demanding environments. Buy online today to benefit from proven reliability and versatile design options that meet the highest industry standards.
Order your Amphenol series M390295116 cylindrical connector today and give your projects the dependable quality they deserve, offering versatile coupling styles for demanding environments.
Frequently Asked Questions
Where can I buy Amphenol Aerospace M390295116?
You can click on the BUY or RFQ button to purchase M390295116 from an authorized Amphenol Aerospace distributor.
How do I troubleshoot issues or seek technical support for part M390295116?
You can download the M390295116 datasheet or visit the Amphenol Aerospace website for support.
Who is the manufacturer of M390295116?
Amphenol Aerospace
