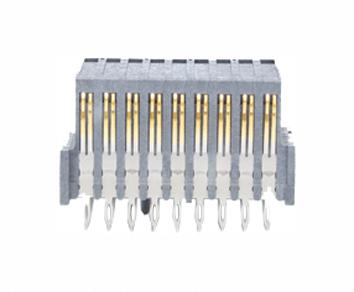

Amphenol Aerospace RVPXJE216EM2 High-Speed Military Connector
The R-VPX Evolution 2.0 connector supports high-speed military applications, including PCIe Gen 4 and 5, 100GBASE-KR4, Infiniband SDR/DDR/QDR, and serial RapidIO at 12.5Gbaud and 25Gbaud. It features a 16-position backplane design with a 32 Gb/s performance, ensuring fast data transfer. The connector uses a four-point contact system with smaller, compliant contacts for superior signal integrity. It complies with VITA 46.30 standards, is compatible with legacy VITA 46 connectors, and is built for rugged environments with durable gold and nickel finishes.
Amphenol Aerospace RVPXJE216EM2 High-Speed Military Connector Specifications:
- Supports PCIe Gen 4 and 5, 100GBASE-KR4, Infiniband SDR/DDR/QDR, serial RapidIO at 12.5Gbaud and 25Gbaud
- 16-position backplane with 32 Gb/s data transfer rate
- Four-point contact system with smaller, compliant contacts
- Contacts have a minimum of 50 microinches of gold in the contact area
- Contact finish includes tin-lead with a minimum of 50 microinches of nickel overall
- Interoperability with VITA 46.30 specification and existing VITA 46 connectors
- Designed for high reliability in harsh environments
- Physical contact area gold thickness: 50 microinches
- Overall contact plating: nickel, 50 microinches minimum
- Connector employs rugged, high-performance materials
- Compatible with legacy VITA standards and high-speed protocols
- Suitable for military, aerospace, and high-reliability systems
Buy the Amphenol Series EVO 2 High-Speed Military Connector: RVPXJE216EM2
Order the Amphenol RVPXJE216EM2 high-speed military connector online today for reliable performance in demanding environments. Designed for PCIe Gen 4 and 5, Infiniband, and RapidIO protocols, it features a 16-position backplane with a 32 Gb/s transfer rate, ensuring optimal data throughput. Built with durable gold and nickel finishes, this connector guarantees lasting performance in rugged conditions. Its four-point contact system offers superior signal integrity. Perfect for aerospace, defense, and industrial systems requiring high reliability and advanced connectivity. Buy online now for fast delivery and peace of mind.
Get Amphenol RVPXJE216EM2 today—built for high-speed military applications and rugged environments.
